Azbil Neosensor Series Specifications & Instructions

Azbil Neosensor Series Specifications & Instructions

Room temperature sensor, room humidity sensor, room temperature/humidity sensor

Advertisement

Quick Links

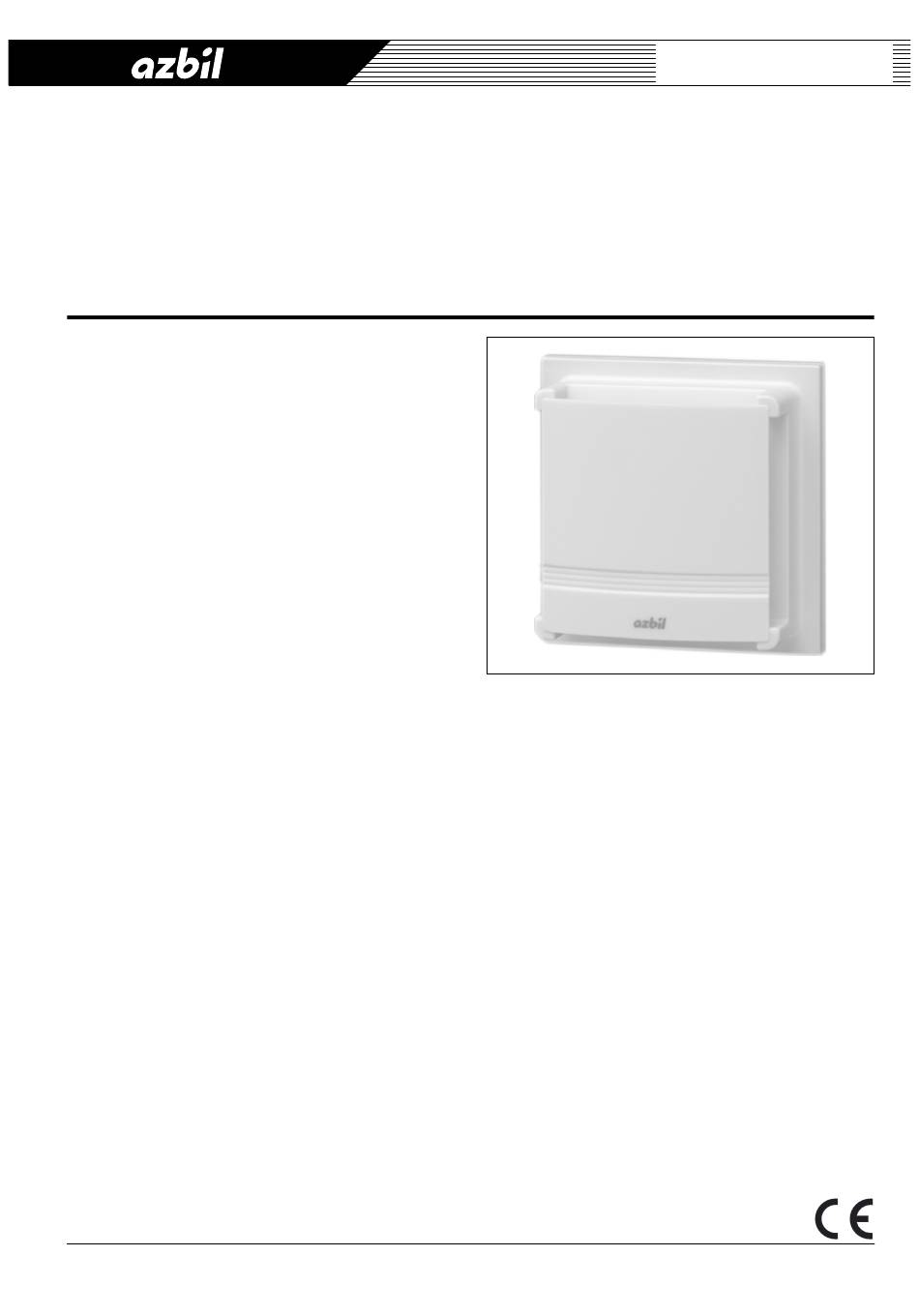

Room Temperature/Humidity Sensor
General

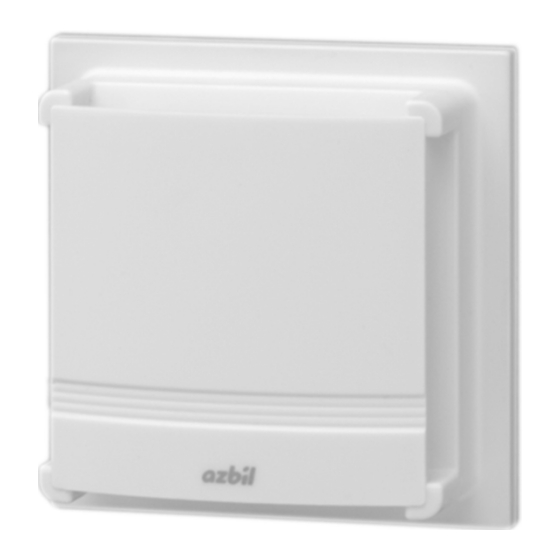

Neosensor is a series of electronic room sensors including
temperature sensor (Models TY7043, TY7053), humidity
sensor (Model HY7043), and temperature/humidity sensor
(Model HTY7043). Neosensor is coordinated in terms of
design and dimension with Neostat electronic room
temperature/humidity controller.
Platinum resistance temperature detector for temperature
sensing element and polymer capacitive detector (FP3
developed by Azbil Corporation) for humidity sensing
element enhance accuracy and reliability of Neosensor
sensing. Neosensor is thus suitable for various applications
such as commercial building air conditioning or other indoor
uses.
Note:
*
The specification data of the two-wire 4-20mA output model of
Neosensor is not included in this document.
following document.
AB-7051 Specifications/Instructions:
Neosensor (Two-Wire 4-20 mA Output Sensor)
Room Temperature Sensor (Model TY7043D),
Room Humidity Sensor (Model HY7043D),
Room Humidity/Temperature Sensor (Model HTY7043D)
Features
Wide temperature and/or humidity sensing range with
high accuracy.
Excellent long-term stability.
High environmental resistance.
Neosensor
Room Temperature Sensor
Room Humidity Sensor
Refer to the
Quick response and high repeatability.
Compact (thin) and lightweight.
CE Marking certified product:
The following models conform to all the applicable
standards of CE Marking.
- Model TY7043Z0P0X
- Model TY7053Z0P00
- Model HY7043 series
- Model HTY7043 series
1
AB-7050
Specifications/Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the Neosensor Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Azbil Neosensor Series

  • Page 1 Platinum resistance temperature detector for temperature ™ sensing element and polymer capacitive detector (FP3 developed by Azbil Corporation) for humidity sensing element enhance accuracy and reliability of Neosensor sensing. Neosensor is thus suitable for various applications such as commercial building air conditioning or other indoor uses.
  • Page 2 Azbil Corporation will not bear any responsibility for the results produced by the operators. Warnings and Cautions ...
  • Page 3 AB-7050 Model Numbers Base model Power Humidity Temperature Output Company Type — — Description number supply output output wiring logo HTY70 Room temperature/humidity sensor TY70 Room temperature sensor HY70 Room humidity sensor Neosensor Neosensor high sensitive type Fixed 24 V DC / 24 V AC No power required No humidity sensing 1 V DC to 5 V DC...
  • Page 4 AB-7050 Part Numbers of Optional Items Mount Neosensor with the following optional items (sold separately). Order necessary items. Item Part number/Model number Dedicated mounting kit Wall-direct mounting kit Part No. 83165803-001 Thermoplate mounting kit Part No. 83165803-011 Multi-Thermocase mounting kit Part No. 83165803-021 Auxiliary device Thermoplate for individual room Models QY1100C and QY1100D...
  • Page 5 AB-7050 Specifications Item Specification 0 °C to 60 °C Measuring range Temperature 0 %RH to 100 %RH (at 15 °C 35 °C) Humidity ± 0.3 °C (at 0 °C to 60 °C) Measuring accuracy Temperature (Pt100) * 1mA applied current, 0.15 m/s downflow for Models TY7043Z0P0X(-1), TY7053Z0P00(-1), and HTY7043 series ±...
  • Page 6 AB-7050 Dimensions: Neosensor with Wall-Direct Mounting Kit Neosensor Wall-direct mounting kit 38.5 16.5 Lead wires* Mounting surface Notes: *1 For wiring, secure more than 15 mm clearance inside the mounting surface when installing Neosensor with Wall-direct mounting kit. *2 The number of lead wires differs depending on the models. Note that the Pt100 temperature sensor model with modular connection has a modular jack instead of lead wires.
  • Page 7 AB-7050 Mounting plate Mounting screw (M3) ⌀4.2 mounting hole Mounting hole 66.7* Note: * Use JIS outlet box/box cover (JIS C8340:1999) with 66.7 mm mounting dimension. Figure 3. Dimensions (mm): Mounting plate of Wall-direct mounting kit Dimensions: Neosensor with Thermoplate Mounting Kit (on Thermoplate) Neosensor Thermoplate mounting kit Thermoplate...
  • Page 8 AB-7050 Neosensor high sensitive type Thermoplate mounting kit Thermoplate (optional) 12.5* Lead wires Mounting Thermoplate mounting kit surface Thermoplate Note: * For wiring, secure more than 12.5 mm clearance from the Thermoplate surface to the inside of the mounting surface when installing Neosensor with Thermoplate mounting kit.
  • Page 9 AB-7050 Dimensions: Neosensor (without the Cover) with Multi-Thermocase Mounting Kit (in Multi-Thermocase) Neosensor When installing Neosensor in the optional Multi-Thermocase, remove the cover of Neosensor. 72.8 Multi-Thermocase mounting kit 72.8 Multi-Thermocase mounting kit Lead wires* Note: * The number of lead wires differs depending on the models. Note that the Pt100 temperature sensor model with modular connection has a modular jack instead of lead wires.
  • Page 10 AB-7050 Installation  CAUTION Use the product under the operating conditions (temperature, humidity, power, vibration, shock, mounting direction,  atmospheric condition, etc.) as listed in the specifications. Failure to do so might cause fire or device failure.  Installation and wiring must be performed by qualified personnel in accordance with all applicable safety standards. Requirements for installation location IMPORTANT: ●...
  • Page 11 AB-7050 Installation steps: Neosensor directly on a wall with Wall-direct mounting kit 1) Attach the mounting plate of the Wall-direct mounting kit to the outlet box cover (JIS C8340:1999 Boxes and box covers for rigid metal conduits (mounting dimension: 66.7 mm)) on the mounting surface. 2) Attach the main unit of the Wall-direct mounting kit to the mounting plate.
  • Page 12 AB-7050 Installation steps: Neosensor on the Thermoplate for open wiring with Wall-direct mounting kit 1) Attach the mounting plate of the Wall-direct mounting kit to the Thermoplate for open wiring on the mounting surface. 2) Attach the main unit of the Wall-direct mounting kit to the mounting plate. (See Fig. 11.) 3) Connect the lead wires of Neosensor to the wires from the load.
  • Page 13 AB-7050 Installation steps: Neosensor on Thermoplate with Thermoplate mounting kit 1) Attach the mounting plate of Thermoplate to the outlet box cover (JIS C8340:1999 Boxes and box covers for rigid metal conduits (mounting dimension: 83.5 mm)) on the mounting surface. 2) Attach the main unit of Thermoplate to the mounting plate.
  • Page 14 AB-7050 Installation steps: Neosensor in Multi-Thermocase with Multi-Thermocase mounting kit 1) Attach the main unit of the Multi-Thermocase mounting kit to the device mounting plate of Multi-Thermocase. 2) Connect the lead wires of Neosensor to the wires from the load. Note: The number of the lead wires differs depending on the models.
  • Page 15 AB-7050 Cover removal Do not bend the humidity sensing element attached to the PCB board assembly. Otherwise, measuring accuracy may drop. To remove the cover: 1. Press the spring. Press the spring, located inside the top of the Neosensor Main unit Wall-direct mounting kit main unit, using a thin object.
  • Page 16 AB-7050 Wiring Lead wire connection type Models TY7043Z0P00(-1) Model TY7043Z0K00(-1) and TY7053Z0P00(-1) Temp. Pt1000 White White Pt100 Temp. White Figure 21. Terminal wiring: Figure 20. Terminal wiring: Temperature sensor with RTD (Pt1000) output, no power Temperature sensor with RTD (Pt100) output, no power Models HY7043T1000(-1) Models HTY7043T1P00(-1) and HY7043T6000(-1)
  • Page 17 AB-7050 Precautions for wiring IMPORTANT: • Do not connect the lead wires for temperature output to the power supply line to prevent smoking or burnout. Make sure all the wires are correctly connected before supplying power. • Single Neosensor must be powered by a single 24 V AC transformer. Do not connect the transformer to any other device in addition to Neosensor.
  • Page 18 AB-7050 24 V DC transformer: Multiple Neosensor powered by a single transformer (correct example) Multiple Neosensor or a Neosensor and another device in connection can be powered by a single 24 V DC power. Good wiring 24 V DC Temperature/humidity sensor Controller ∼...
  • Page 19 AB-7050 Inspection and Maintenance Since Neosensor is factory-inspected and -calibrated for high accuracy, no field calibration is necessary when Neosensor is installed. For inspection and maintenance, follow the instructions below. Periodic inspection Periodically inspect Neosensor for its measuring accuracy, and clean the cover. Set the period between inspections based on how much atmospheric dust and other contaminants are contained in the installation environment.
  • Page 20 AB-7050 FP3 is a trademark of Azbil Corporation in Japan or in other countries. Specifications are subject to change without notice. Building Systems Company http://www.azbil.com/ Rev. 2.0 Sep. 2015 AB-7050 (J: AI-7050 Rev. 3.2) Printed in Japan.
