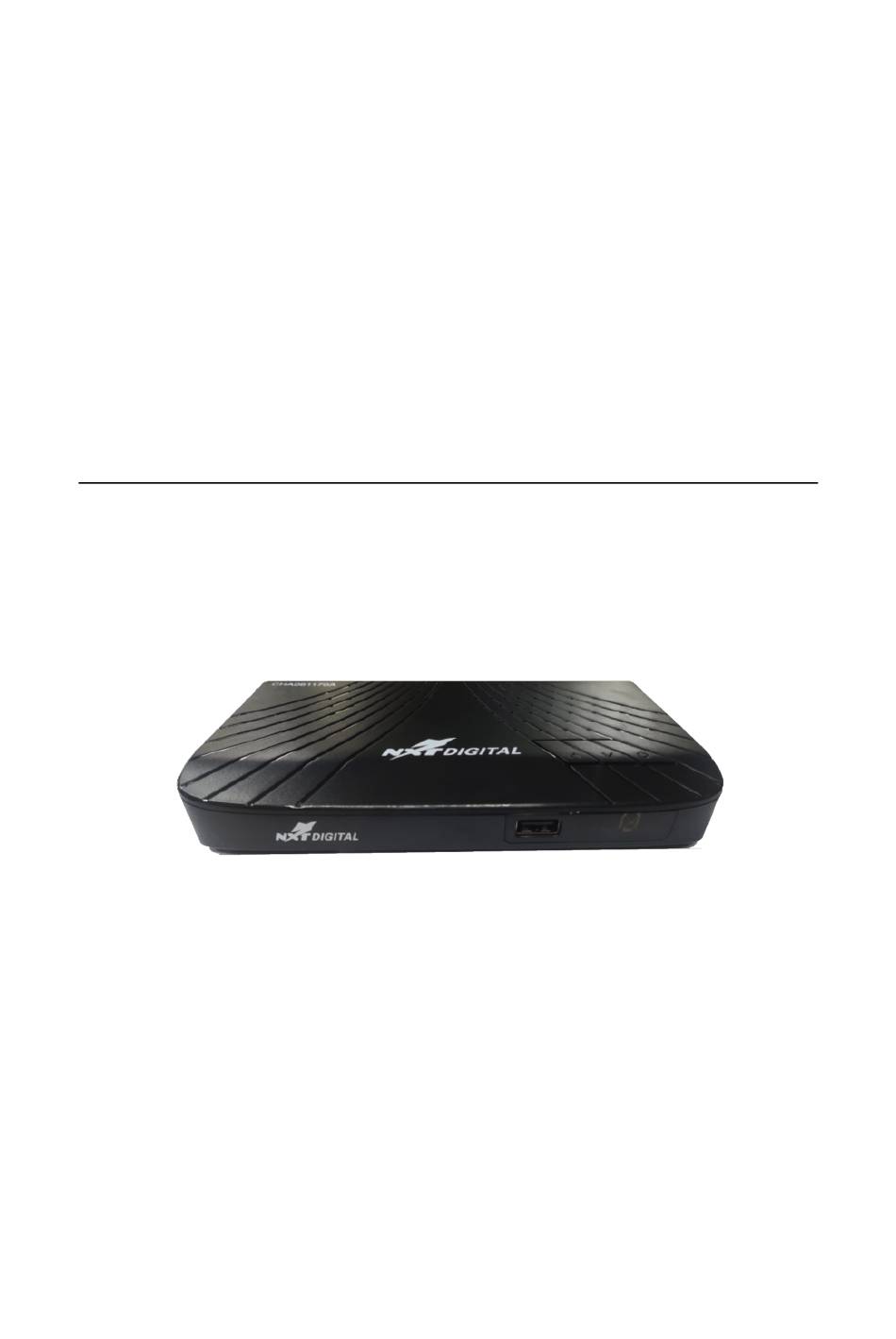

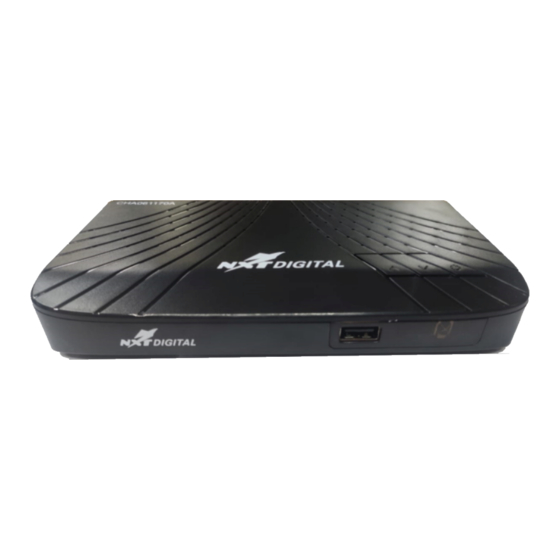

- Page 1 User Manual Digital Cable Receiver – High Definition (HD) Model – CHA 061170A...
- Page 2 Important Safety Instructions Read, follow and keep these instructions safely. Heed all warnings. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. ...
- Page 3 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Table of contents 1. Panel Instruction ..........4 2.
- Page 4 1. Panel Instruction Power CH- / Down / V- / Left CH+/ Up / V+ / Right RF IN: Used to connect the CABLE to receive the signal. HDMI: Used to connect HDMI cable. AV: Used to connect AV cable. DC IN: Used to connect 12V DC adapter USB: Used to connect to an external USB 2.0 device...
- Page 5 2. Remote Control Press Help key ONCE to see System Information. Press Help key TWICE to see Channel Information Pressing FAV key go to list of your favorite channels Press List key to show channel genres for searching for your channels Press Red key to manage your recording schedule Press Yellow Key to see your messages or BMail Press Blue key for USB or PVR manager...
- Page 6 3. Installation and Settings It is professional equipment, please consult your service operator before you install. 4. Troubleshooting Problem Possible causes What to do The indicators on the front panel do not Power cord is not connected. Check that the power cord is plugged in to the light up Power adapter may be faulty.
- Page 7 5. Technical Specifications Item Specification Frequency Range 110MHz to 858MHz Input Impedance 75Ohms unbalanced Tuner Signal Input Level 40-85dBuV Symbol Rate 6875 Demodulation Demodulator 16/32/64/128/256QAM RF IN F connector HDMI HDMI cable connector Connections RCA(CVBS+L/R) DC IN 12V Used to connect 12V DC adapter Connect an external USB 2.0 device Input 100-240V ~ 50/60Hz...
