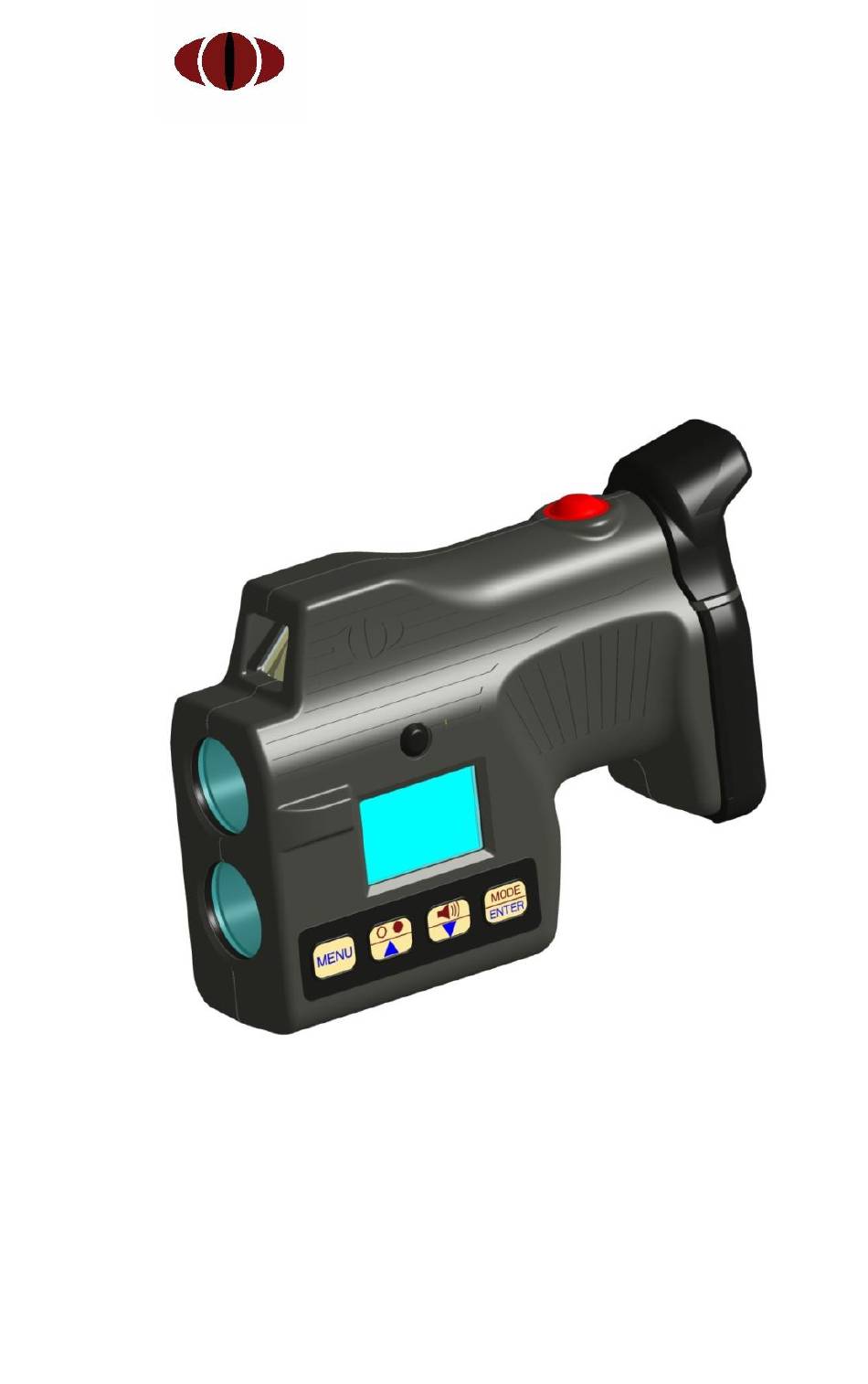

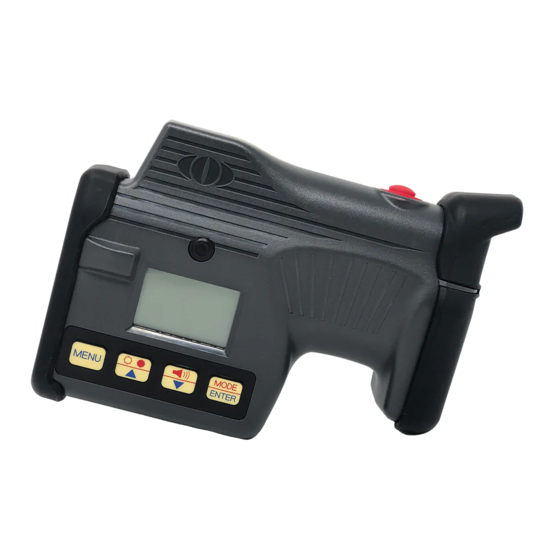

Operator's Manual
Document # 30666 Rev. 03
© 2013 by DragonEye Technology, LLC. All rights reserved. No part of this
document may be reproduced or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording, or otherwise, without prior
written permission of DragonEye Technology, LLC.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for DragonEye Compact Speed LIDAR
- Page 1 Operator’s Manual Document # 30666 Rev. 03 © 2013 by DragonEye Technology, LLC. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior...
-
Page 2: Table Of Contents
DragonEye Compact Speed LIDAR Operator Manual Table of Contents Contents Introduction ..................5 Notices and Precautions ..............6 Caution: Class 1 Laser Product ............6 Caution: Precision Instrument ............6 Caution: Use Care When Cleaning Optics ........6 Caution: Do not Point the Device at the Sun ........7 Unpacking and Checking the LIDAR Device ......... - Page 3 Direction Filter ................23 HUD Reticle Type Selection ............24 Differential Distance Test .............. 25 Differential Distance: LIDAR in Metric Units (km/h) ....25 Timed Distance Mode ..............26 Load Defaults ................. 28 DragonEye Technology, LLC / Doc. 30666 Rev. 03...
- Page 4 DragonEye Compact Speed LIDAR Operator Manual ECCM Control .................29 Input / Output Port ................29 Recommended Daily Test ..............30 Daily Recommended Test ..............30 Fixed Target Distance ..............30 Alignment Test ................31 Certification ..................32 Maintenance and General Care ............32 Cleaning ..................32 Storage ...................32 General Handling ................33...
-
Page 5: Introduction
DragonEye Compact Speed LIDAR Operator Manual Introduction Thank you for purchasing a DragonEye Technology speed LIDAR product. The DragonEye Compact Speed LIDAR is a high performance electro-optical product providing accurate speed and distance measurements custom designed for the law enforcement community. -
Page 6: Notices And Precautions
DragonEye Compact Speed LIDAR Operator Manual Notices and Precautions Caution: Class 1 Laser Product The DragonEye Compact Speed LIDAR is a Class 1 Laser product in accordance with U.S. 21CFR parts 1040.10 and 1040.11, (or IEC 60825-1 2007 in countries using this international standard) which is safe for use in all intended operation modes. -
Page 7: Caution: Do Not Point The Device At The Sun
Please check for packing lists or special instructions with any additional items. Diagram, Controls and Displays Use the diagrams and descriptions in this section to quickly familiarize yourself with the DragonEye Compact Speed LIDAR controls and features. DragonEye Technology, LLC / Doc. 30666 Rev. 03... - Page 8 DragonEye Compact Speed LIDAR Operator Manual The DragonEye Compact Speed LIDAR is a compact easy to use speed and distance measurement tool. The following diagram shows the locations of the key external features of the device. Receiver Laser Trigger Head Up...
-
Page 9: Display Descriptions
Indicates Unit in 261.3 Speed Display Power-Save with Units (Sleep) Mode Vehicle Range with Units Head-Up Display (LIDAR in Speed Mode) Low Battery Weather Indicator Mode Indicator HUD Aiming Reticle Speed Display DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 10: Controls And Indicators
LIDAR system. Additional details are provided in the “Advanced Controls and Modes” section. Laser Fire Trigger The Laser Fire Trigger is used to turn-on the DragonEye Compact Speed LIDAR when the unit is off and to initiate laser firing when the unit is awake and ready. -
Page 11: Keypad Controls
Modes. In Speed Mode the side display will show km/h and M for Kilometers per Hour and Metres for devices programmed with SI units. In Range Mode the display will simply show “M” for range DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 12: Hud Brightness Control
DragonEye Compact Speed LIDAR Operator Manual measured in Metres. Note: the LIDAR is factory set and cannot be changed by the operator. HUD Brightness Control Use the button to toggle through the six HUD Brightness levels. Note: Level 1 and Level 2 are typically used for night operation only and will most likely not be visible in normal daylight conditions. -
Page 13: Up And Down Arrows
Note: Significant gains in battery life can be realized by setting the audio and HUD brightness settings at the lowest levels required for your environment. Even if you have received the “Battery Voltage DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 14: Jam / Ecm Attempt Indication
DragonEye Compact Speed LIDAR Operator Manual Critical Warning”, you may be able to restart the LIDAR and gain usable time by switching the brightness and volume to the lowest acceptable levels. Jam / ECM Attempt Indication The DragonEye Compact Speed LIDAR contains sophisticated counter measures to defeat LIDAR “Jamming”... -
Page 15: Battery Installation
Self Test and be ready for use. (Note: If the LIDAR is inactive for approximately 30 seconds, it will automatically transition into sleep mode to conserve battery life. If this happens, simply click the fire trigger again to wake up the unit.) DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 16: Selecting Speed Mode
DragonEye Compact Speed LIDAR Operator Manual Selecting Speed Mode The LIDAR will normally power up in “Speed” mode, unless it was recently used in a different mode. If “Speed” mode is not displayed MODE ENTER on power up, simply press... -
Page 17: Roadside Setup
Red Dot HUD Aiming Reticle Roadside Setup When first learning to use the DragonEye Compact Speed LIDAR , it is best to select a straight stretch of roadway with a line of sight of 150 metres or more. Approaching or receding vehicles should be targeted such that your line of sight through the HUD is as parallel as possible to the path of the target vehicle. -
Page 18: Measuring Vehicle Speeds
DragonEye Compact Speed LIDAR Operator Manual Measuring Vehicle Speeds For approaching targets, aim the LIDAR’s reticle at the front grill or front license plate of the vehicle. Good targets for receding vehicles are the license plate or tail lights. Use the boundaries of the reticle pattern to ensure only the intended vehicle is being targeted. -
Page 19: Speed Display Lock
Range Mode The LIDAR system can be used to measure distances to a variety of MODE ENTER targets. To enter Range Mode, press the Mode Button until the side panels displays: DragonEye Technology, LLC / Doc. 30666 Rev. 03... - Page 20 DragonEye Compact Speed LIDAR Operator Manual Use the aiming reticle in the HUD to select your desired target. Squeeze and hold the trigger down until a range reading is displayed in the HUD and on the side panel display. The trigger may be continuously held down as the unit is moved from target to target for quickly checking multiple ranges.
-
Page 21: Advanced Controls And Modes
(besides the normal minimum range specification). If rain, snow, fog or other obstacles are present in the line of sight to the target, it is DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 22: Poor Weather Mode
DragonEye Compact Speed LIDAR Operator Manual possible the LIDAR will receive signals from these objects preventing a reading from being displayed on the targeted vehicle. Poor Weather Mode Select Poor Weather Mode to improve the LIDAR’s ability to shoot through rain, snow, fog, or other airborne particulates such as heavy dust or sand. -
Page 23: Direction Filter
1) Only approaching Vehicles, 2) Only receding Vehicles or 3) Both approaching and receding vehicles. The default value is set for both approaching and receding vehicles. DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 24: Hud Reticle Type Selection
Filter. HUD Reticle Type Selection Your DragonEye Compact Speed Lidar may provide the option of selecting either the standard split oval aiming reticle or a more basic red dot aiming reticle. To select your desired reticle, press the Menu... -
Page 25: Differential Distance Test
“Diff Distance” is displayed. Press Enter MODE ENTER . Carefully obtain a range reading from the first target and MODE ENTER then press Enter . Carefully obtain a range reading from the DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 26: Timed Distance Mode
DragonEye Compact Speed LIDAR Operator Manual MODE ENTER second target and then press Enter . The LIDAR will then display the distance between the two targets on the side display. The distance should be within 0.5 metres of the actual distance between the targets. - Page 27 . The unit will prompt you to shoot the second reference object. If the second reference object is located where you are MODE ENTER standing with the LIDAR, simply press Enter . Otherwise DragonEye Technology, LLC / Doc. 30666 Rev. 03...
-
Page 28: Load Defaults
DragonEye Compact Speed LIDAR Operator Manual MODE ENTER shoot the second reference object and press Enter when satisfied with the distance reading. The unit will show the distance between the reference objects. At this point you have either entered the reference distance or determined it by shooting the reference objects. -
Page 29: Eccm Control
ECCM “Active” if it is not in use for a few hours, if the batteries are replaced, or if “Load Defaults” is selected. Note: While the DragonEye Compact Speed LIDAR is fully functional with ECCM set to “Disabled”, the ECCM setting should be left in the “Active”... -
Page 30: Recommended Daily Test
However we recommend performing the following system checks before each shift that the operator is going to use the DragonEye Speed LIDAR ® for enforcement purposes. This will ensure operator confidence in the instrument: Daily Recommended Test... -
Page 31: Alignment Test
The internal Self Test will also initiate automatically anytime the LIDAR is turning on from an “off” state such as a change in batteries or after the LIDAR is idle for a few hours. DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 32: Certification
Avoid the use of acetone or ammonia. Storage When not in use, the DragonEye Compact Speed LIDAR should be stored in moderate temperature, dry environments. Avoid leaving DragonEye Technology, LLC |Doc. 30666 Rev. 03... -
Page 33: General Handling
LIDAR is a precision optical instrument that should be handled with reasonable care. Avoid dropping or throwing the unit into the patrol car as hard surfaces can scratch or break the glass components. DragonEye Technology, LLC / Doc. 30666 Rev. 03... -
Page 34: Limited Warranty
DragonEye Compact Speed LIDAR Operator Manual LIMITED WARRANTY We warrant that our DragonEye Compact Speed LIDAR System will be free from defects in workmanship and material for a period of 12 months from the date of purchase by the original purchaser. If any... - Page 35 PARTICULAR PURPOSE, AND WARRANTIES IMPLIED FROM A COURSE OF DEALING, COURSE OF PERFORMANCE OR USAGE OF TRADE. THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY FOR A WARRANTY CLAIM WILL BE THE REPAIR OR REPLACEMENT OF A UNIT. DragonEye Technology, LLC / Doc. 30666 Rev. 03...
-
Page 36: Troubleshooting And Service
DragonEye Compact Speed LIDAR Operator Manual Troubleshooting and Service Symptom Possible Causes Unit will not power up when 1. Replace batteries. trigger is pulled 2. Check that batteries are inserted correctly. Head Up Display is not visible Check HUD brightness setting Audio tone indicates an 1. -
Page 37: Specifications
+/- 15.0 cm (to one sigma Standard Error) Distance Resolution: 3.0 cm Beam Divergence: 3.0 milliradian Laser Source: Diode, 905 +/- 10 nm Eye Safety: IEC 60825-1 2007 Temperature Range: -30° C to +60°C DragonEye Technology, LLC / Doc. 30666 Rev. 03... - Page 38 DragonEye Compact Speed LIDAR Operator Manual Power Source: Two AA-cells; High Quality Alkaline or NiMH Rechargeable Battery Life: Up to 16 Hours of Operation (Alkaline AA- cells) Environmental: Water Resistant to IP57 Additional Features: Timed Distance (Stopwatch) Mode ...
-
Page 39: Appendix A - Cosine Effect
“Line V” is projected onto the LIDAR operator’s line of sight “Line O”. Using standard trigonometry, this projected motion can be shown to ΔO = ΔV x COSΘ Line V ΔV Θ ΔO Line O DragonEye Technology, LLC / Doc. 30666 Rev. 03...
