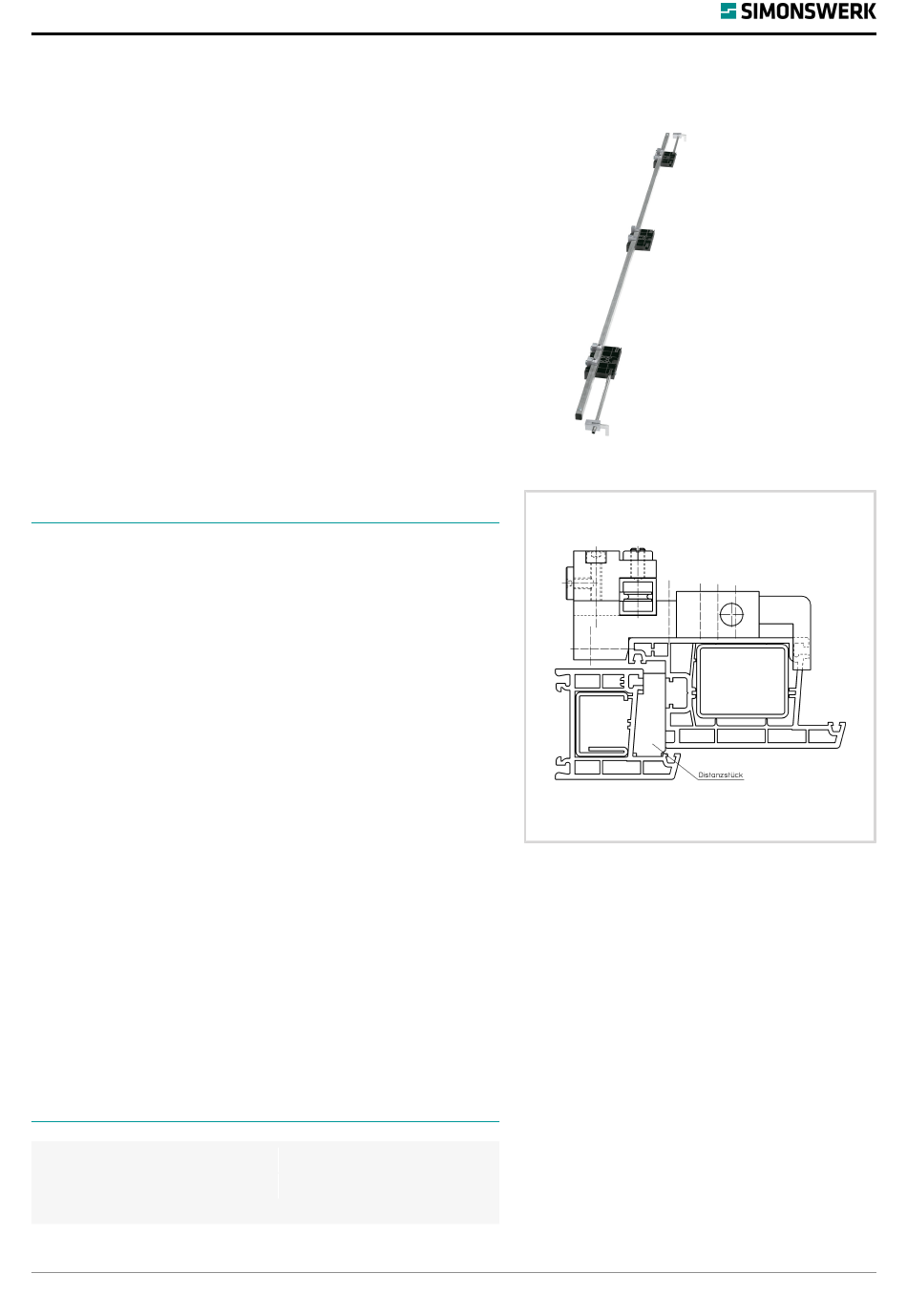

Telescope jig SIKU 3D Type 2

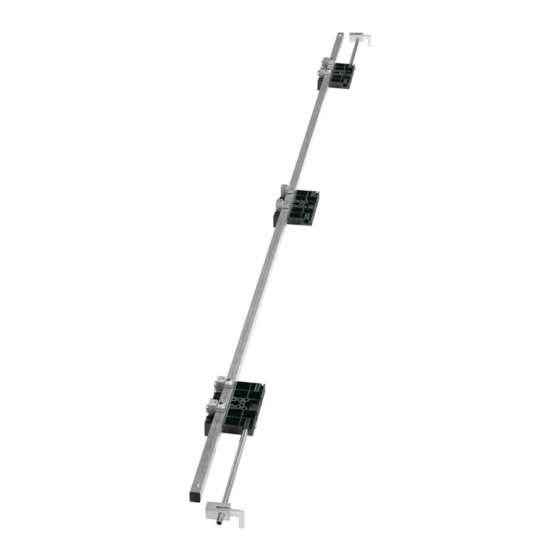

Telescope jig SIKU 3D
Type 2
for drilling of SIKU 3D K 3035, K 3135, K 3235, K
3335, K 6065, K 6165, K 6265

Note

Fitting instructions

1. Adjust the end stops with regard to the upper hinge position.
The jig can now be used for both right and left hand mounting.
2. Place door into frame and use spacer blocks to create
clearance as per profile manufacturer's instructions.
3. Place telescopic serial drilling jig on the door leaf and adjust
the outer drilling jigs so that the stops rest against the door at
top and at the bottom (the middle drilling jig is centred
automatically).
4. Clamp telescopic serial drilling jig in place and drill holes with
Ø 5,0 mm drill bit.

Scope of supply

3 x drilling jigs
6 x eye bolts
1 x square rod with cable-pull action
2 x end stops
1 x drill bit Ø 5,0 mm
1 x Allen key 4 mm (blind plugs)
1 x fitting instruction
Note
Please indicate exact hinge type when ordering.
See also simultaneous mounting jig SIKU 3D.
Item
Finish(es)
VPE
13.04.2021 © SIMONSWERK GMBH
While every due care has been taken, we cannot be held responsible for errors, omissions or defects.
without (000)
pack of 1
cross section
