User manual 001A
SMH300
4.13.14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SMH300 and is the answer not in the manual?

Questions and answers

Related Manuals for Qeedji SMH300

Summary of Contents for Qeedji SMH300

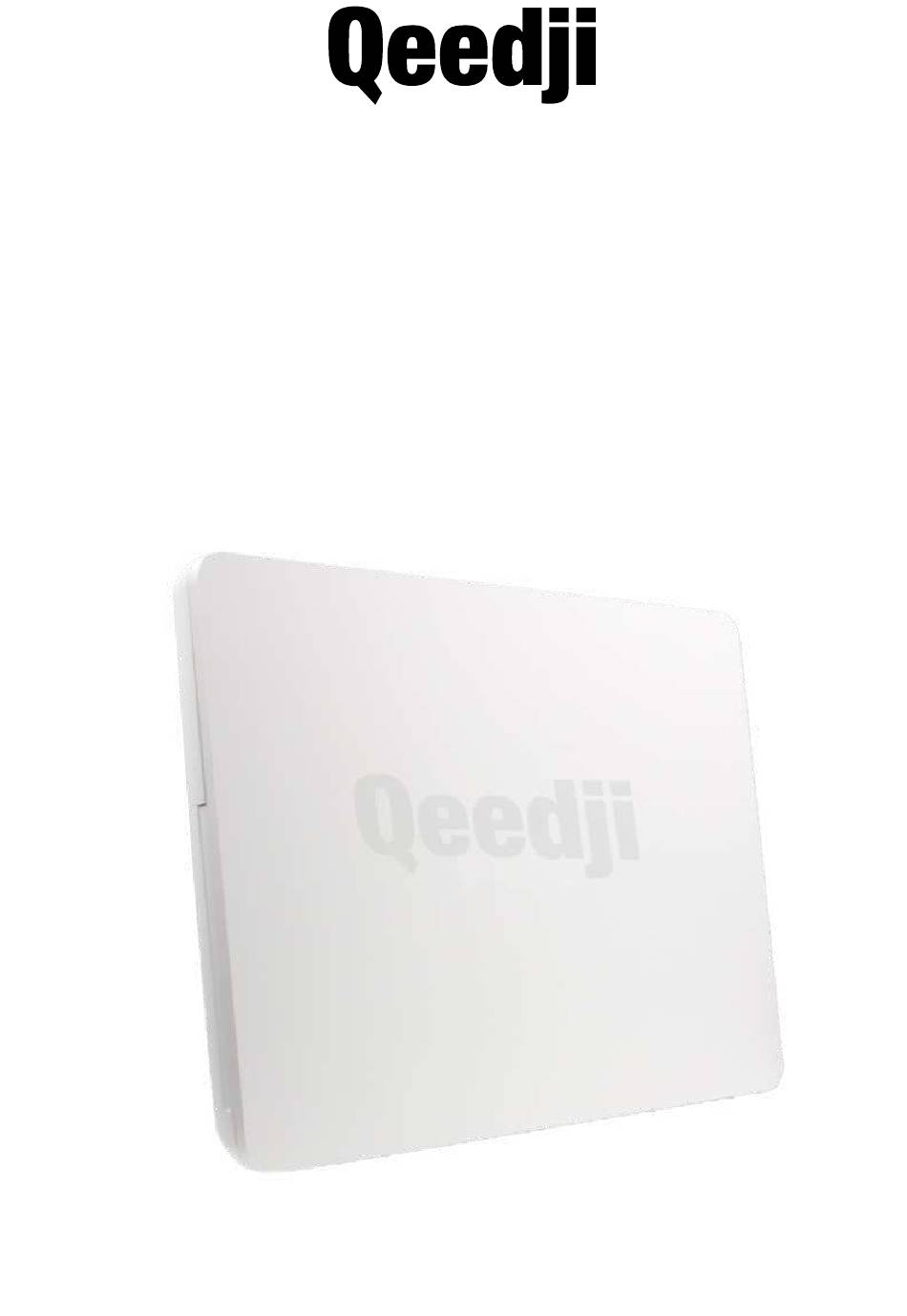

  • Page 1 User manual 001A SMH300 4.13.14...
  • Page 2 Product informa on Product design and specifica ons are subject to change at any me and `Qeedji` reserves the right to modify them without no ce. This includes the hardware, the embedded so ware and this manual, which should be considered as a general guide to the product. The accessories supplied with the product may differ slightly from those described in this manual, depending on the developments of the various suppliers.

  • Page 3: Table Of Contents

    Informa on > Network 2.1.20 Informa on > Wpan devices 2.1.21 Configura on by script Appendix 1: Device status (status.xml) Appendix 2: Qeedji PowerPoint publisher for SLATE 3 - Technical informa on Technical specifica ons Conformi es 4 - Contacts Contacts...

  • Page 4: Introduc On

    This device is intended to work with the power supply unit. This power supply unit must be connected to a mains socket conforming to standard NF C 15-100. If the AC power cable is damaged, it must be replaced. It is possible to order a power supply unit replacement by sending a request to the email address sales@qeedji.tech.

  • Page 5: Ge Ng Started With The Device

    Ge ng started with the device Top face DC IN SD CARD USB2 USB1 PW ST CLIENT Power supply 12V DC, Power supply red LED, Status green LED, GPIO1/IR connector, LAN PoE RJ45 connector, SD Card connector, USB2 2.0 Host connector, USB1 2.0 Host connector, WLAN antenna slot.

  • Page 6: Device Fixture

    Device fixture 1.2.1 The bo om of the smh300 if o en fixed at 220 cm far from the floor, oriented in the right sense, meaning cable output oriented towards the ceiling. 6mm ≤ Ø ≤ 8mm screws Ø ≤ 4mm...

  • Page 7: Device Dimensions

    Device dimensions 1.2.2 35 mm 258 mm...

  • Page 8: Labelling

    ☛ The serial number of the device can be requested in case of technical support. The model of the device, the power supply characteris cs, the serial number (PSN) and the MAC address are wri en on labels which are stuck on the case. SMH300 PSN00920-00036 CD4...

  • Page 9: Device Start-Up Step

    Device start-up step 1.2.4 Step 1 (T0=0s) Step 2 (T~9s) Step 3 (T~35s) Device start-up ini alisa on Device start-up finalisa on Nominal mode This phase dura on is depending on some variable values During this step, the device has to play the App content. (like NTP), some network access dura on or some data When firmware upgrade process occured, in case checking (check-disk)

  • Page 10: Leds Behaviour

    LEDs behaviour LED POWER behaviour (power on device) State Informa on OK: Power supplied Off Error: Power supply issue ¹ LED LAN behaviour (power on device) State Informa on Off There is no network traffic on the Ethernet connector Blinking The blinking frequency is indica ng the data rate on Ethernet connector LED STATUS behaviour depending on device start-up steps •...
  • Page 11 Off Error. ¹ ¹ If the problem persists in despite of an appropriate power-supply, contact support@qeedji.tech. ² If the problem persists, it is recommended to find out the media not supported yet by the system and remove it from content.

  • Page 12: Connectors Pin-Out

    Connectors pin-out Power supply connector (12VDC-1.2A) DC IN LAN connector Ethernet RJ-45 PoE. 10/100 BaseT. It is recommended to use shielded cables. Jack 3.5 mm connector (GPIO1) 3 2 1 N° Name Write/Read Control Voltage reference 3.3V GPIO1 IN or OUT CPU/GPIO1 Ground Electrical features...
  • Page 13 Three wires input configura on for GPIO1: SMH300 PERIPHERAL 3.3V 1 (Jack) 3 (Jack) Input Switch CPU/GPIO1 2 (Jack) Two wires configura on for GPIO1: SMH300 PERIPHERAL 3 (Jack) Input CPU/GPIO1 Switch or dry loop 2 (Jack) Output configura on for GPIO1:...

  • Page 14: Configura On Web Interface

    Configura on Web interface The SMH300 device has a Web-based configura on interface that can be accessed with a Web browser. The supported browsers are: Google Chrome Mozilla Firefox MS-Edge MS-Edge (Chromium) It is accessible from the URL: http://<device_IP_addr>/ By default, the login creden als for the configura on Web interface and the Web server are:...
  • Page 15 For example, for the MAC address value: ``00-1c-e6-02-1e-45`, In a Web browser, enter the URL: http://[fc00::21c:e6ff:fe02:1e45]/.admin/ To obtain the applica on note reminding some no ons about IPV6 configura on, click on the link to the site Qeedji...

  • Page 16: Configura On > Administrator

    For security reasons, it may be useful to change the login creden als for the device's configura on Web interface. Please keep these login creden als in a safe place a erwards. It is recommended that you enter a unique value for each device. In case several SMH300 devices are located in different buildings or geographical loca ons, we Hostname recommend that you enter hostname values with informa on about the building and the loca on (e.g.

  • Page 17: Configura On > Lan

    Configura on > LAN 2.1.2 In the pane, select the LAN menu to set up the network configura on of the interface of your device: Configuration If your device is not located in a secure network, select: security: None. If your device is located and properly declared in a secure network, select , then select an authen ca on method supported by your RADIUS server: 802.1X...

  • Page 18: Configura On > Wlan

    Configura on > WLAN 2.1.3 From the pane, select the WLAN menu to set up the network configura on of the interface on your device. Configuration WLAN ☛ The menu is only displayed when the op on is supported by your device. WLAN WLAN Connection mode...

  • Page 19: Configura On > Slates Pairing

    The SMH300 device is designed to work with at least one and up to 10 SLATEs. In case you are using an already installed SMH300 device, it is recommended double check its heartbeat configura on before star ng any configura on. For further ◬...
  • Page 20 ² At least one day must be ac vated. So that the wake up policy is working properly, the smh300 BLE access point needs to be on me. ⚠ Be careful when you are programming a new wake-up policy. Indeed, progamming a unexpected value for the wake-up may configure the SLATE to only wake-up when ⚠...
  • Page 21 Wake-up by vibration sensor field is always ac vated. It allows to ac vate the WPAN1 channel used between the SLATE and the SMH300 device. WPAN1 (BLE access point) field is ac vated in the default configura on. Deac va ng the support for WPAN2 channel prevent to work with...
  • Page 22 Wait for a delay during WPAN1 could be needed in case very poor Ethernet connec on between the SMH300 and the calendar system. Changing this value must be first allowed by Qeedji support. : allows to ac vate the Message Overlay feature on WPAN1. It is ac vated by default because it is not supported in this version, Receive Message overlay over WPAN1 : allows the SLATE to update its content through WPAN1 (mandatory when working with SMH300 device).
  • Page 23 : not ac vated in the default configura on: Start a timer for <m> s repeated <n> times maximum : 30..60 <m> : 1..9 <n> For further informa on, contact support@qeedji.tech. For more informa on, refer to the on the Qeedji Web site. SLATE106 User manual...
  • Page 24 Middle key bu on: In the default keymap configura on: ,pressing once on the Middle key of the SLATE allows to send F2 keycode to the SMH300 (expected value for Middle key Book now for resource reserva on App): Using some App for resource reserva on may require to have the default configura on for keymap.
  • Page 25 The SMH300 device pairing allows to associate one or several SLATEs to a SMH300 device. A SLATE can be paired to only one smh300 device. When a new SMH300 device is trying to pair a legacy SLATE already paired to another SMH300 device, the SLATE will be paired to the new SMH300 device and ◬...
  • Page 26 : not yet determined (value shown in the tool p), Grey ¹: mm/dd/yyyy, hh.mm.ss AM/PM (value shown in the tool p), last connec on date & me of the SLATE to the SMH300. Last wake-up on : mm/dd/yyyy, hh.mm.ss AM/PM (value shown in the tool p), date of the last successful file downloading.
  • Page 27   Wait for the next SLATE wake up to see the paired status going from   state to the  state. Pairing in progress Paired   ☛ To avoid wai ng for 15 minutes, you can also speed-up the pairing process by plugging for 3 seconds a USB power bank on each SLATE106 device to pair. However it is reserved for advanced user for first installa on.
  • Page 28 PIN code   To ensure that the SLATE keeps paired with your SMH300 device, an is not unexpectedly unpair by another user, you can use a 4 digits PIN code. ☛ Each me the parameters are modified, the SLATE is unpaired temporarily un l the configura on is taken by the SLATE. So do...
  • Page 29 Play HUB.PPK In case smh300 migra on from 3.12.XX to 4.13.14, you should not be able to finalize right now the configura on of some SLATE106, whose the firmware version is ◬ V1.10.XX. These device must first take the new firmware version 1.11.11 before taking account the new APPLI.CFG configura on file. Just ensure that the programmed ) mode is the right one then press now on bu on.
  • Page 30 Time to obtain a connec on quality The connec on quality status is showing the file download error rate averaged on the ten last files downloading between the SMH300 and the SLATE. The files can be as well: a APPLI.CFG configura on file, a .ppk content,...
  • Page 31 If you don’t remember the for a device making that the device SLATE pairing can not complete, the only way is to connect the SLATE with an USB cable to a computer: PIN code either you can edit the preference values with GUI and get the value in the field , eject properly the USB mass...

  • Page 32: Configura On > Push Bu Ons Pairing

    In the pane, select the menu Push bu ons pairing to pair the EnOcean push bu ons devices to your SMH300 device. Configuration Click on bu on to start the push bu on EnOcean device pairing process.
  • Page 33 Select a paired push bu on device on the list. Push button paired to this device Click on the bu on to change its WPAN hostname. Edit Click on the arrow to change the push bu on index . Down...
  • Page 34 If the index is correct, do consider here that your push-bu on is properly paired. You cannot pair or use an EnOcean push bu on beyond a maximum distance from the SMH300 device specified by the manufacturer. ☛ For further informa on about the available App, contact support@qeedji.tech.

  • Page 35: Configura On > Sensors Pairing

    2 last minutes. Magnet contact In the pane, select the menu Sensors pairing to pair the EnOcean mo on sensors devices to your SMH300 device. Configuration Click on bu on to start the mo on sensor device pairing process.
  • Page 36 Click on the arrow to move the sensors devices from the list to the list. Sensors not paired to this device Sensor paired to this device Select a paired sensor device on the list. Sensors paired to this device Click on the bu on to change its WPAN hostname.
  • Page 37 If the index is correct, do consider here that your mo on sensor is properly paired. You cannot pair or use an EnOcean mo on sensor beyond a maximum distance from the SMH300 device specified by the manufacturer. ☛ For further informa on about the available App, contact support@qeedji.tech.

  • Page 38: Configura On > Busy Lights Pairing

    Busy lights pairing to pair the In the busy lights devices to your SMH300 device. Configuration Qeedji ☛ You can not pair and use the busy light sensor over the maximal distance far from the SMH300 device preconised by the manufacturer.

  • Page 39: Configura On > App

    *tar.gz, *.zip, *.tar, *.tgz For more informa on, contact support@qeedji.tech. : Configure the device to receive a published App from any WebDAV client or compa ble so ware suite. Once the App is received, its content is immediately Push WebDAV...
  • Page 40 ☛ To find out which so ware suites are capable of publishing an App on devices, contact support@qeedji.tech. Qeedji : allows you to configure the device so that it can regularly retrieve an App from a remote WebDAV server. Once the App is retrieved, its content is immediately Pull WebDAV played.
  • Page 41 Using appropriate sensors, the device can, with this App, connect to an LDAP server to authen cate itself with an NFC badge and book, validate or delete mee ng room reserva ons. For further informa on, contact support@qeedji.tech.
  • Page 42 When the device is in standby, the .ppk contents can not be updated. ☛ For more informa on, contact support@qeedji.tech. ◬...

  • Page 43: Configura On > Servers

    Configura on > Servers 2.1.9 In the pane, select the Servers menu to define the configura on of the servers peripheral to your device. Configuration status, so ware installa on and configura on servers. Status server : URL of the remote server's WebDAV frontend for the broadcast of the device status file.

  • Page 44: Configura On > License

    Configura on > License 2.1.10 In the pane, select the License menu to view your device license number. Configuration This license number is registered at the factory when the device is ordered. It is then sent to you by e-mail. If it has disappeared due to a handling error or a er forma ng your device, an error message indica ng that the license is invalid will appear on your monitor.

  • Page 45: Configura On > Date And Me

    Configura on > Date and me 2.1.11 From the pane, select the Date and Time menu to check the system date and me of your device. Configuration To update the date and me of your device, click on the value and then click the bu on.

  • Page 46: Configura On > Regionality

    Configura on > Regionality 2.1.12 From the pane, select the Regionality menu to choose the language in which informa on or error messages from the device should be displayed. Configuration The supported languages are: English, Spanish, German, French.

  • Page 47: Configura On > Tasks

    Configura on > Tasks 2.1.13 From the pane, select the Tasks menu to: Configuration program a device reboot task, program an energy management task for the appliance to reduce its energy consump on. Device restart tasks To create a restart task, click on the  bu on and then the bu on.
  • Page 48 BEGIN:VCALENDAR VERSION:1.0 BEGIN:VEVENT SUMMARY:Standby Task 1 X-POWER-MANAGER-LEVEL:MIN DTSTART:20190805T090000 DTEND:20190805T120000 RRULE:FREQ=WEEKLY;BYDAY=MO,TU,WE,TH,FR,SA,SU;UNTIL=20200416T0000 END:VENT END:VCALENDAR ☛ The Power Manager task scheduled at the Web interface has no effect when another sleep task is scheduled within the App. In this version, here is the state of the device when the power manager is in the Very highly op mized state: Func on Associated User Preferences Sound: inac vated...

  • Page 49: Configura On > Variables

    Configura on > Variables 2.1.14 From the pane, select the Variables menu to set variable (or TAG) values for this device. Configuration The variable names are: - `field1', - `field2`, - `field3`, - `field4`, - `field5`. Variable values can only contain characters from the ASCII-7bits table. These variable values can then be used in Apps to perform specific processing for certain devices only.

  • Page 50: Maintenance > Middleware

    ☛ Correc ve and evolu ve maintenance so ware versions are regularly made available in the support tab of the official website p://www.qeedji.tech. It is Qeedji therefore advisable to regularly update your device. From this website, download the latest version available for your device model. Unzip the archive and get the .zip...

  • Page 51: Maintenance > Logs

    ☛ These logs can only be interpreted by so ware developers who are familiar with the so ware bricks that have been developed. Ac va ng the logs with a level other than should only be done a er a request from support. Qeedji Enabling traces with a level can significantly disrupt the opera on of the device.

  • Page 52: Maintenance > Preferences

    Before changing any value of a preference, please consult your support. ◬ Qeedji Double click on a preference to change its value. bu on resets a subset of preferences allowing the device to reprogram its factory preferences. Restore factory preferences...

  • Page 53: Maintenance > Tools

    Correct Correct Format clicking the bu on will format the contents. It is then necessary to republish an App. Format ☛ If the problem persists a er forma ng the SD card, contact your support. Qeedji...

  • Page 54: Informa On > Device

    : label and version of the embedded middleware, Middleware : model of the device, Model Qeedji : name of the device on the network, Hostname : MAC address (value used in par cular to generate the license key of the device), : Universal Unique IDen fier, UUID : Product Serial Number.

  • Page 55: Informa On > Network

    Informa on > Network 2.1.20 In the pane, select the Network menu to view a summary of the device's network configura on. Information...

  • Page 56: Informa On > Wpan Devices

    Informa on > Wpan devices 2.1.21 In the pane, select the menu WPAN Devices to see WPAN devices paired to your SMH300 device. Information The panel allows to display system informa on like: : SLATE index column Type : Qeedji, EnOcean,...

  • Page 57: Configura On By Script

    Configura on by script The smh300 can auto-configure when it can load a configura on script. The configura on-by-script can be either hosted on remote WebDAV server, or broadcasted by your DHCP server (code 66) or injected with a USB storage device. For further informa on, refer to the configura on-by-script...

  • Page 58: Appendix 1: Device Status (Status.xml)

    Appendix 1: Device status (status.xml) The SMH300 device is upda ng regularly its device status stored in its WebDAV directory: /.status http://<device-ip-addr>/.status/ This file can be periodically sent to a remote WebDAV server for monitoring purpose. Status.xml example: <device-status xmlns="ns.innes.device-status">...

  • Page 59: Appendix 2: Qeedji Powerpoint Publisher For Slate

    (default value), are supported. http:// Prerequisite: the SLATEs need to be paired with the right index to each appropriate SMH300 hub. For further informa on, refer to the chapter § Configura on > SLATEs pairing. the SMH300 hubs need to be purged from any exis ng App. It is advised to set the App mode to the value.
  • Page 60 255-255-255 ☛ Some sec ons can be used especially to publish on several SMH300 hub, with one sec on per SMH300 hub or shorten the publica on me for a given SMH300 hub by avoiding to publish unuseful slides. With a right click on the slide thumbnail list on the le , it is possible to remove one or all the sec ons. To add a sec on a er a slide, select a slide on the slide thumbnail list, right click, and choose .
  • Page 61 PowerPoint Publisher for SLATE ☛ In some rare cases, the warning message PowerPoint has problems with the Qeedji complement. If the problem persists, disable this add-on and check for updates. Do you want to disable it now? (yes/no) could be prompted when opening a MS-Office PowerPoint. In this case, do ignore the message by clicking No. It should not prevent to work properly.
  • Page 62 Select then the only SMH300 hubs on which you want to publish, by double clicking on them. ☛ The SMH300 hub sor ng order in the list is decisive because it is taken into account during the publica on. The slides of the first sec on, or the first 10 slides, are always affected to the SMH300 hub located at the top of the list.
  • Page 64 The Publishing status report is showing whether the publishing on each SMH300 hub has succeeded or not: : the publica on has succeeded Publishing succeeded : the publishing has failed. In this case, check the network connec on between your computer and the SMH300 hub. Publishing failure (Error: 503) Publishing status report example: 1/2 - Publishing on device: *BLEAccessPoint1* (192.168.1.121)

  • Page 65: Technical Specifica Ons

    Technical specifica ons Model Manufacturer SMA300 Qeedji Processors Freescale iMX6 Vivante Peripherals 2x USB 2.0 Host (Low/Full/High Speed) 1x Jack 3.5 mm configurable in GPIO or Infrared Storage Informa on Internal Flash Memory for OS SD card Qualified SD cards: SANDISK / SDSDAA-032G / 32 GB, SANDISK / SDSDB-032G-B35 / 32 GB, SANDISK / SDSDAA-008G / 8 GB...

  • Page 66: Conformi Es

    Conformi es In conformity with the following European direc ves: LVD 2014/35/EU EMC 2014/30/EU...

  • Page 67: Contacts

    Contacts For further informa on, please contact us: Technical support: support@qeedji.tech, Sales department: sales@qeedji.tech. Refer to the Web site for FAQ, applica on notes, and so ware downloads: h p://www.qeedji.tech/ Qeedji Qeedji FRANCE INNES SA 5A rue Pierre Joseph Colin...
