Summary of Contents for OZ Racing E-LEGGERA

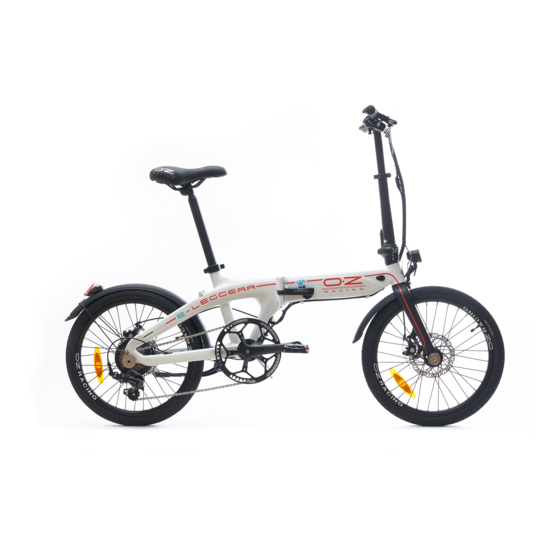

- Page 1 E-LEGGERA Electric Bicycle Manual...
-
Page 2: Table Of Contents
Electric Bicycle Manual Catalog 1. Safety instructions and notes............2 1.1. Safety instructions..............2 1.2. Notes ..................4 2. Basic structure and name...............6 3. Unfolding method................7 4. Operation and adjustment..............9 4.1. Familiarising Display introduction........9 4.2. Ride modes................9 4.3. Introduction to speed boosting system........9 4.4. -
Page 3: Safety Instructions And Notes
Electric Bicycle Manual Electrically power assisted bicycle，equipped with pedals and an auxiliary electric motor， which can not be propelled exclusively by means of this auxiliary electric motor. Compared with bicycle, Electric bicycle only add motor, controller, charger, battery. When Riding, electric energy will help you to ride easier and save labor. - Page 4 Electric Bicycle Manual ★ Cycling conditions: ambient temperature of -10 to 40C, no wind and flat roads; without frequently start up and brake, the general running distance may be 40 to 75km (according to the battery capacity). ★ Maximum load: the maximum load of the bike is (100Kg); if an accident happens when the load is more than 120Kg, the company does not undertake any responsibilities.
-
Page 5: Notes
Electric Bicycle Manual 1.2 Notes The electric bike is designed based on the original bike in combination with the market demand and is a means of transport with special functions and uses. At the time of purchase, please select and buy a model suitable for your need, and the drivers must have skilled riding technique before riding on the road. - Page 6 Electric Bicycle Manual not exceed 25Kg. When high-speed running or downhill hard braking, do not use the front brake to avoid the center of gravity from moving ahead, thus resulting in danger. Don’t modify the luggage carrier. Don’t pull a trailer on the luggage carrier. The bicycle may behave differently (particularly with regard to steering and braking) when the luggage carrier is loaded;...
-
Page 7: Basic Structure And Name
Electric Bicycle Manual 2. Basic structure and name 2.1.Folding E-bike Frame Controller Battery Seat clamp Seat post Saddle Stem Grip Handle bar Brake lever Shift Harness Disc Brakes Tyre Nipple Spoke Valve Front Fork Pedal Crank Chain Side kick stand Motor... -
Page 8: Unfolding Method
Electric Bicycle Manual 3. Unfolding method... - Page 9 Electric Bicycle Manual...
-
Page 10: Operation And Adjustment
Electric Bicycle Manual 4. Operation and adjustment introduction 4.1 Familiarising Display “3” the shift key “1”the power on key “2” the shift key “4”the display 4.2 Ride modes You can operate your bike in different modes to suit your personal riding style. -
Page 11: Charge
Electric Bicycle Manual ride easier and make the continuation line mileage further. 1:1 boosting system comprises a controller, sensor and induced cartridge. ③Induced cartridge ①Controller ②Sensor 4.4. Charge As it will last a certain period of time for the ex-factory, transport and storage of a just purchased new bike, it is likely to result in shortage of the battery power, the battery should be first charged before it is used. - Page 12 Electric Bicycle Manual 4.4.2. Charging steps and method 1. Check carefully whether the rated input voltage of the charger is consistent with the voltage of the power grid. 2. The battery can be directly put on the bike for charging. 3.
-
Page 13: Quick Release Folding System
Electric Bicycle Manual Common sense of charging and use: * The battery should be charged in a spacious environment, staying away from high temperature, high humidity and close fire, because the battery and the charger are electronic products, high temperature and humidity will corrode electronic components, resulting in some harmful gases and soot, and even a possible explosion to wound. -
Page 14: Reflection And Lighting System
Electric Bicycle Manual should first check whether the seat bunch is locked, and then check whether the quick release device is locked, and repeat the operations above if necessary. 4.6 Reflection and lighting system The reflection system includes a reflector on the rim and another one on the hand lebar. -
Page 15: Braking System
Electric Bicycle Manual so-called insertion mark can not be higher than the seat connector. In case of improper use, serious injury may be caused to the rider (as shown in Figure 2). 4.8 Braking system The braking system is an accessory necessary for each bike and is the key to traffic safety;... - Page 16 Electric Bicycle Manual 4.8.2 Adjust the disc brake Adjustment method of the brake pads: 1 Loosen the fixed screw and see there are three holes in the permanent seat; 2 When moving the spring foot to the up hole, the elastic force increases, so that the distance between the brake pads and the Rim is increased, and vice versa it becomes small.
-
Page 17: Chain
Electric Bicycle Manual line should be avoided, so a tail sleeve had best be covered on the line end. . The brake cable should be regularly taken out to be oiled, to avoid too large resistance arisen from rust. . The brake cable in a linear way has the best function, and if it must be bent, the turning with a small arc should be avoided as far as possible. -
Page 18: Inflator （Option
Electric Bicycle Manual Wear the chain and elongate it to a certain extent, it will in the chain will climb to the chain wheel and jump, and at this time the chain has not meshed with the chain wheel correctly, thus affecting the cycling performance;... -
Page 19: Use And Maintenance
Electric Bicycle Manual turn the cap from right to left pull out the inflator open the plastic cover connect with tire valve, charge the tire as normal 5. Use and maintenance 5.1. Routine inspection of electric bike before use 1 Install the battery box in the slot of the battery box, open the power supply switch and check whether the functions of all the electrical appliances are normal. -
Page 20: Attentions About The Battery And Charger
Electric Bicycle Manual high stresses. Different materials and components may react to wear or stress fatigue in different ways. If the design life of a component has been exceeded, it may suddenly fail possibly causing injuries to the rider. Any form of crack, scratches or change of coloring in highly stressed areas indicate that the life of the component has been reached and it should be replaced. - Page 21 Electric Bicycle Manual Never disassemble the battery without permission. 5.2.2 Charger Charge the battery after you buy this e-bike or the power is low. Make sure the charger is as least 1M away from computer, TV, fridge, washing machine and other electric machine while charging. This charge is only used in doors.
-
Page 22: Everyday Use And Inspection Of Electric Bike
Electric Bicycle Manual 5.3 Everyday use and inspection of electric bike In everyday use of the electric bike, a number of mechanical, electrical parts will be worn, screws and other fasteners are also easy to loose and the functions of the electrical appliances would be lost. If the occurrence of these phenomena is not noted, it is prone to failure, and it is also prone to the risk when cycling, so drivers must be responsible for inspection and maintenance in peacetime. -
Page 23: Lubricating The E-Bike
Electric Bicycle Manual Check that the tire s are correctly inflated. Check that the battery contacts on the frame are not dirty or oxidized. Check that the batteries are sufficiently charged. Check that the front and rear lights are working correctly. Check that the front and rear brakes brake effectively. -
Page 24: Riding Technology
Electric Bicycle Manual 6. Riding technology A correct cycling posture is the mother to safety: the riding posture is determined by the position of figure and shadow of the contact point (handlebar, seat, Pedal) of the and bicycle. However the posture is rider closely related to the height and size of the . - Page 25 Electric Bicycle Manual weight is scattered on the handlebar and Pedal, and all the weight must not be placed above to prevent the pain in the hip. ◆ Skills of the Pedal: the position of the foot is one third in the front of the length of shoes, and it is the most appropriate to fall on the middle of the Pedal.
-
Page 26: Troubleshoot
Electric Bicycle Manual 7. Troubleshoot Failure Cause Eliminating methods (Ⅰ) Charge the battery Failed speed (Ⅰ) Low battery voltage fully change or too (Ⅱ) Bad governor handle (Ⅱ) Replace the low maximum (Ⅲ) Bad controller governor handle, velocity controller (Ⅰ) Replace the (Ⅰ) Bad governor handle Turn on the governor handle,... -
Page 27: Maintenance And Adjustments
Electric Bicycle Manual 8 MAINTENANCE AND ADJUSTMENTS 8.1 Maintenance and Service Centre Location In the event that you require maintenance and service please refer to your nearest authorized bicycle agent. 8.2 Service interval Recommended Service Performed By Distance Ridden Time Interval Before Pre-Ride Checklist... - Page 28 Electric Bicycle Manual • The less you expose your bike to moisture or water, the longer it will last. • Keep your bike inside your house, flat or garage. • If you wish to clean the bike, we recommend that you use a damp towel or cloth and mild liquid soap.
- Page 29 Electric Bicycle Manual • Time of exposure to ultraviolet radiation from the sun • Storage conditions, such as ambient temperature and moisture levels Responsible, safe riding and regular maintenance, such as within the guidelines of this manual, should afford many thousands of miles of operation of your bike.
- Page 30 Electric Bicycle Manual Check the head tube junction for fatigue cracking Check the head tube junction for fatigue cracking Check under the head tube junction for fatigue cracking WARNING! Should you discover a fatigue crack more than 3mm long, or should you suspect that a component may have received an impact in an unusual way—such as if the product has been dropped—do not ride your bicycle and immediately contact.
- Page 31 Electric Bicycle Manual 8.6 Tyres Bicycle comes fitted as standard with specialised, high-performance tyres designed to give the best combination of low rolling resistance, light weight and puncture resistance. To maximise performance, we do not recommend that you use lower quality tyres than those supplied with bicycle. We recommend that you operate bicycle with tyre pressures of 25–30 psi on the front and 40–50 psi on the rear.
