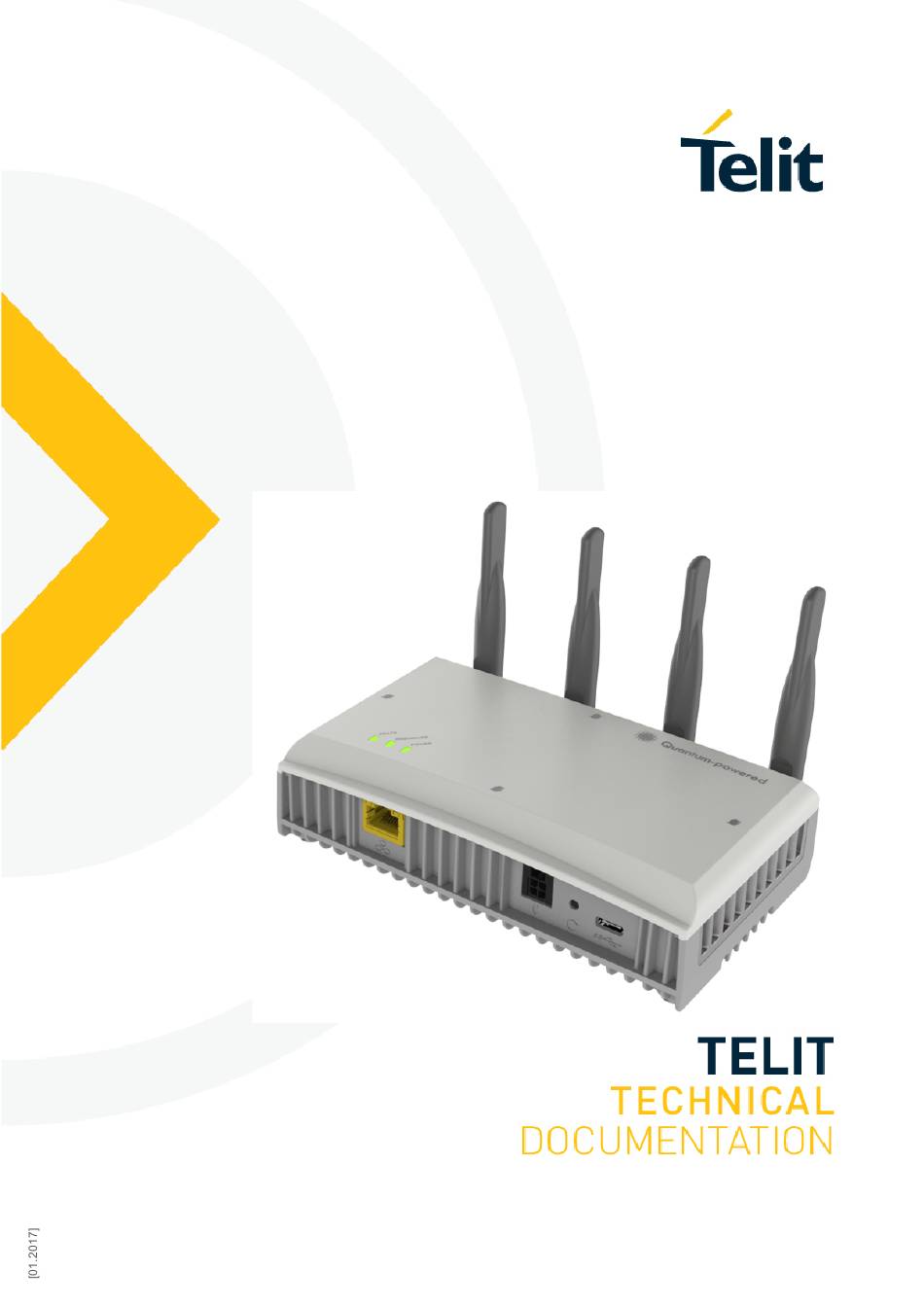

- Page 1 FT980 Series Series Demo Kit HW User Guide 1VV0301672 Rev. 1 – 2020-10-28 Mod.0818 2017-01 Rev.0...
-
Page 2: Notice
FT980 Series Demo Kit HW User Guide SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE NOTICE While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. -
Page 3: Usage And Disclosure Restrictions
FT980 Series Demo Kit HW User Guide USAGE AND DISCLOSURE RESTRICTIONS License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. -
Page 4: Applicability Table
FT980 Series Demo Kit HW User Guide APPLICABILITY TABLE PRODUCTS FT980 - Demo Kit 3G / 4G / 5G Sub-6 FT980 - Demo Kit 3G / 4G / 5G Sub-6 / 5G mmWave Page 4 of 30 1VV0301672 Rev. 1... -
Page 5: Table Of Contents
FT980 Series Demo Kit HW User Guide Contents NOTICE COPYRIGHTS ....................2 COMPUTER SOFTWARE COPYRIGHTS ............2 USAGE AND DISCLOSURE RESTRICTIONS ..........3 APPLICABILITY TABLE ..................4 CONTENTS ......................5 INTRODUCTION ................7 Scope ....................7 Audience................... 7 Contact Information, Support ............7 Text Conventions ................ - Page 6 FT980 Series Demo Kit HW User Guide 2.7.2. Weight .................... 20 Environmental Requirements............21 2.8.1. Temperature Range ............... 21 QUICK START GUIDE (TBD) ............21 Product Overview ................22 Step 1: Check the Accessories ............23 Step 2: Installation ................23 Step 3: LEDs and Ports Description ..........
-
Page 7: Introduction
1. INTRODUCTION Scope This document introduces the Telit FT980 Series Demo Kit and describes features and specifications of the products. All the features and specifications detailed in this document are applicable to all FT980 variants, where ‘FT980’ refers to the variants listed in the applicability table. -
Page 8: Text Conventions
FT980 Series Demo Kit HW User Guide Text Conventions Danger – This information MUST be followed or catastrophic equipment failure or bodily injury may occur. Caution or Warning – Alerts the user to important points about integrating the module, if these points are not followed, the module and end user equipment may fail or malfunction. -
Page 9: Related Documents
FT980 Series Demo Kit HW User Guide Related Documents • FN980 Family HW User Guide, 1VV0301603 FT980 Demo Kit HW User Guide, 1VV0301672 • FT980 SW User Guide, 1VV0301631(TBD) • FT980 WebCM User Guide, 1VV0301668(TBD) • Page 9 of 30 1VV0301672 Rev. -
Page 10: Features And Specifications
FT980 Series Demo Kit HW User Guide 2. FEATURES AND SPECIFICATIONS Overview The aim of this document is to provide specifications and guides useful for installing a product with the Telit FT980 demo kit. FT980 is Telit’s 5G demo kit embedded FN980 family M.2 module, such as M2M... -
Page 11: Frequency Bands And Ca Combinations
FT980 Series Demo Kit HW User Guide Function Features USB 3.1 Gen2 10Gbps 1x Type C port RESET Manual reset button 3 LEDs: Network • Ethernet/USB • Power status • Mechanical 150*88*39 mm Dimemsion About 670 gram * Mechanical dimension can be changed... - Page 12 FT980 Series Demo Kit HW User Guide n2 – 1900 PCS 1850 - 1910 1930 - 1990 Tx: 370000 - 382000 Rx: 386000 - 398000 n3 - 1800 1710 - 1785 1805 - 1880 Tx: 342000 - 357000 Rx: 361000 - 376000...
- Page 13 FT980 Series Demo Kit HW User Guide LTE Bands supportive E-UTRA Duplex Uplink Downlink Channels BAND Mode Frequency Frequency (MHz) (MHz) B1 - 2100 1920 - 1980 2110 - 2170 Tx: 18000 - 18599 Rx: 0 - 599 B2 - 1900 PCS...
-
Page 14: Ca / Mimo / En-Dc
FT980 Series Demo Kit HW User Guide B32 - 1500 L 1452 - 1496 Rx: 9920 - 10359 B34 - 2000 2010 – 2025 T/Rx: 36200 - 36349 B38 - 2600 2570 - 2620 T/Rx: 37750 - 38250 B39 - 1900+... -
Page 15: Electrical Specification
FT980 Series Demo Kit HW User Guide Electrical Specification 2.4.1. Power supply requirements 2.4.1.1. DC Power Jack DC Power Jack Requirements Nominal supply voltage Supply voltage range 10.8V – 13.2V 2.4.2. Power Consumption Below table provides typical current consumption values of FT980 for various operation modes. -
Page 16: Conduted Receiver Sensitivity
FT980 Series Demo Kit HW User Guide 5G NR Sub-6 3 (0.2W) 23 (+2dB / -2dB) n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78, n79 5G NR mmWave (OTA) _ Supported by FT980m... - Page 17 FT980 Series Demo Kit HW User Guide LTE FDD B8 -101 LTE FDD B12 -101 LTE FDD B13 -101 LTE FDD B14 -101 LTE FDD B17 -101 LTE FDD B18 -101 LTE FDD B19 -101 LTE FDD B20 -101 LTE FDD B25...
-
Page 18: Antenna Interface
FT980 Series Demo Kit HW User Guide WCDMA FDD B3 -110 -110 WCDMA FDD B4 -110 -110 WCDMA FDD B5 -110 -110 WCDMA FDD B6 -110 -110 WCDMA FDD B8 -110 -110 WCDMA FDD B9 -110 -110 WCDMA FDD B19... -
Page 19: Antenna Specification
FT980 Series Demo Kit HW User Guide Antenna Technology GNSS port B1, B2, B4, B5, B6, B8, B1, B2, B4, B5, B6, B8, WCDMA B9, B19 B9, B19 B1, B2, B3, B4, B5, B7, B1, B2, B3, B4, B5, B7,... -
Page 20: Antenna Module For 5G Nr Mmw
FT980 Series Demo Kit HW User Guide Tellestar antenna specification for FT980 for WCDMA / LTE / 5G Sub-6 Frequency range LTE Full Band Antenna 617~960, 1427~2690, 3300~5925MHz Impedance 50 Ohm Average VSWR about <=5.0 all band Gain <= 2.5dBi 2.6.3. -
Page 21: Environmental Requirements
FT980 Series Demo Kit HW User Guide Environmental Requirements 2.8.1. Temperature Range Note Operating –20°C ~ +50°C This range is defined by KC. Telit guarantees Temperature Range modules comply with requirements and to have full functionality of the module with in this range. -
Page 22: Quick Start Guide (Tbd)

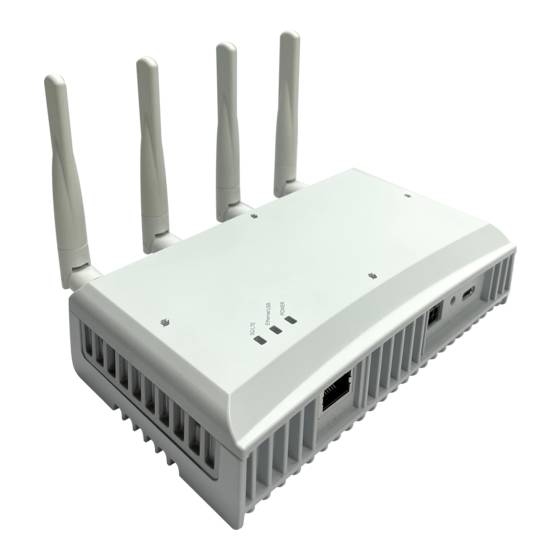

FT980 Series Demo Kit HW User Guide 3. QUICK START GUIDE (TBD) Product Overview Page 22 of 30 1VV0301672 Rev. 1 2020-10-28... -
Page 23: Step 1: Check The Accessories
FT980 Series Demo Kit HW User Guide Step 1: Check the Accessories Please make sure that following items are included in the FT980 box: AC/DC power adapter • Input: 100 – 240 VAC Output: 12V, 4A • 4 Antennas Step 2: Installation •... -
Page 24: Step 3: Leds And Ports Description
FT980 Series Demo Kit HW User Guide Step 3: LEDs and Ports Description 3.4.1. LEDs There are three LEDs on the top of the product. Color Description Red : Light On Mobile communication service is not active Red : Blinking... -
Page 25: Packaging (Tbd)
FT980 Series Demo Kit HW User Guide 4. PACKAGING (TBD) Page 25 of 30 1VV0301672 Rev. 1 2020-10-28... -
Page 26: Acronyms
FT980 Series Demo Kit HW User Guide 5. ACRONYMS Telit Technical Support Centre TTSC Universal Serial Bus High Speed Data Terminal Equipment Universal Mobile Telecommunication System UMTS Wideband Code Division Multiple Access WCDMA High Speed Downlink Packet Access HSDPA High Speed Uplink Packet Access... - Page 27 FT980 Series Demo Kit HW User Guide Vector Network Analyzer Frequency division duplex Inter-integrated circuit Long term evolution System-on-Chip Page 27 of 30 1VV0301672 Rev. 1 2020-10-28...
- Page 28 FT980 Series Demo Kit HW User Guide Page 28 of 30 1VV0301672 Rev. 1 2020-10-28...
-
Page 29: Document History
FT980 Series Demo Kit HW User Guide 6. DOCUMENT HISTORY Revision Date Changes 2020-08-19 First draft 2020-10-28 Update 1.5 Related Documents Update 2.8.1 Temperature Range Page 29 of 30 1VV0301672 Rev. 1 2020-10-28... - Page 30 Mod.0818 2017-01 Rev.0...
