SM Instruments BATCAM 2.0 User Manual

Portable ultrasonic camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Portable Ultrasonic Camera
BATCAM 2.0
User Manual
GlobalTestSupply
www.
.com
Find Quality Products Online at:
sales@GlobalTestSupply.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BATCAM 2.0 and is the answer not in the manual?

Questions and answers

Summary of Contents for SM Instruments BATCAM 2.0

  • Page 1 Portable Ultrasonic Camera BATCAM 2.0 User Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...

  • Page 2: Table Of Contents

    BATCAM 2.0 Contents General Outline ........................................2 Product Configuration ......................................2 Hardware Feature and Configuration ................................3 Connect External Device and How to Use the Device......................... 3 Connection Port Description ..............................4 How to Connect Power Adaptor ............................. 4 III.

  • Page 3: General Outline

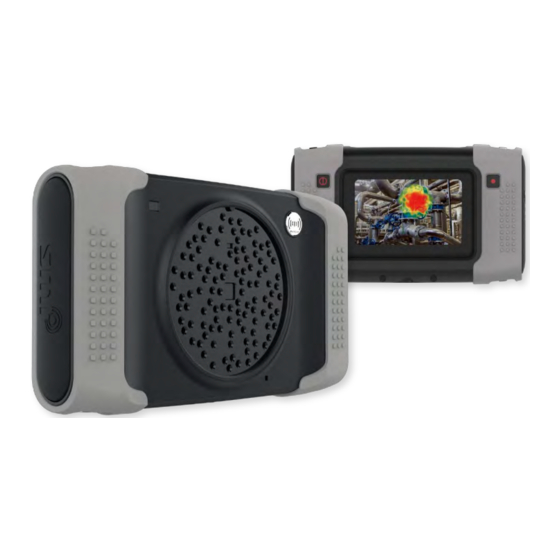

    BATCAM 2.0 General Outline BATCAM 2.0 is a portable ultrasonic camera that provides visual insight into an array of microphones and abnormal locations such as gas, air leaks and electrical discharges with high-speed FPGA-based processors. This document describes the components of BATCAM 2.0 and provides information on how the device works.

  • Page 4: Hardware Feature And Configuration

    The hardware features and configurations of BATCAM 2.0 are shown below. Connect External Device and How to Use the Device BATCAM 2.0 device body is equipped with an external device, such as a monitor, and a connector to connect the power cable as shown below.

  • Page 5: Connection Port Description

    BATCAM 2.0 and the monitor can be connected to the HDMI connector to output the videos being filmed or stored to the monitor. USB Port: User can copy data stored in BATCAM 2.0 to a USB memory device or update internal software. II. How to Connect Power Adaptor Connect the LEMO connector of the BATCAM 2.0 power adapter in the direction shown.

  • Page 6: Product Action Status Indicator(Led)

    BATCAM 2.0 III. Product Action Status Indicator(LED) Charging Status Indicator(Top Right) When the power adapter connector is connected, charging is initiated and 'LED' is displayed on the right side of the top of the product as shown below. Red(Charging) Green(Charging Complete)

  • Page 7: Interface Port Connection

    BATCAM 2.0 IV. Interface Port Connection HDMI Output User can connect BATCAM 2.0 and monitor with HDMI cable so that BATCAM 2.0 screen is output to monitor as shown above. USB Port Image and video files stored in BATCAM 2.0 can be transferred to a memory device(FAT 32 format) via the USB port.

  • Page 8: How To Use Power Button

    How to Use Power Button With BATCAM 2.0 off, pressing the power button on the left side for 2 seconds will power on and the power status indicator on the left side of the product will illuminate green. To turn off the power, press the power button again for 2 seconds to turn off the power and the power status indicator lamp off.

  • Page 9: How To Use Record Button

    BATCAM 2.0 VI. How to Use Record Button The record button allows you to save the screen you are measuring as an image(JPG) or a video(AVI). Here's how to use it: Save Image A short press of the Record button saves the screen you are measuring as an image (JPG). The saved images can be viewed by clicking the directory icon(object) on the right side of the main screen.
  • Page 10 BATCAM 2.0 VII. How to Operate Light Operation The light icon(object) the top of the screen allows you to activate two lights mounted on the front of the product. Light ON Light OFF Light ON When the light is off and you press the icon(object), the light turns on immediately and the icon(object) is changed.

  • Page 11: Component Description

    Power units are recommended to use the power units included in the product. User Manual BATCAM 2.0 User Manual This is a manual for BATCAM 2.0 users and provides a variety of use the product. III. Portable Hard Case BATCAM 2.0 Portable Hard Case Waterproof case for storing or carrying BATCAM 2.0 product...

  • Page 12: Hand Strap

    IV. Hand Strap On the right side of BATCAM 2.0 there is a hand strap which allows user to hold the product when measuring with hand as shown below. Care must be taken not to drop the product when using straps.

  • Page 13: Software

    Software Main Screen(User Interface) When the BATCAM 2.0 software runs, it appears as shown on the main screen below. Users can set and view various measurements on the main screen without having to connect to a PC. Settings consist of beamforming settings, measurement environments settings and other settings. First, the beamforming setting is for beam power, which shows the value of the size of the noise being measured in a rainbow colored chart.

  • Page 14: Icon(Object) And Function Description

    BATCAM 2.0 II. Icon(Object) and Function Description Provide a detailed description of the icon(object) and functions displayed on the main screen. At the top, a total of four icons(objects) will be shown, and the functions, definitions, and descriptions of each icon(object) are shown in the table below.
  • Page 15 BATCAM 2.0 Touch the arrow in the red box to select the language/time zone you want to change *Language: Support for Korean, English, Chinese and French *Time zone: Support for all countries Press 'Apply' button to select language/time zone Applies and when the ‘Discard’ button is pressed, the...
  • Page 16 BATCAM 2.0 Excess 200 Less than 400 cc/m Excess 400 ~ Less than 600 cc/m Excess 600 ~ Less than 800 cc/m More than 800 cc/m Light ON/OFF User can turn on or off the light mounted on the front of the hardware with this icon(object).
  • Page 17 BATCAM 2.0 is within 3 m) When the Auto option is selected, the distance between the noise source and the ultrasonic camera can be viewed in real time(within 3 m).
  • Page 18 Measurement Mount the USB memory device in a USB port located on the File(Image/Video) left side of BATCAM 2.0(if user is viewing the screen), and press Transfer to USB this icon(object) to copy the measured pictures and videos to the USB memory device. If the USB memory device is not GlobalTestSupply www.
  • Page 19 USB Memory Device is not connected When you connect the USB memory device and start transferring files, the icons(objects) below appear sequentially. BATCAM 2.0 -> USB File Transfer in Progress BATCAM 2.0 -> USB File Transfer Completed Gallery Press this icon(object) to check or delete the measurement (Check/Delete file(image/video) of BATCAM 2.0.
  • Page 20 BATCAM 2.0 User can copy the selected file to the USB memory device by pressing the button on the top right. Also, the measured image shows the information below. (This will not be recorded in the measured video.) Date/time at time of measurement...
  • Page 21 This icon(object) allows the user to check the current battery status. Check The battery status is expressed in four images below, depending on the range. When the battery is fully charged, the BATCAM 2.0 operates smoothly for about four hours. Battery Capacity 2 ~ 9 % GlobalTestSupply www.
  • Page 22 Battery Capacity 98 ~ 100 % (Full Charged) If the battery is below 1 %, a warning message below will appear. If this warning message appears, connect the BATCAM 2.0 power unit and charge it. Once the power supply has stabilized, the screen below will be switched to.
  • Page 23 Microphone Press this icon(object) to check the operation of 112 microphones Status Check mounted on the front of BATCAM 2.0 (only visible in audible mode). *Only Visible The colors of each icon(object) by operating state are as follows: In Audible...
  • Page 24 BATCAM 2.0 Fast: average update of normal speed Slow: Update slowly with slightly longer average values Slow settings can be updated slowly for fast changing sound signals to determine the location of the noise source. For a detailed description of the image average, see 'Beamforming Setting'.
  • Page 25 BATCAM 2.0 ※ When select ‘Custom’ mode, measurement frequency range can be set up by the user Measurement Mode Minimum Maximum Measurement Frequency(kHz) Measurement Frequency(kHz) Finally, on the left side of the main screen, there is an area for simple selection of measurement mode or for the user to set the measurement frequency area directly.
  • Page 26 BATCAM 2.0 ‘ Measurement Mode Frequency Range Remark Ultrasonic 25 kHz ~ 40 kHz Auto Set Audible 4 kHz ~ 20 kHz Auto Set When 'Custom' mode is selected, Custom Set up by user measurement frequency range can be set by user GlobalTestSupply www.

  • Page 27: Beam Forming Setting

    BATCAM 2.0 III. Beam Forming Setting The Beam forming setting sets the various values of beam power that show the characteristics of the measured noise in rainbow-shaped color scheme, including the display reference, image range, and image average setting. The beam power visually shows the amount of sound pressure produced in the direction of measurement of the ultrasonic camera.
  • Page 28 BATCAM 2.0 The range of images varies with the maximum value, such as the sound pressure changing in the left graph, with the minimum value changing with the maximum value. If you raise threshold, it affects the beam power displayed on the screen regardless of the setting value of the image range.

  • Page 29: Additional Setting

    To update to the latest software in BATCAM 2.0, you can proceed in sequence below. The update will take up to 5 minutes to complete, and be careful that an error may occur if BATCAM 2.0 is turned off while the update is in progress.

  • Page 30: Product Management And A/S

    V. Product Management and A/S Product management There are 112 microphone sensors in front of BATCAM 2.0. If the microphone is dirty or clogged with debris, etc., it can be cleaned at a distance of approximately 30cm under low air pressure from the compressed air injector.

  • Page 31: Product Specification

    BATCAM 2.0 Product Specification Item Specification Microphone Array Microphone Type Digital MEMS Number of Microphones 112 EA Measurement Frequency Range 2 k ~ 48 kHz Microphone Sensitivity -41 dBFS Signal to Noise Ratio (SNR) 66 dB(A) Camera View Angle Horizontal 66 degree, Vertical 54 degree Measuring Distance 0.3 m ~ 50 m(Vary depending on the...

  • Page 32: Product Certification

    BATCAM 2.0 Product Certification Electromagnetic Compatibility This product meets the requirements of the following EMC standards for measurement, control and sensitive electronic equipment used in laboratories. EN 55032:2015/AC:2016 EN 55035:2017 ✓ EN 61000-3-2:2014 ✓ EN 61000-3-3:2013 ✓ II. FCC Compliance This product meets the essential requirements of the applicable U.S.
  • Page 33 BATCAM 2.0 consultation with a steam doctor. Charging does not occur at low temperatures(32 °F / 0 °C or below) or high temperatures(113 °F / 45 °C or above). ※CAUTION: If the battery is not replaced with the correct type, there is a risk of explosion.

  • Page 34: Precautions

    BATCAM 2.0 Precautions ※ Precautions before use ※ Be sure to follow the instructions for operation of the device.  Install the product in a stable and horizontal position.  If the product is on and stored in a case, there is a risk of product damage and fire.
