Summary of Contents for multicomp pro TOUCHSCREEN 10.1

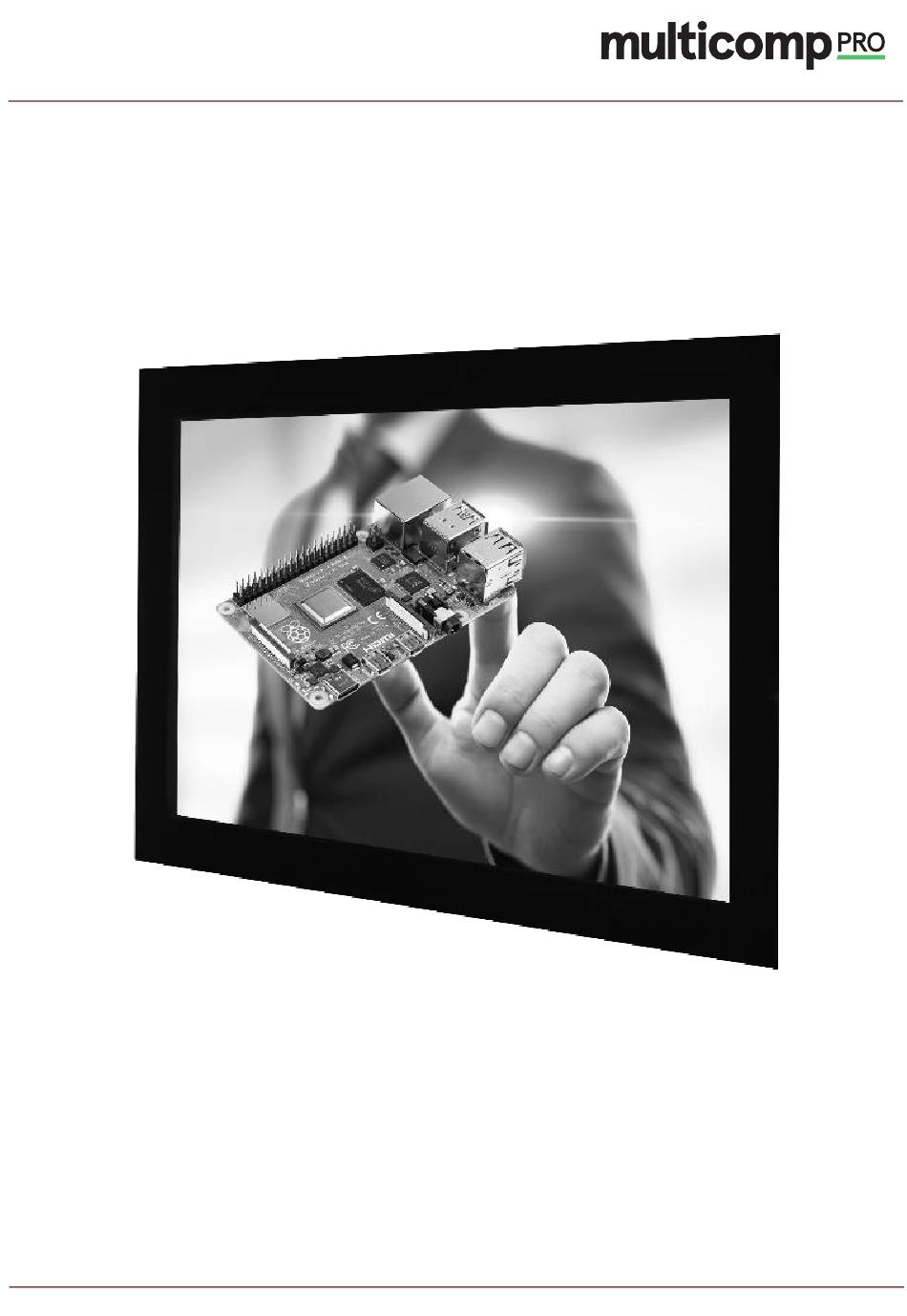

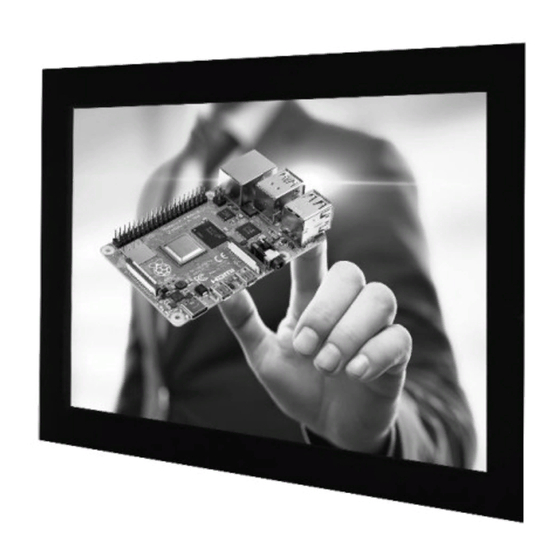

- Page 1 10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi ASSEMBLY GUIDE TOUCHSCREEN 10.1...
-
Page 2: Table Of Contents
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi Contents 1 – Description ..................................3 2 – Parts included in the kit ..............................3 3 – Package contents ................................3 4 – Cable Accessory Pack Contents ............................4 5 – Tools required for assembly ............................4 6 –... -
Page 3: Description
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 1 – Description Assembly method for Farnell Part No 3263444 - 10.1” IPS HD Resolution Touchscreen Display kit for use with a Raspberry Pi SBC 2 – Parts included in the kit Part no 3263444 includes the following items. -
Page 4: Cable Accessory Pack Contents
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 4 – Cable Accessory Pack Contents #7 – HDMI~HDMI PCB – Pi3 #8 – M2.5 Screws #3 – HDMI~M- #4 –USBA~Micro #6 – I2C Cable #9 – M2.5 Screws #5 – Internal HDMI cable-Pi4 USB Touch Cable Power Link Cable... -
Page 5: Install Raspbian Image Onto An Sd Card
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 8 - Install Raspbian Image onto an SD Card Download and install the latest Raspbian image onto a micro SD Card using Win32DiskImager & SD Card reader. This can be downloaded from: www.raspberrypi.org/downloads/ Follow the instruction on the Raspberry Pi we site for details on how to install the software onto your SD Card Once installed you will need to locate the SD Card into the Raspberry Pi board as per images below. -
Page 6: Unit Assembly - Adding The Raspberry Pi Board
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 9.1 - Unit assembly – Adding the Raspberry Pi board Locate your Raspberry Pi on top of the 4 standoffs on the HDMI Board. (see #1 image below) The HDMI Ports on the interface PCB and Raspberry Pi should be facing the same direction. This will position the USB/LAN ports for the PI facing the Orange Flexi and the GPIO Connectors towards the bottom Edge of the screen (See image #2 below) Note: If you are using a PI3 instead of Pi4, simply orientate the PI3 in the same position as the PI 4 shown below and use... -
Page 7: Unit Assembly - Securing The Pi Board
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 9.2 - Unit assembly – Securing the Pi Board Locate the screw pack (#8) and using the recommended screwdriver, (Phillips 1x100), fix your Raspberry Pi to the standoffs on the rear of the screen assembly with the 4 screws provided. See image below Raspberry Pi secured to 4 x Pillars 9.3 - Unit assembly –... -
Page 8: Unit Assembly - Connecting The Raspberry Pi - Internal Power Cable
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 9.4 - Unit assembly – Connecting the Raspberry Pi - Internal Power cable For ease of installation the TFT touchscreen assembly the Raspberry Pi can be powered from one 2.5A 12Vdc power supply via the barrel power connector on the main TFT HDMI Interface PCB. -
Page 9: Connecting The Power Supply
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 10 - Connecting the Power supply Plug the 12 VDC power supply to the mating barrel connector on the HDMI interface PCB on the rear of the TFT Display assembly. (see images below). 12vdc Power input... -
Page 10: Check Connections And Apply Power
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 11 - Check connections and apply Power Check all connections are correct and secure. Rotate the screen into an upright position, (the orange tab will then be located on the rear of the screen in the bottom right hand corner. (see image below) CAUTION: This product should be placed on a stable, flat, non-conductive surface before power is applied and when in use. -
Page 11: Product Safety Information
10.1″ IPS HD Resolution Touchscreen Display for Raspberry Pi 12 - Product Safety Information WARNING: • This product should only be connected to an external power supply rated at 12V dc, with a minimum current rating of 2.5Amp. Any external power supply used with this display should comply with relevant regulations and standards applicable in the country of intended use.
