Summary of Contents for Quanum Gyro
- Page 1 USER MANUAL -a--...

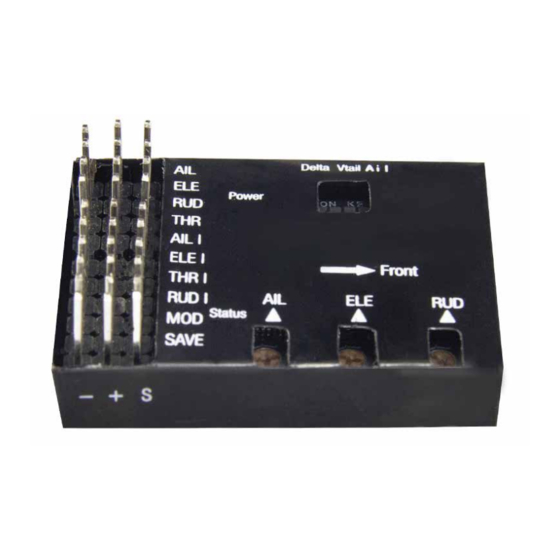

- Page 2 Package Six-axis gyros* 1 Connecting cable * 6 Double - side adhesive tape * 1 Construction Channel pins (Input and output} ® Indicator of Power ® Mode Switch Adjustable switch (aileron, elevator, and rudder} ® Indicator of working status...
- Page 3 1 � Dimensions: H: 38 28.5 13mm Weight: Input voltage: 5V Controllable channels: 3CH Mode: Manual /Stabilization /Self-stabilization Supported airplanes: Normal Airplane /Flying wing N-tail.
- Page 4 Normal airplane configuration...
- Page 5 Mode Switch channel Rescue switch channel (a 3 pole switch is required) (a 2 pole switch is required)
- Page 6 Note: All channels must be connected to the corresponding channels in your R/C reciever, otherwise an error indication light will lit up. You may also mount the unit upside down.
- Page 7 Aileron, elevator and rudder gyro gain adjustment and gyro operating direction are set by the micro trimmers on the flight control. Please see the diagram attached. So before your first flight, please see the setup tip below to ensure the gyro response is correspondent to the planes movements.
- Page 8 Mode switch order (from left to right): Delta wing mode, V-tail mode and normal configuration...
- Page 9 1. Manual (Gyro off) 2. Beginner mode: In beginner mode, the plane will be stabi- lized at all times. All 3 axis angles are limited to prevent the model over banking or pitching. When it comes to an emergency, all you need to do is to release the control sticks...
- Page 10 When your RC model aircraft is out of control or you have lost the orienta- tion of your plane, don't panic, this gyro equipped a One-key rescue function might help you to save the day. Toggle the 2 way switch on your radio and your plane will automatically correct and level your aircraft in just a split second.
- Page 11 Before you attempt to do the first flight, you should check all the control surfaces are corresponded to your servo stick movement. And you should also check the gyro if is func- tioned accordingly. To do this move the nose up and down with the hatch off and watch the elevator servo movement.
