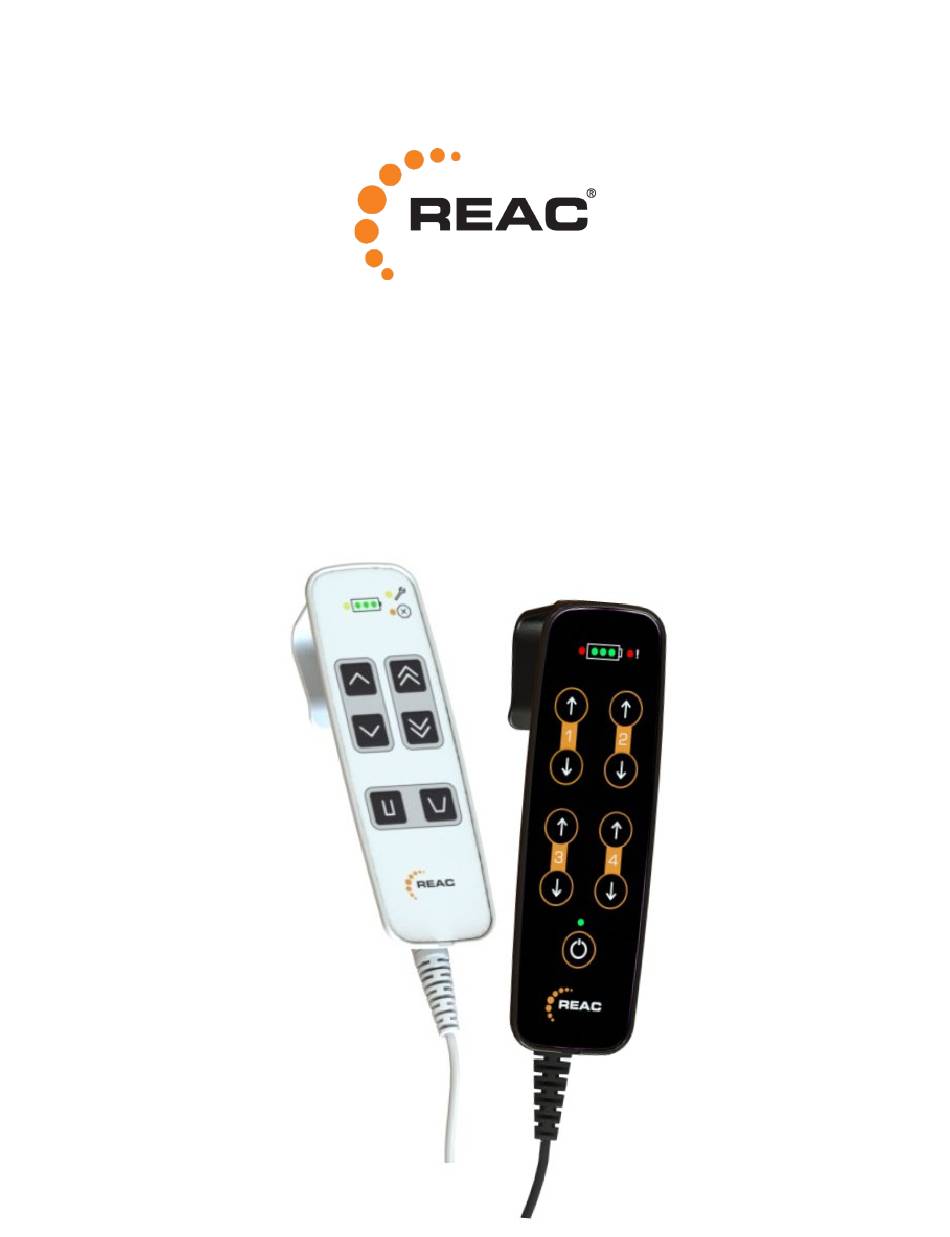

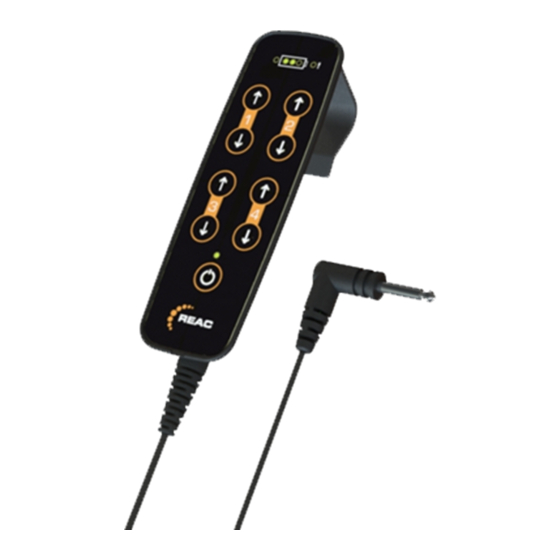

- Page 1 USER MANUAL RHC10 and RHC15 REAC HAND CONTROL www.reac.se...
- Page 2 About REAC REAC is passionate about helping people in their daily lives, and by providing a wide range of advanced power solutions suitable for many different applications, we hope to make people's lives a little bit easier. Our aim is to offer our clients an excellent service, backed up by experience and know-how in the application of advanced motion systems.
-
Page 3: Table Of Contents
LEANING AND DISINFECTION ......................... 4 ASTE DISPOSAL ..........................4 ARRANTY ............................4 EPAIRS TROUBLE SHOOTING ........................... 5 TECHNICAL DATA ..........................6 ......................6 YSTEM AND COMPATIBILITY ......................6 ASIC CHARACTERISTICS ....................... 7 NVIRONMENTAL CONDITIONS ........................ 7 UNCTIONAL FEATURES LABELING .............................. 8 www.reac.se... -
Page 4: Introduction
1 Introduction 1.1 Documentation This manual describes controls RHC10 and RCH15 Next to this manual the following documentation is available: • RHC10 data sheet RHC15 data sheet • 1.2 Symbols The following symbols will be used in this document: Failure to comply with these instructions may result in accidents involving personal injury. -
Page 5: Operating Instructions
2.2 Key lock function RHC10 has a Key lock function. To lock a channel press both buttons for that channel at the same time for 3 seconds until the alert indicator LED is lit. Channel is locked. To unlock, do the same procedur. LED is switched off. -
Page 6: Maintenance
3.2 Cleaning and disinfection Product Cleaning instructions RHC10 Clean with a damp cloth or with a brush and water. RHC15 Clean with a damp cloth or with a brush and water. Do not wash directly with a high-pressure cleaner. -
Page 7: Waste Disposal
3.5 Repairs To avoid the risk of malfunction, all repairs must only be carried out by authorized REAC workshops or by a REAC appointed representative. Products under warranty must also be returned to an authorized REAC... -
Page 8: Trouble Shooting
4 Trouble shooting Problem Probable cause Description Solution Hand Poor contact with Nothing happens when Make sure hand control is control control unit pressing a button, no LEDs properly plugged in to appears are lit. control unit. “dead” Low battery level Nothing happens when Charge batteries pressing a button, no LEDs... -
Page 9: Technical Data
5 Technical data 5.1 System and compatibility RHC10 and RHC15 are two variants of hand controls, to be used with the following REAC control units: RCB10 RCB15 • • RCB11 RCB20 • • RCB12 RCB25 • • 5.2 Basic characteristics... -
Page 10: Environmental Conditions
5.3 Environmental conditions RHC10 RHC15 Operating Ambient temperature -25 °C to +50 °C -25 °C to +50 °C Relative humidity 15% to 90% 15% to 90% Atmospheric pressure 700 to 1060 hPa 700 to 1060 hPa Storage Ambient temperature -40 °C to +70 °C -40 °C to +70 °C... -
Page 11: Labeling
6 Labeling The following symbols are used on the label of REAC Control System products. Ingress of particles (first character) and water (second IPXX character) as per EN60529. DC Voltage WEEE compliant CE-label attached based on Low Voltage Directive and EMC Directive. - Page 12 The following symbols are used on the packaging of REAC Control System products. Manufacturer/manufacturing date. Do not use if package is damaged. Fragile, handle with care Keep dry Temperature limits Relative humidity limits Atmospheric pressure limits Consult instructions for use (Can be ordered via REAC...
- Page 14 © REAC, March 2021, Issue 3.0 REAC is continuously developing our products and can make changes without prior notice. Therefore we can’t guarantee that the information stated on our webpage or in our written material always is up to date, nor can we take responsibility for any misinterpretation of our written context.
