Maxon GPSLR Operation Manual

Smartstow
Hide thumbs

Advertisement

Quick Links

Download this manual
M-08-13
DECEMBER 2008
O P E R AT I O N M A N U A L
© MAXON Lift Corp. 2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the GPSLR and is the answer not in the manual?

Questions and answers

Related Manuals for Maxon GPSLR

Summary of Contents for Maxon GPSLR

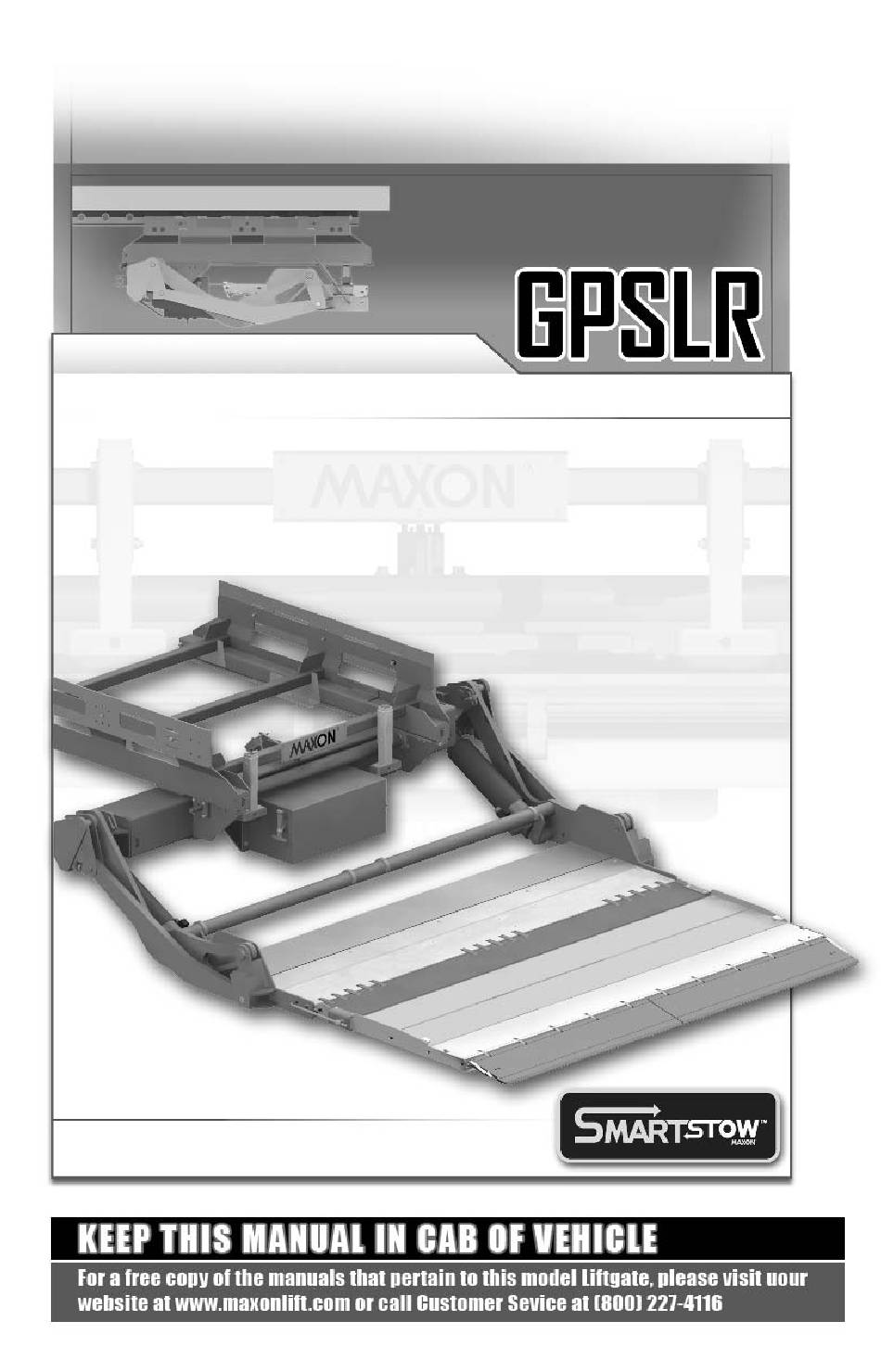

  • Page 1 M-08-13 DECEMBER 2008 O P E R AT I O N M A N U A L © MAXON Lift Corp. 2008...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS WARNINGS ................4 LIFTGATE TERMINOLOGY ............ 5 RECOMMENDED DAILY OPERATION CHECKS ....6 DECALS .................. 8 FORKLIFT ADVISORY ............12 OPERATION ................13...

  • Page 4: Warnings

    5. Comply with all attached instruction decals and warning decals. 6. Keep decals clean and legible. If decals are illegible or missing, have them replaced. Get free replacement decals from Maxon. 7. Never drive a forklift on the Liftgate platform.

  • Page 5: Liftgate Terminology

    LIFTGATE TERMINOLOGY INTERNAL CONTROL SWITCH SLIDER ASSY (INCLUDES MAIN BEAM) HYDRAULIC DRIVE MOTOR POWER PACK & PLATFORM CONTROL ASSY BUFFERS (PUMP BOX SHOWN) FRAME HYDRAULIC ASSY CYLINDER HYDRAULIC LOCK PLATFORM FLIPOVER TILT ARM LIFT ARM DUAL RETENTION RAMPS...

  • Page 6: Recommended Daily Operation Checks

    RECOMMENDED DAILY OPERATION CHECKS NOTE: Before you check the Liftgate, park vehicle on fl at ground and set the parking brake. NOTE: If any of the following operation checks reveal a need to service or repair Liftgate, do not operate the Liftgate until a qualifi...
  • Page 7 With the platform un- folded and raised to bed level, check if the platform is level (YES illustra- tion). If the platform looks like the YES illustration, you can operate Liftgate. LEVEL LINE If the platform is below level line and platform looks like the NO illustra- tion, do not operate the Liftgate.

  • Page 8: Decals

    DECALS DECAL “D” DECAL “A” DECAL “C” DECAL DECAL “G” “B” DECAL “F” DECAL “E” DECAL SERIAL PLATE (REF) P/N 268417-01 FIG. 8-1...
  • Page 9 DECAL SHEET FIG. 9-1...
  • Page 10 DECALS - Continued DECAL P/N 264507 DECAL “L” DECAL “K” DECAL “F” DECAL “L” DECAL DECAL “I” DECAL “J” “M” DECAL “A” DECAL “L” DECAL DECAL “K” DECAL “K” DECAL DECAL “H” “L” “B” DECAL DECAL “M” “H” DECAL “G”...
  • Page 11 DECAL SHEET 267432-01 FIG. 11-1...

  • Page 12: Forklift Advisory

    FORKLIFT ADVISORY WARNING Keep forklift OFF of platform. FIG. 12-1...

  • Page 13: Operation

    OPERATION 1. Pull the external power POWER switch to turn on power for SWITCH the controls (FIGS. 13- 1A and 13-1B). EXTERNAL CONTROL BOX FIG. 13-1B TURNING ON POWER WITH NOTE: The external control box EXTERNAL SWITCH requires 2-hand op- FIG.
  • Page 14 OPERATION - Continued NOTE: If necessary, release the toggle switch to stop the platform from moving. 3. Lower the platform to the ground as follows. Hold the Enable operation switch in OPERATION the on position (FIG. 14-1). SWITCH Then, hold the external toggle TOGGLE switch in the DOWN position SWITCH...
  • Page 15 WARNING To prevent personal injury & damaged equipment, ramp must be in retention position when cart is being raised or lowered on platform. CAUTION To prevent injuries caused by tripping and falling, make sure retention ramps are in the ramp position before walking on and off outboard end of platform.
  • Page 16 OPERATION - Continued CAUTION RETENTION To prevent injuries, stay PULL clear of the retention ramp path as it is moved to ramp position. Go to either side MOVING TO RETENTION POSITION of the ramp and stay out of (RH VIEW OF FLIPOVER) the way.
  • Page 17 8. When carts are on the platform, place the retention ramps in the RETENTION retention position (FIG. 17-1). Then, stand in the footprint area shown in FIG. 17-2. ROTATING TO RETENTION POSITION (RH VIEW OF FLIPOVER) FIG. 17-1 RETENTION RAMPS LOADED PLATFORM FIG.
  • Page 18 OPERATION - Continued NOTE: If necessary, release the toggle switch to stop the platform from moving. 9. Raise the platform to bed level as follows. Hold the internal toggle switch in the UP position (FIG. 18-1B) until the platform reaches bed level (FIG. 18-2). INTERNAL TOGGLE SWITCH FIG.
  • Page 19 WARNING Pulling the load from vehicle to platform can result in a fall from platform and serious injury. When unloading vehicle, always push the load out on the platform. 11. Load the platform at bed VEHICLE level as follows. Make BODY sure retention ramps are in the retention position...
  • Page 20 OPERATION - Continued 13. Unload the platform at ground level as follows. Reposition retention ramps to the ramp position (FIG. 20-1). Then, move cart off the platform as RAMP shown in FIG. 20-2. ROTATING TO RAMP POSITION (RH VIEW OF FLIPOVER) FIG.
  • Page 21 14. To stow ramps, rotate each retention ramp to the fl at posi- STOWED tion as shown in FIG. 21-1. Push the retention ramps fully into the catches (FIG. 21- 2). Then, make sure reten- ROTATING RAMP TO STOWED tion ramps are hooked to the POSITION (RH VIEW OF FLIPOVER) fl...
  • Page 22 OPERATION - Continued WARNING Never move the vehicle unless the Liftgate is properly stowed. NOTE: If necessary, release the toggle switch to stop the platform from moving. 15. Before moving the vehicle, prepare the Liftgate as ENABLE follows. Make sure load SWITCH is removed from platform.
  • Page 23 NOTE: If necessary, release the toggle switch to stop the platform from moving. 17. Stow the Liftgate as follows. Hold the Enable operation switch in the on position (FIG. 23-1). Then, hold the external toggle switch in the IN position (FIG. 23-1) until platform is stowed under the TOGGLE ENABLE...
