Warnings

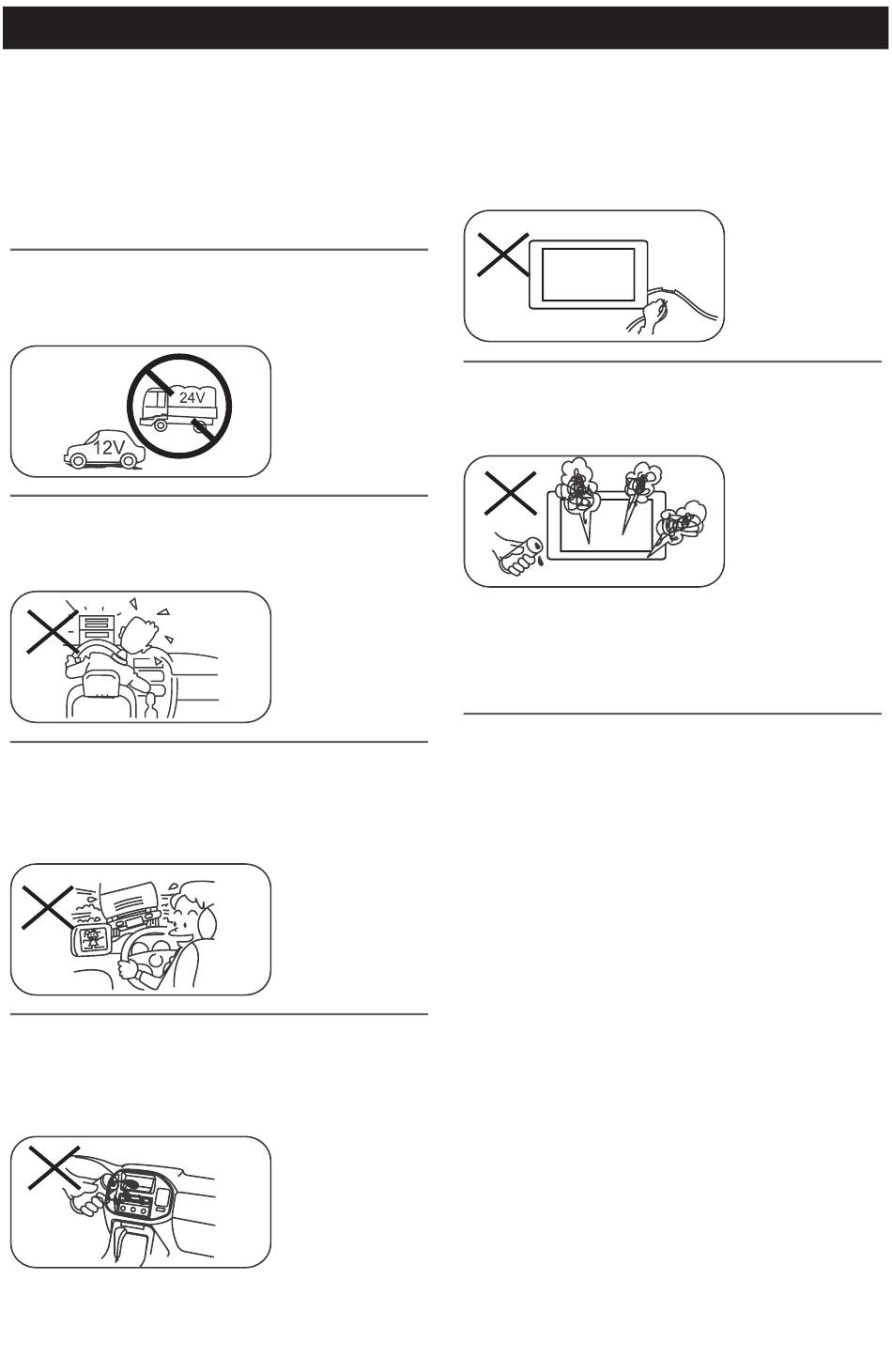

Thank you for purchasing this product.
Please read through these operating
instructions so you will know how to
operate your model properly. Please keep
this manual in a safe place for future
reference.
Only connect the unit to a 12-volt power
supply with negative grounding.
Never install this unit where operating it
may impair safe driving conditions.
Never use the front video display function
when driving, so as to prevent violating
traffic regulations or causing an accident.
Never expose this unit, amplifier, and
speakers to moisture or water to prevent
electric sparks or fire.
Do not change the fuse on the power
cord without professional guidance. Using
an improper fuse may cause damage to
this unit or even cause fire.
Please contact your nearest dealer if one
of the following is experienced:
(a) Water or other objects enter the unit.
(b) There is smoke.
(c) Peculiar smell.
To ensure safe driving, please adjust the
volume to a safe and comfortable level in
case of emergency situations.
Advertisement
Table of Contents
Summary of Contents for Evus DD-418R
- Page 1 Warnings Thank you for purchasing this product. Do not change the fuse on the power Please read through these operating cord without professional guidance. Using instructions so you will know how to an improper fuse may cause damage to operate your model properly. Please keep this unit or even cause fire.
- Page 2 Precautions 1. Never disassemble or adjust the unit without any professional guidance. For details, please consult any professional car shop / dealer for inquiry. 2. If the front panel or TFT monitor is dirty, please use a clean silicone cloth and neutral detergent to wipe off the spot.
-
Page 3: Table Of Contents
Contents Before using ..........1 Evus Link ..........11 Front Panel ..........1 About Evus Link ........11 Connect with Smartphones....11 Basic operations......... 2 Power on / off ......... 2 Other modes ..........12 Parking Brake Inhibit ......2 Listen to other devices ......12 Mute ............ -
Page 4: Before Using
Before using Front Panel 1. MicroSD card reader for map / media 2. Disc slot 3. Internal Microphone 4. [ ] Button MEDIA Press to eject a disc. 5. [ ] Power button Press to turn the unit ON. Press briefly to activate the MUTE function. Press again to resume normal sound. Press and hold to turn the unit OFF. -
Page 5: Basic Operations
Basic operations Power on / off Volume adjustment Volume Increase/Decrease Press the [ ] button to turn the unit on. The To increase or decrease the volume level, buttons on the front of the unit light up for a touch [ ] or [ ] button on the front panel. -
Page 6: Radio Mode
Radio mode Select Radio as Playing Source Select One Radio Band Touch [Radio] on the main source menu. Touch the [ ] icon on the user interface to select one radio band among FM1, FM2, FM3, AM1 and AM2. Tuner Menu Tune Auto Tuning Press and hold [... -
Page 7: Local Seeking
Radio mode Search Stations Automatically Touch [ ] to search and store 6 strongest stations in current band automatically. Manual Store 1. Tune to a station manually. 2. Touch [ 3. Touch one of the channels P1 to P6 to save the select station. -
Page 8: Bluetooth Mode
Bluetooth mode Bluetooth technology has the capability • To ensure the best conversation quality/ to wirelessly synchronize and transfer performance, stay within 3 feet (1 meter) data among devices. The Bluetooth audio of the units microphone when talking. capabilities can be used for mobile phones •... -
Page 9: Disconnecting A Bluetooth Device
Bluetooth mode Making a Call 1. Select Bluetooth function in the home menu. 2. On Option page, see the "Phone Synch" item, and press "Synch" to synchronize the phone book with the BT. If you have many contacts, this may take up to 3-4 minutes. 3. -
Page 10: Adjust Bluetooth Settings
Bluetooth mode Adjust Bluetooth Settings Music Mode 1. Pair your mobile phone to the unit. 1. In Bluetooth menu, touch [ Options ]. 2. Touch [Bluetooth Audio] on the main The option menu is displayed. menu. 2. Touch on the selected option to change 3. -
Page 11: Playback
Playback Load a Disc Insert a MicroSD card You can play video, audio or images stored 1. Open the SD card door on the top left of on the following discs: the front panel. • DVD Video, DVD-R, DVD-RW 2. Insert a MicroSD card into the lower card •... -
Page 12: Repeat
Playback Repeat A-B For Audio Files 1. Touch [ ] to display all available audio You can repeat a specific of video file (repeat folders. A-B). 2. Select a folder, then touch the desired file. 1. Touch the screen to display control menu, 3. -
Page 13: Playback Information
Playback Playback Information Touch the screen when playing back DVD and VCD discs and the playback information will be displayed on the top area of the TFT. Elapsed Time 00:01:20 00:30:17 1. Elapsed time of the current track. 2. Total time of the current track. Direct Track Entry To select a track directly, touch the [ ] icon... - Page 14 B y Evus L i n k , y o u c a n s y n c h r o n i z e t h e screen from your smart phone to the car device.
- Page 15 Other modes Listen to other devices You can connect an external audio/video device to the unit. 1. Connect the external device with the supplied AV cable. 2. Touch the upper left corner to display the main menu, touch [ ] to show other page of source menu.
- Page 16 Setup Display system 1. Touch the upper left corner to display the main menu. 2. Touch [ The settings menu is displayed. Adjust general settings 1. Touch [ General ], if necessary. 2. Touch to highlight a setting. 3. Touch to display/select an option. 4.
- Page 17 Setup Adjust video settings 1. Touch [Video]. 2. Touch the option to setup. Video settings Options Description Disable video when driving. Parking Enable video when driving. When in Park “On” mode, the screen will display WARNING information if you play the video. The warning screen will prevent the driver from watching videos for safety.
- Page 18 Setup Adjust Bluetooth Settings 1. Touch [Bluetooth]. 2. Touch an option repeatedly to select. 3. Touch blank area of the screen to exit. Bluetooth settings Options Description Turn on the Bluetooth function. Bluetooth Turn off the Bluetooth function. If the pre-paired device is within the effective range, the unit re-connects to pre-paired device automatically.
- Page 19 Select preset equalizer 1. Enter the EQ setup mode Touch the [ ] icon in the user interface and the EQ setup interface will display on the screen. 2. Select EQ mode Touch to select a desired acoustical preset option. Adjust EQ Parameters To adjust EQ parameters, touch and drag the parameters adjustment bar.
- Page 20 DAB Digital Radio (optional) NOTE: This function is available when Evus DAB 100 (sold separately) is connected. Recall the stored services Select DAB as playing source 1. Touch the [ ] button to show service list 1. Touch [ ] to enter applications menu。...
-
Page 21: Troubleshooting
Troubleshooting What appears to be trouble is not always serious. Please check the following points before calling a service center. Problem Cause Corrective action General Unit fuse blown. Install new fuse with correct rating. Car battery fuse blown. Install new fuse with correct rating. Unit can not power on Illegal operation Reset the unit. -
Page 22: Device Connections
Device connections Notes of connection ● This unit is designed to be used in a vehicle with a 12-volt battery and negative grounding. Before installing this unit to a recreational vehicle, a bus, or a truck, make sure the battery voltage is appropriate for this unit to be used, otherwise, install a transformer by professional to convert the output voltage to 12V. -
Page 23: Parking Brake Cable Connections
Device connections Parking brake cable connections Reverse driving cable connections... -
Page 24: Specifications
Specifications General Reference Supply Voltage ..............12V(DC) Operating Voltage Range ............10.8 - 16.0V(DC) Max Operating Current .................15A Grounding System ................Negative Dimensions(WXHXD) ............178X100X164mm Weight(main unit) ..................1.89kg Signal Noise Ratio ..................≥55dB Residual Noise Sensitivity (S/N=30dB) ..........≤15dBμV Frequency Response (±3dB) ............30Hz~15KHz Station Seeking Level .............. -
Page 25: Wiring Diagram
Wiring diagram (Black) External Microphone (White) AUX IN L (Red) AUX IN R (Yellow) BLACK KEY A AUX IN VIDEO WHITE KEY B BLUE USB Connector USB Connector Green with white) P.CONT (Blue with white) POWER Blue with white P.ANT Brown ILLUMI Yellow... - Page 26 CLASS 1 LASER PRODUCT PN: 127075007174...
