TigerStop AMP2C Replacement

2008-E2

Description and Use

The amplifier (Figs. 1, 2), located inside the motor

box (Fig. 3), is the electronic device the drives all

TigerStop machines.

The procedure for removal and replacement of

the amplifier is simple to understand, easy to do.

The motor box is disassembled, the half that the

amplifier is mounted to is removed and replaced,

and the box is reassembled. As easy as that!

AMP2C

starts with TigerStop serial number 982567.

Before the use of the internal line filter, an external line filter was sold with most machines.

AMP2C

with internal line filter starts with TigerStop serial number 0611226.

AMP2C

with internal line filter starts with TigerFence and TigerCrossCut serial number

0611027.

Your TigerStop serial number is stamped into the metal of the fence beam on the forward face

at the far end. You can also see the serial number on TigerStops version 3.5 or higher by

accessing the service menu.

Amplifier Replacement

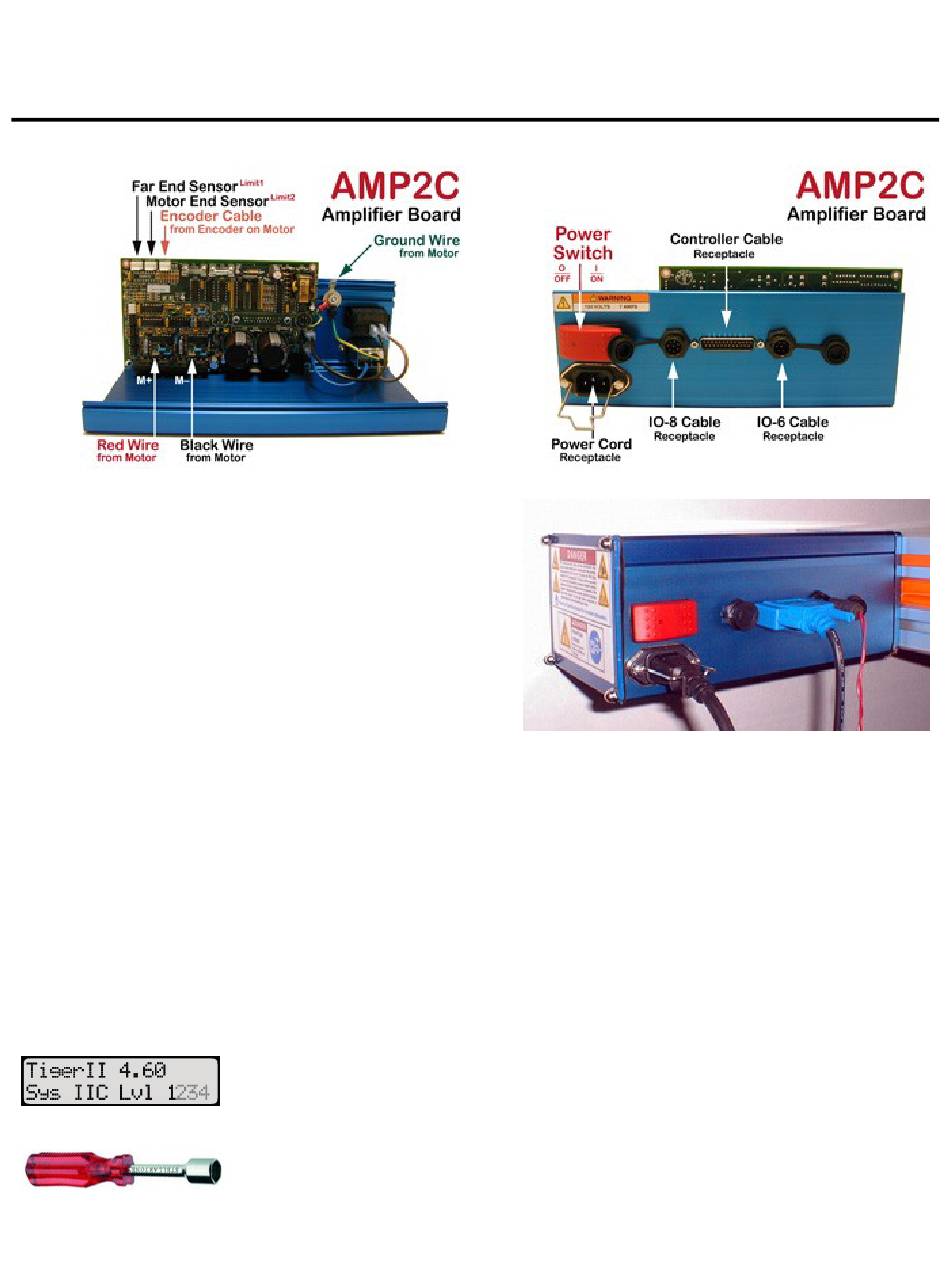

Fig. 1

...Your TigerStop's software version and level are displayed at startup.

...3/8" nut driver or socket wrench to remove and replace acorn nuts.

Versions 3.0 to 4.7

AMP2C

Fig. 2

Fig. 3
