R
Sealed Outdoor Cabinet with Vertical 5-RU-Rack
CONTENTS
1. GENERAL
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
1.
GENERAL
1.1
Document Purpose
This document provides general, installation, and specifica­
tion information for the Westellr Boxert BXM05V19-NMT
Outdoor Cabinet with a built-in, vertically-oriented, 5-RU by
19" relay rack. This product is designed to provide Network
equipment protection in outdoor environments. The intended
audience for this document is engineering, operations, and
installation personnel of MSO, Telco, and utility companies.
See Figure 1 for a closed view of the product, and Table 3 for
product ordering information and available options to use with
the BXM05V19-NMT.
- NOTE -
Hereafter, the BXM05V19-NMT Boxer cabinet also may be
commonly referred to as the "Boxer 5" or cabinet."
1.2
Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. Revision B updates the Boxer part number and
updates Paragraph 1.3.
1.3
Product Purpose and Description
Boxer is a compact, NEMA 4, weather-tight, outdoor cabinet
that houses and protects a wide range of electronic equipment.
Up to 5 RUs (8.75") of rack space (19" racks) is available to
mount Network equipment inside the cabinet, such as:
S
Ethernet switches
S
Multiplexers
S
Fiber terminating equipment
S
Copper bonding solutions
S
Radio equipment
S
Smart Grid equipment
S
Media converters
S
xDSL boxes
CopyrightE 2012 Westell, Inc. All rights reserved.
Westellr is a registered trademark of and Boxert is a trademark of Westell, Inc.
Boxert BXM05V19-NMT
PAGE #
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
1
2
4
9
9
9
10

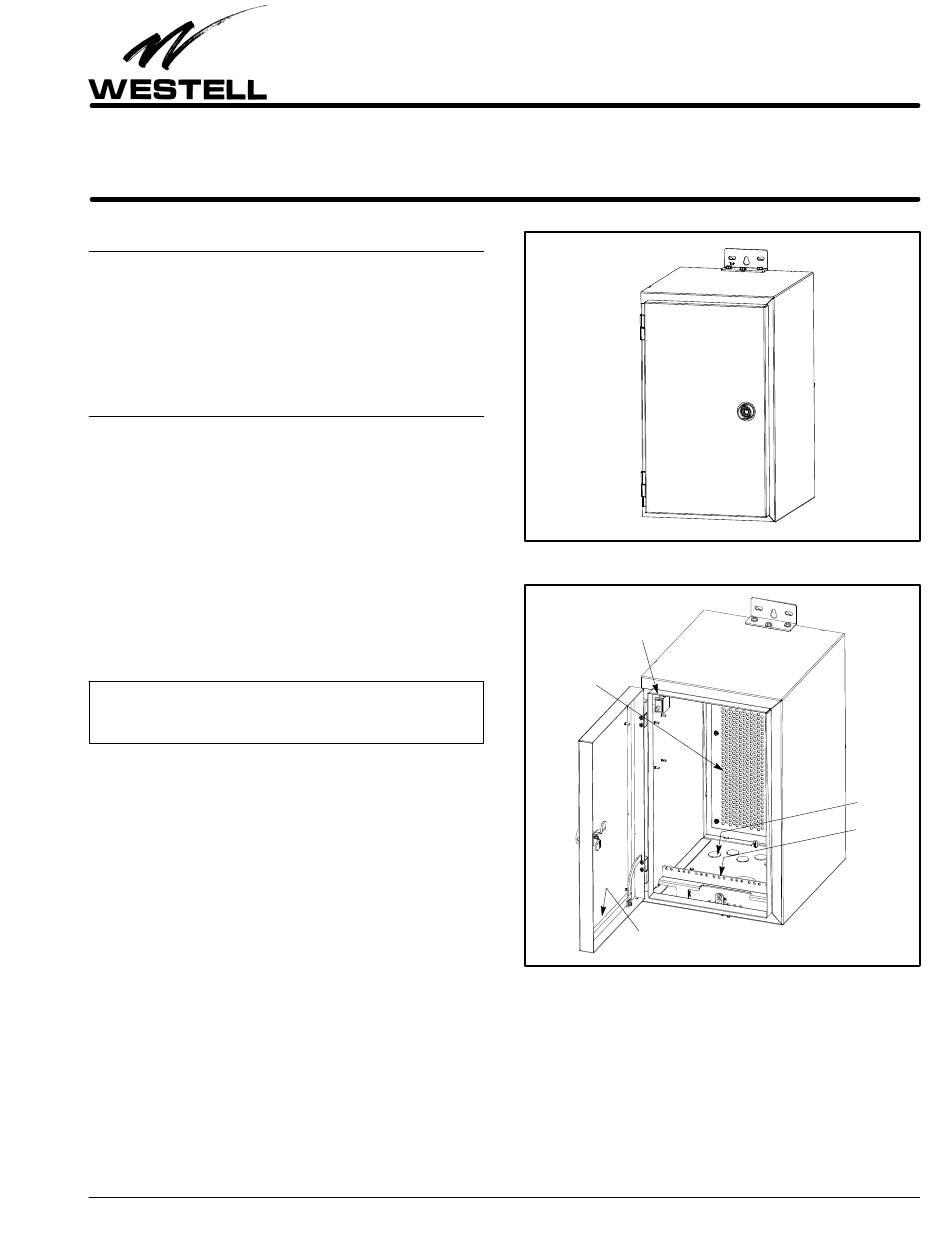

Figure 1.
Isometric Closed View of Boxer Cabinet
Door Switch
Mesh Interior
Back Plate
Weather Stripping
Figure 2.
S
DS3 hand-offs, and
S
Virtually any equipment than can be mounted on the in­
ternal mesh backboard or in a 19" rack
Adjustable rack channels are mounted inside the cabinet at the
top and bottom walls, for a rotated-rack effect, allowing equip­
ment to be mounted vertically in the cabinet and minimizing or
streamlining the cabinet width. Boxer supports rapid equip­
Section BXM-05V-20A
Equipment Issue A
030-101643 Rev. B, May 2012
Knock-outs
Open View of Boxer Cabinet
Page 1 of 12
Cable
Access
19" Rack
Channel
(see also
Figure 8
Figure 14)
1205IARB

Advertisement

loading
Need help?

Need help?

Do you have a question about the Boxer BXM05V19-NMT and is the answer not in the manual?

Questions and answers

Summary of Contents for Westell Boxer BXM05V19-NMT

  • Page 1: Table Of Contents

    Boxer supports rapid equip­ 1205IARB CopyrightE 2012 Westell, Inc. All rights reserved. Westellr is a registered trademark of and Boxert is a trademark of Westell, Inc. Page 1 of 12...
  • Page 2: Features

    Section BXM‐05V‐20A 030‐101643 Rev. B ment installation and wiring through the use of adjustable and removable 19” rack channels. To ensure easy access for input Hex cup‐washer bolt Padlock holes and out cabling, Boxer includes multiple cable access hole requires 216 tool or (insertion of pad­...
  • Page 3 Section BXM‐05V‐20A 030‐101643 Rev. B Mounting Bracket Knock-outs on Floor (2 large and 6 small 25.18" knock-outs) (between mounting holes) 23" high 14" wide Figure 5. Rear Isometric View Figure 6. Front View Showing Knock‐out Locations tional security is available when a padlock is inserted through the two holes in the protruding cylindrical lock wall: a padlock 2.1.5 Bottom Floor Knock‐outs...
  • Page 4: Installation

    ‐ DESICCANT NOTE ‐ following proper safety precautions, To prevent condensation during shipment and storage, Westell includes a desiccant pack within the Boxer cabinet. Once the reviewing pre‐mounting considerations, such as selecting electronic equipment is installed and turned‐up, the internal the mounting type and location, and preparing the mount­...
  • Page 5 Section BXM‐05V‐20A 030‐101643 Rev. B Following Proper Safety Precautions Knock‐Out Removal Tools  V Hammer The cabinet should be installed only by authorized and trained  V Punch personnel. Always exercise caution and follow all safety pre­ cautions.  V Pliers Cabinet Mounting Tools, Equipment, and Hardware Important Safety Instructions (Please Save)  V Tape measure...
  • Page 6 25.18” Pole or post of H‐frame (on centers, see Figure 5). Westell recommends a height of 30” from the ground. In addition to allowing for a com­ fortable installer working height, leave adequate space...
  • Page 7 Measure and mark the top mounting hole locations on the Ground cables and installed equipment. As each cable and wall. Westell recommends a height of 30” from the piece of equipment is mounted inside the cabinet (in the ground. In addition to allowing for a comfortable installer following sections), connect it to a ground lug or post pro­...
  • Page 8 Section BXM‐05V‐20A 030‐101643 Rev. B ‐ EXTRA RU NOTE ‐ An extra rack unit of equipment mounting space is available at Upper Rack Channel both the left and right sides of the cabinet; however, these RUs have limited front access (partially obstructed). Always follow company practices and the guidelines below when mounting equipment inside the cabinet.
  • Page 9: Service & Repairs

    Door Alarm Sensor Assembly (part # 080‐300389) Warranty Replacing the Door Alarm Sensor Westell warrants this product to be free of defects at the time Door alarm sensor switch cannot be field repaired. Should a of shipment. Westell also warrants this product to be fully func­...
  • Page 10: Specifications

    Weight 20 lbs. 9.08 kg (empty, approx.) Westell recommends that its products be recycled at the end of their product life. For Westell products that have reached their product End Of Life Operating Temperature ‐40° to 149°F ‐40° to 65°C...
  • Page 11 Section BXM‐05V‐20A 030‐101643 Rev. B 1 .13 KNOCK-OUT, 6 PLCS Figure 15. Knock‐out Locations and Sizes 1205IARB...
  • Page 12 Section BXM‐05V‐20A 030‐101643 Rev. B 7" 7" 1.5" 1.5" 0.625" dia. 27" 25.2" 23" 0.375" dia. 0.375" dia. Depth (door closed) = 18" Figure 16. Front View, Door Open 1205IARB...
