- Page 1 E le c t r ic Cr ane Read this manual carefully before use and keep it for future reference. Failure to do so may result in injury, property damage and may void the warranty. Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description or packaging.
-
Page 2: Table Of Contents
Electric Crane Contents Contents Quick Start Guide Getting to know your crane Assembly Wiring Operation CE declaration of conformity © Rhino Winch Co... -
Page 3: Quick Start Guide

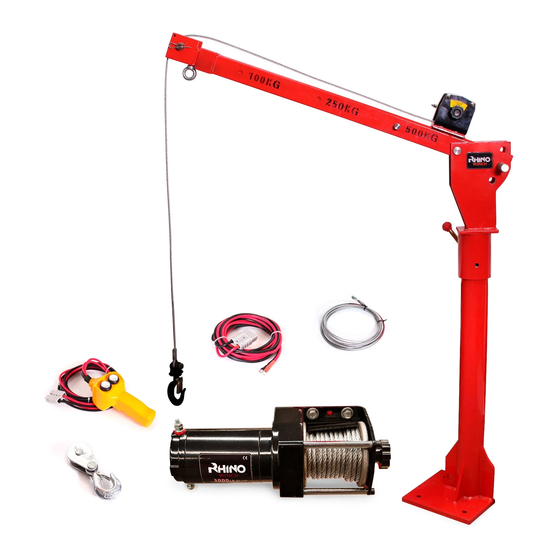

Getting to know your crane 1. Extendable boom 6. Mounting foot plate 2. Arm 7. 360° locking arm 3. Winch 8. Boom locking points 4. Vari-angle locking points 9. Double-line eye 5. Column 10. Boom pulley © Rhino Winch Co... -
Page 4: Assembly
Pull the clutch out and rotate to lock in Remove the pin to feed the cable over the freespool position. Be sure to return the boom pulley. Retun the pin and before use. secure with the split pin. © Rhino Winch Co... - Page 5 Electric Crane 250mm 170mm 35mm Secure the crane to a solid platform Foot plate dimensions. using the four holes in the foot plate. © Rhino Winch Co...
-
Page 6: Wiring
2. Connect the negative wire from the winch to the remote control ‘11+13’ 3. Connect the positive wire from the quick connector to the battery ‘14+15’ 4. Connect the negative wire from the quick connector to the battery ‘14+15’ © Rhino Winch Co... -
Page 7: Operation
You can use the double-line eye with a winch in and out. Never take your eye off snatch block to half the effective load on the crane in operation and pay attention the winch. to the winch to avoid bunching of the cable. © Rhino Winch Co... - Page 8 Electric Crane Dimensions 1220 1470 1720 © Rhino Winch Co...
- Page 9 1490mm Rotation 360° Lifting cable 4.8mm x 6.5m Line speed (no load) 3.6m/min Power requirements 12V DC 125 amps Switch cable 4.2m Mounting foot plate 250x250x18mm Mounting foot plate hole pattern 170x170mm Net weight 58.5KG (129lb) © Rhino Winch Co...
-
Page 10: Ce Declaration Of Conformity
The technical documentation is kept by: Union Mart Ltd Date: 21/02/2017 Signed: Michael S McQuaide Managing Director Name and address of the manufacturer: Union Mart Ltd, Company No. 8384155. Registered address: Unit 4, Mauretania Road, Nursling Industrial Estate, Southampton SO16 0YS, United Kingdom. © Rhino Winch Co...
