Summary of Contents for Rabbit DALItest
- Page 1 TesTer DALItest English...
- Page 3 Thank you for purchasing the DALItest tester Please, read the operation manual and follow the rules thereof. Table of contents Intended use and mode of operation Device launching and description of functions Device power supply Tester connection fig. 1 DALItest...
- Page 4 INTENDED USE AND MODE OF OPERATION The DALItest device servers to verify proper operation of lamps adjusted to be controlled via the DALI interface. Testing may be performed in two ways. The first - automatic. In this mode, the lamp’s power at the test’s initial stage is smoothly adjusted from a minor value to the maximum value (ramping).
- Page 5 At intermediate levels, single pressing of a button causes the LED to flash. Additional protection: Should the user not turn the device off having finished the test, the device shall turn off automatically after 2 minutes of inactivity. DALItest...

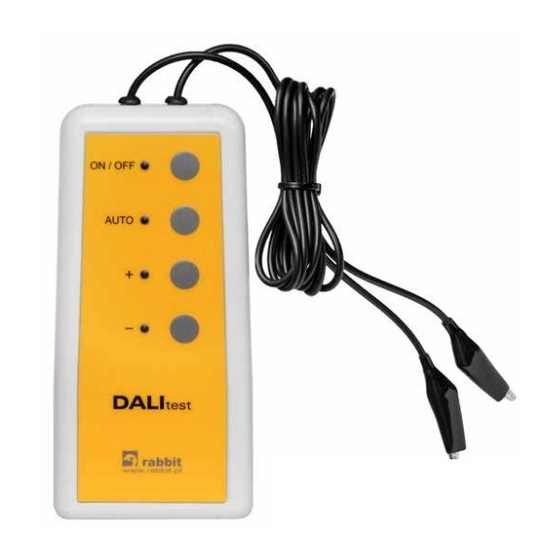

- Page 6 The device has two single-color wires with connectors adapted to be braced on DALI bus wires. It is possible to connect wires to a single lamp without maintaining any polarity, in contrary to the 1-10 standard, where maintenance thereof has a significant influence on proper control of the lamp’s power. DALItest...
- Page 7 WARRANTY CARD WArrANTY CONDITIONs 1. The manufacturer assures the highest quality of products included in this Warranty Card. 2. The warranty period is 2 years from the sale date. 3. The warranty condition is to deliver the claimed product with intact seal to the service company with the warranty card and purchase proof.
- Page 8 DEVICE NAME AND TYPE SALE DATE ........... wariant 1 IDENTIFICATION NO............ SERVICE COMPANY ADDRESS Rabbit Sp. z o.o. ul. Krakowska 141-155 Pantone 2748 CV 50-428 Wrocław Pantone Warm Red CV c-coated (papier powlekany) u-uncoated (papier niepowlekany) tel./fax: +48 71 328 50 65 v-vernished (lakierowany) e-mail: rabbit@rabbit.pl...
