PRG-CASE2
Features
•
Easy connect to programmer PRG-MUL2
•
LED indicator for programming status
•
Long life push button for mass programming application
•
Optional Built-in buzzer for programming status
Description

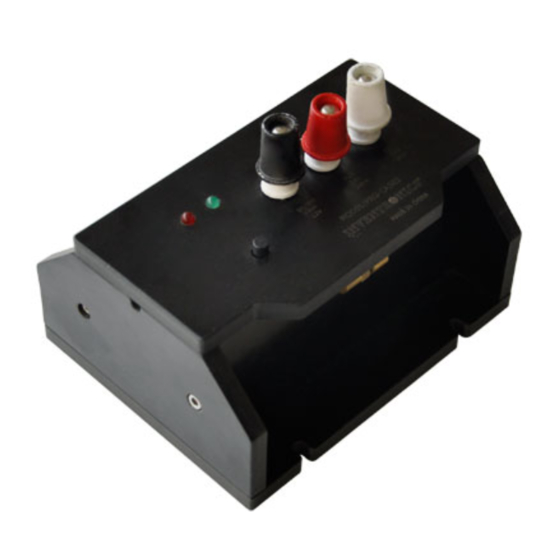

The PRG-CASE2 is a mass programming tool designed for PRG-MUL2. It contains a green and red LED
indicator, a programming push button, and a buzzer. PRG-MUL2 can easily be installed inside the CASE
using the 3 provided plug-in cables, then the CASE can be mounted to a flat surface by the mounting holes.
www.inventronics-co.com
Rev. A
Tel: 86-571-56565800
1 / 4
Specifications are subject to changes without notice.
Fax: 86-571-86601139
Fixture for mass programming
sales@inventronics-co.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Inventronics PRG-CASE2
- Page 1 Optional Built-in buzzer for programming status Description The PRG-CASE2 is a mass programming tool designed for PRG-MUL2. It contains a green and red LED indicator, a programming push button, and a buzzer. PRG-MUL2 can easily be installed inside the CASE using the 3 provided plug-in cables, then the CASE can be mounted to a flat surface by the mounting holes.
- Page 2 PRG-CASE2 Rev. A Quick Installation 1. Mount the PRG-MUL2 into the PRG-CASE2 with the provided screws. 2. Connect the USB cable to the PRG-MUL2. 3. Connect the cable number 2 to the PRG-MUL2. 4. Connect the cable number 3 to slot besides the push button in PRG-MUL2.
- Page 3 Fixture for mass programming PRG-CASE2 Rev. A Packing List Packing List Function PRG-CASE2 Mass programming tool. 6 Pin Plug-in Cable Connects programmer and PCB(Led indicator, Buzzer, Button) 3 Pin Plug-in Cable Connects programmer and programming terminals. Mechanical Outline 3 / 4 Specifications are subject to changes without notice.
- Page 4 Fixture for mass programming PRG-CASE2 Rev. A Revision History Description of Change Change Rev. Date Item From 2015-05-06 4 / 4 Specifications are subject to changes without notice. www.inventronics-co.com Tel: 86-571-56565800 Fax: 86-571-86601139 sales@inventronics-co.com...
