MANUFACTURERS INSTRUCTIONS
3BE390846NI

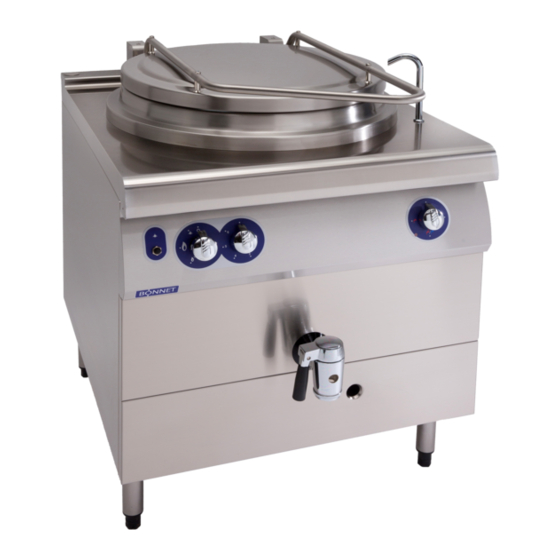

ADVANCIA
BOILING PANS
GAS & ELECTRIC
Part A: Technical characteristic
Part B: Installation manual
•
The installation and any subsequent work should be undertaken by approved
personnel and in compliance with current standards and regulations.
•
Anyone modifying this equipment assumes complete responsibility for it.
•
These units should only be used in a well ventilated environment
•
Read these instructions carefully before installation.
•
It is vital that these units remain on their pallets whilst being moved and until they
- WARNING -
are in their final location.
Advertisement
Table of Contents
Related Manuals for Bonnet ADVANCIA
Summary of Contents for Bonnet ADVANCIA
- Page 1 ADVANCIA BOILING PANS GAS & ELECTRIC MANUFACTURERS INSTRUCTIONS Part A: Technical characteristic Part B: Installation manual - WARNING - • The installation and any subsequent work should be undertaken by approved personnel and in compliance with current standards and regulations.
-
Page 2: Table Of Contents
LIST OF AUTHORISED GASES / PRESSURES PER CATEGORIES & COUNTRIES ........17 CHANGING FROM ONE GAS TO ANOTHER....................18 GAS FLOW RATES AND POWER........................19 TABLE OF JETS and air adjustments ........................19 BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... -
Page 3: A) Technical Characteristics
7,50 10,90 0,00 1010 1068 B1A9MA6IBG 900: Boil.Kettle 60L Indirect Heat. (Gas) a.c. 0,10 0,40 11,10 0,86 0,88 1,17 1,33 1,33 1010 1068 BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... -
Page 4: Data Plates
NOTE: Both the gas and pressure for which the appliance is set must be authorised in the country in question. Check this point in the section: Changing the appliance from one gas to another. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... -
Page 5: Electric Boiling Pan
- The serial number (Fab.Nr.) - The date (Date). Data plate Free standing boiling pan Cantilevered boiling pan Location of data plate Location of data plate BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... -
Page 6: Installation: General
2.4 LEVELLING The appliance is levelled by means of its adjustable legs (20mm spanner). When level the integral slope within the tank will ensure it drains completely. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... -
Page 7: Installation: Locating
- Fit the lower support beam to the wall. Note: This beam must be level. - Fix the sheet template supplied to the wall with two 5mm Ø screws. Ensure it is level. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... - Page 8 - Position the units on the brackets and tighten the brackets fully. Note: The units should rest on the support beam Bracket Support beam BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex...
-
Page 9: Cantilevered
1520 The fixing brackets must be able to support a force of 4000 N/m (2 brackets for units that are 1200 to 1600). BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... - Page 10 - Fix adjacent units together, at the rear through the sides of the flue vents and at the front through the front edge, in both cases using 5 x 16mm setscrews and 5mm washers. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans...
-
Page 11: Assembling Units On Individual Legs
3.2 ASSEMBLING UNITS ON INDIVIDUAL LEGS - Fix adjacent units together, at the rear through the sides of the flue vents using 5 x 16mm setscrews and 5mm washers BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... -
Page 12: Assembling Units On A Concrete Plinth
There are two possible solutions: 1) Neutral unit on a 200 or 400mm technical compartment. 2) 400mm services cupboard with any possible cooking top or neutral unit (but not induction) BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... - Page 13 - Fix the left and right hand trims with 2 screws at the front and one to the rear. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans...
-
Page 14: Installation: Connections
(all metallic structures at the same potential) by means of the terminal provided for this purpose located next to the cable gland. The manufacturer accepts no responsibility whatsoever if these instructions are not followed BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... -
Page 15: Electric Boiling Pans
(all metallic structures at the same potential) by means of the terminal provided for this purpose located next to the cable gland. The manufacturer accepts no responsibility whatsoever if these instructions are not followed. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... -
Page 16: Gas Connection
Gas connections must meet current regulations (DTU 61.1) and be carried out only by qualified registered installers. Final connections are to a ½” male gas connection Free standing boiling pans Cantilevered boiling pans Gas connection Gas connection BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... -
Page 17: Water Connection
- connect the outlet directly to drain using 6mm internal diameter silicone hose - block the outlet with an 8mm M4 setscrew (note: the purge will no longer work) BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans... -
Page 18: Changing From One Type Of Gas To Another
G 25 II 2L3B/P G 30 28-30 G 31 G 25 II 2L3P G 31 Norway G 30 28-30 I 3B/P G 31 BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... -
Page 19: Changing From One Gas To Another
G 30 G 31 None 3B/P * Change of category to be undertaken only under our responsibility or that of our local agent. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... -
Page 20: Gas Flow Rates And Power
RA: Air adjustment The air regulation should be adjusted to that shown in the table: d ∅ ∅ ∅ ∅ Code 027367Q 22.5 027367R BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex... - Page 21 RA: Air adjustment The air regulation should be adjusted to that shown in the table: d ∅ ∅ ∅ ∅ Code 027367Q 22.5 027367R BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex...
- Page 22 RA: Air adjustment The air regulation should be adjusted to that shown in the table: d ∅ ∅ ∅ ∅ Code 027367Q 22.5 027367R BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex...
- Page 23 Code 027367M 027367N Pilot air adjustment Airflow can be adjusted using the collar that obstructs 1 of the two primary air holes. Collar BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans F-77292 MITRY MORY Cedex...
- Page 24 - If the flame is weak and yellow this indicates a lack of primary air. In this event move the collar towards the burner (increase dimension d). - If the flame flickers and lifts this indicates an excess of primary air reduce dimension d accordingly. BONNET GRANDE CUISINE Registered office: Rue des Frères Lumière - Z.I Mitry Compans...
