Connect Antenna 1 Here
Connect Antenna 2 Here

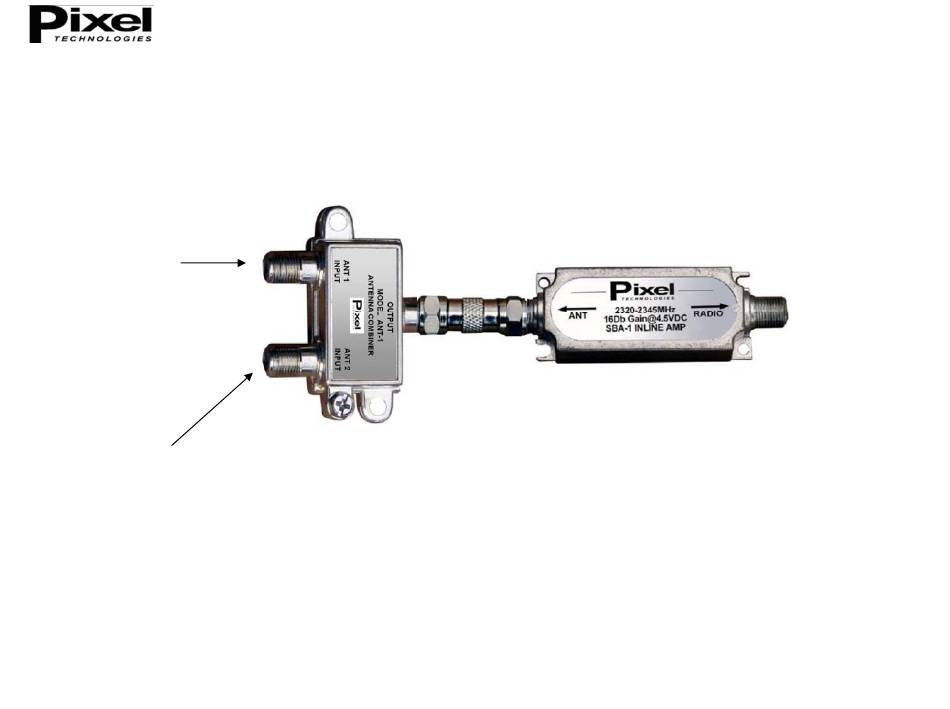

Model ANT-1 Antenna Phase Matching Combiner
Model ANT-1 Antenna Combiner Kit
Combine the output of two different Model PRO-500
antennas for simultaneous reception of XM and Sirius
satellite signals from each antenna onto a single feed
cable
Output to radios
Sheet 1
Advertisement
Related Manuals for Pixel ANT-1
Summary of Contents for Pixel ANT-1
- Page 1 Combine the output of two different Model PRO-500 antennas for simultaneous reception of XM and Sirius satellite signals from each antenna onto a single feed cable Connect Antenna 1 Here Output to radios Connect Antenna 2 Here Sheet 1 Model ANT-1 Antenna Phase Matching Combiner...
- Page 2 ANT A Ant A To Radios Ant B ANT B This device is designed to be used to combine the output of two antennas (Model PRO-500s) into a single feed that can be used with both XM and Sirius radios simultaneously. Since the satellites for XM and Sirius are in different parts of the sky, two antennas are required to receive the signals optimally which share contiguous portions of the same 25 MHz band located at 2.33 GHz.
