SKYT RAXX 2.1
����
Manual
Version 1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2.1 and is the answer not in the manual?

Questions and answers

Summary of Contents for SkyTraxx 2.1

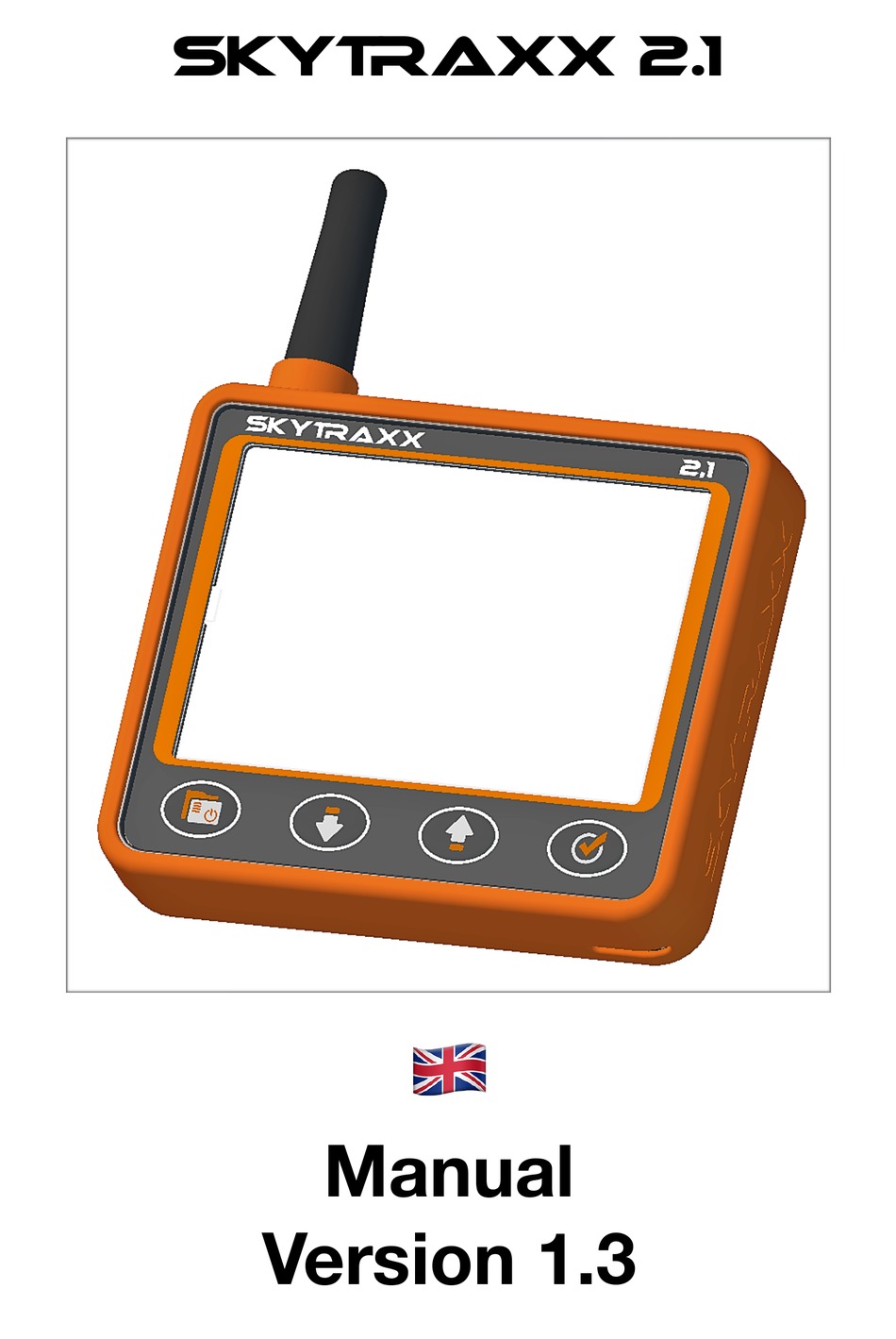

  • Page 1 SKYT RAXX 2.1 ���� Manual Version 1.3...
  • Page 2 The flying instrument has been specially tailored to the needs of paragliding and hang gliding. The company Skytraxx GmbH reserves the right to make changes to the contents of this manual as well as to its products at any time without notice.
  • Page 3 SKYTRAXX GmbH rejects any responsibility that may be caused by incorrect information on flight. It is the sole responsibility of the pilot to make correct flight decisions. SKYTRAXX GmbH is not responsible for any damage resulting from any erroneous or missing data of the flight instrument. SKYTRAXX Manual Version 1.3...
  • Page 4: Table Of Contents

    7. Device Status 8. Online Update 9. Update device without WiFi 10. Automatic QNH Set 11. Statistic 12. FLARM 13. Shut Down 14. RESET 15. Technical Data 16. Waterlanding 17. Warranty 18. Disposal 19. Disclaimer SKYTRAXX Manual Version 1.3 ®...
  • Page 5: Device View

    ON / OFF + Menue- DOWN Button Button ⚠ If the menu key is held down for more than 10 seconds, a reset is triggered and the device restarts. It will not delete any data. SKYTRAXX Manual Version 1.3 ®...
  • Page 6: First Steps

    A charge indicator is shown on the display. Pressing the menu button will turn on the SKYTRAXX and continue charging. If you are on the screen pages and insert the USB cable into the PC, the USB symbol appears on the display.
  • Page 7: Mode

    Manually the status can be changed from a list. A selectable status is "SOS call". If this is set, all users in the reception area are informed. Users are automatically navigated to your location. ⚠ This status should only be used in an emergency. SKYTRAXX Manual Version 1.3 ®...
  • Page 8 If the friend option is ticked, other users will be hidden. Distance 1m @ E means: 1 meter away to the direction east. The compass rose in the classical screen now indicates the direction of the FANET buddy you are following using an arrow. SKYTRAXX Manual Version 1.3 ®...
  • Page 9: Wind Station

    The track track with altitude profile is displayed. With the up and down button it is possible to go through the flight. 6.5.3. Play-back The selected flight is played on the display The playback speed can be controlled via the up and down buttons. SKYTRAXX Manual Version 1.3 ®...
  • Page 10: Set As Trail

    In the navigation menu you will find 5 more entries: 6.6.1. Goto Existing waypoints can be sorted before selection. After selecting a waypoint, the middle arrow shows the direction to the waypoint. The middle arrow shows the direction to the waypoint. SKYTRAXX Manual Version 1.3 ®...
  • Page 11: Route

    The competitor (corresponding subfolder of "competition") must have a waypoint list in GPX format. This list represents i.d.R. the competition management. The easiest way to connect the SKYTRAXX via USB to an external computer is to copy the file directly into the competition directory.
  • Page 12: Map Overflight

    Map Overflight With this function one can "fly over the map", e.g. to display airspace borders. The control of the overflight is done with the middle buttons. The OK button switches between zoom and direction. SKYTRAXX Manual Version 1.3 ®...
  • Page 13: Custom Waypoints

    Rate at which the vario will start beeping • Silent on Ground Vario is enabled after takeoff • Sensitivity: 10% = inertially, 100% = agil • Integration Time: Averages the vertical speed over the period • Tone Profile: Changers the acoustic behavior SKYTRAXX Manual Version 1.3 ®...
  • Page 14: Volume

    The compass is aligned in the direction of flight. The gray arrow indicates where the wind comes from. In this case, the wind comes from behind. The indicator on the Variobar displays the average rise over the integration time. SKYTRAXX Manual Version 1.3 ®...
  • Page 15 Only after reaching the triangle is closed. Here is an example flight explains how an optimal FAI triangle is flown. Pic 1: The pilot first flies in one direction. Picture 1 SKYTRAXX Manual Version 1.3 ®...
  • Page 16 Picture 4 Pic 5: The pilot did it. FAI triangle with 168.5 points. Picture 5 Very large and clear presentation of 3 freely selectable fields. XXL Screen 3 custom fields SKYTRAXX Manual Version 1.3 ®...
  • Page 17 The own position is shown as a triangle symbol. The upper view shows the plan view of the airspaces in flight direction to the right. The middle buttons can be used to change the zoom factor. Airspaces 2 custom Fields SKYTRAXX Manual Version 1.3 ®...
  • Page 18: Pilot

    • Type FLARM only works for Paraglider and Hangglider • Broadcast Name If disabled, data gets anomymized • Online Tracking If disabled, base stations will not forward any data to the internet • Messages From Determine who`s messages are displayed SKYTRAXX Manual Version 1.3 ®...
  • Page 19: Olc Profile(E)

    Then all other data such as User and Password must be entered. These data must correspond to the credentials of the corresponding server. After entering "Test Login" can be selected to validate the login data. SKYTRAXX Manual Version 1.3 ®...
  • Page 20: Forwarding

    The forwarding of the NMEA data to a mobile phone can be set here. On the mobile phone, a hotspot must be opened. The SKYTRAXX then tries to connect to the phone. On the mobile phone can e.g. XCTrack be supplied with the vario data.
  • Page 21: Airspace

    If an airspace warning is displayed, the duration of the display can be set. If 0 seconds is set, the display remains until it is confirmed. As long as the airspace warning exists, the warning screen is placed in the existing flight screens. SKYTRAXX Manual Version 1.3 ®...
  • Page 22: Display Contrast

    First, it must be connected to an access point. A list of available access points is displayed. After selecting the desired access point, the password must still be entered. SKYTRAXX Manual Version 1.3 ®...
  • Page 23: Update Device Without Wifi

    Download the file "skytraxx.tar" from our website. Connect the SKYTRAXX to the PC with the USB cable. As soon as the SKYTRAXX drive appears on the PC, copy the file to the "update" folder. Eject the drive and restart the SKYTRAXX. The update will now be executed automatically.
  • Page 24: Statistic

    Dimensions: 16. Waterlanding In the event that you land with your SKYTRAXX in the water and this penetrates the device, the device should be dried with a hair dryer. Be sure to return the dried device to SKYTRAXX GmbH for verification. The warranty will be forfeited after improper use, e.g.
  • Page 25: Warranty

    This ensures proper disposal. You thereby fulfill the legal obligations and make your contribution to environmental protection! WEEE-Reg.-Nr. DE 97761594 The company SKYTRAXX GmbH is connected to the dual system. SKYTRAXX Manual Version 1.3 ®...
  • Page 26: Disclaimer

    The free and freely accessible data such as airspaces and starting places as well as elevation data were created with the greatest possible care. However, the company SKYTRAXX GmbH assumes no responsibility for the accuracy and timeliness of the provided free and freely accessible data.
