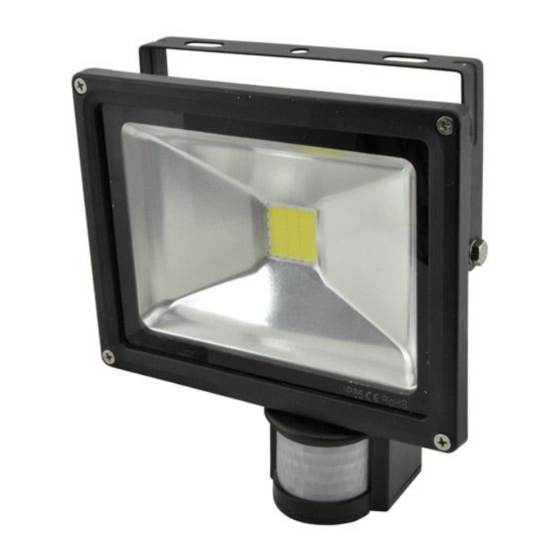

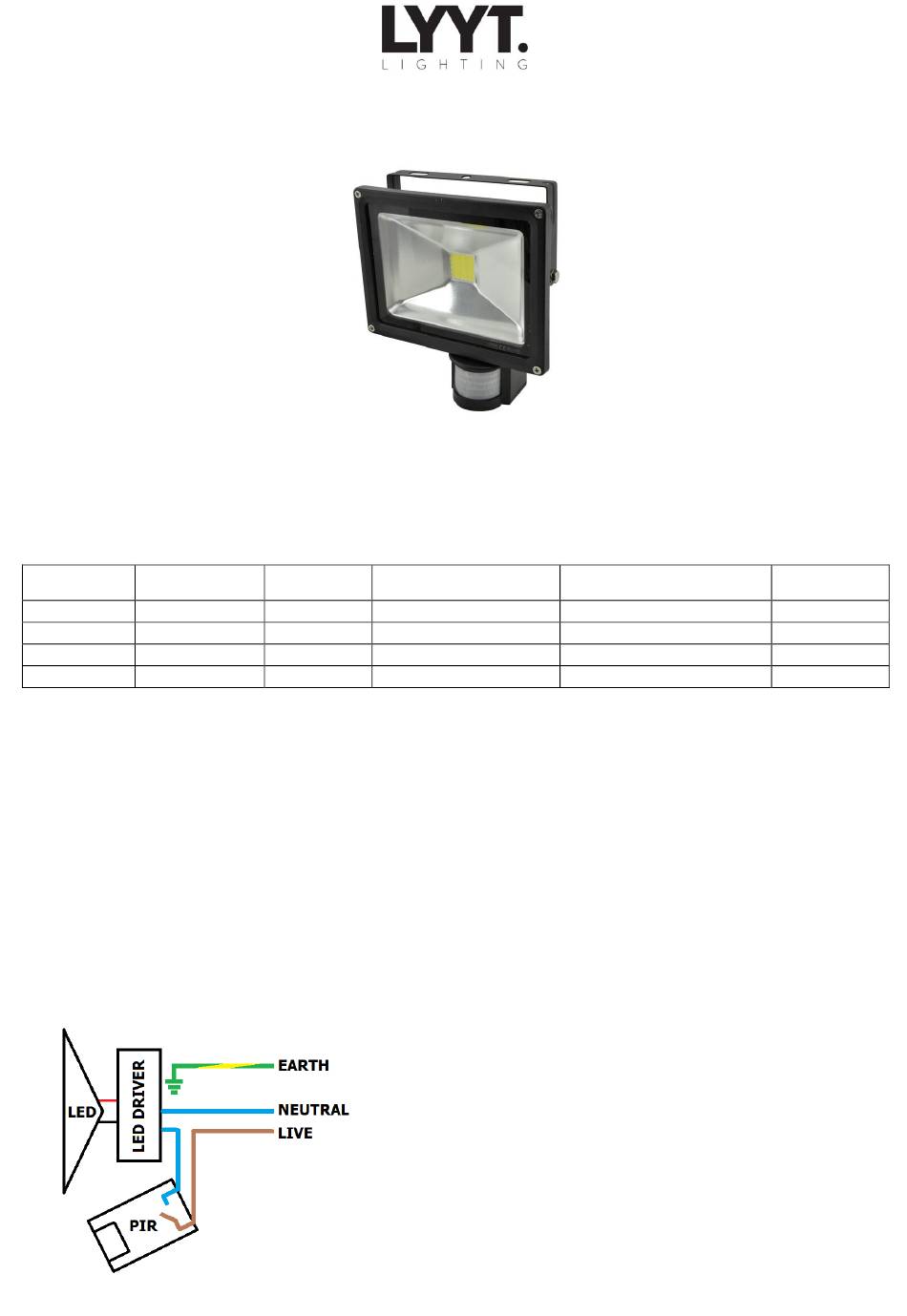

These PIR flood lights are designed for easy installation to provide illumination for safety and security in
outdoor areas. Please read and keep the following instructions to aid setting up and get the best results
from your purchase.
Versions
Ref
Model
GL469269
FLB10C
GL469271
FLB20C
GL469273
FLB30C
GL469275
FLB50C
Installation
LYYT flood lights with PIR can be attached to a wall or canopy using the integral bracket. The vertical
angle of the flood light may be tilted toward the area requiring illumination and then fixed by tightening
the hex screws at each side. The PIR section can be directed to the area required to detect movement
and fixed by tightening the single hand screw on the PIR pivot assembly.
Connection
The flood light is fitted with a mains lead and plug for easy connection.
For hard-wired connection, remove the plug and strip back the outer insulation to reveal 3 inner cores.
The colour coding follows EU mains wiring conventions as follows...
Brown = LIVE
PIR FLOOD LIGHT
Power
Total luminous flux
10W
800lm
20W
1600lm
30W
2400m
50W
4000lm
Blue = NEUTRAL
Connection to the PIR and LED driver are concealed within
the rear weatherproof housing.
Any internal connection and remote wiring should only be
carried out by a qualified electrical installer.
Note: THIS UNIT MUST BE EARTHED!
Dimensions
185 x 113 x 113mm
210 x 180 x 100mm
235 x 225 x 110mm
250 x 280 x 130mm
Green/Yellow = EARTH
Errors and omissions excepted.
Copyright© 2015. LYYT
Weight
0.74kg
1.16kg
1.75kg
2.52kg
LYYT.CO.UK
