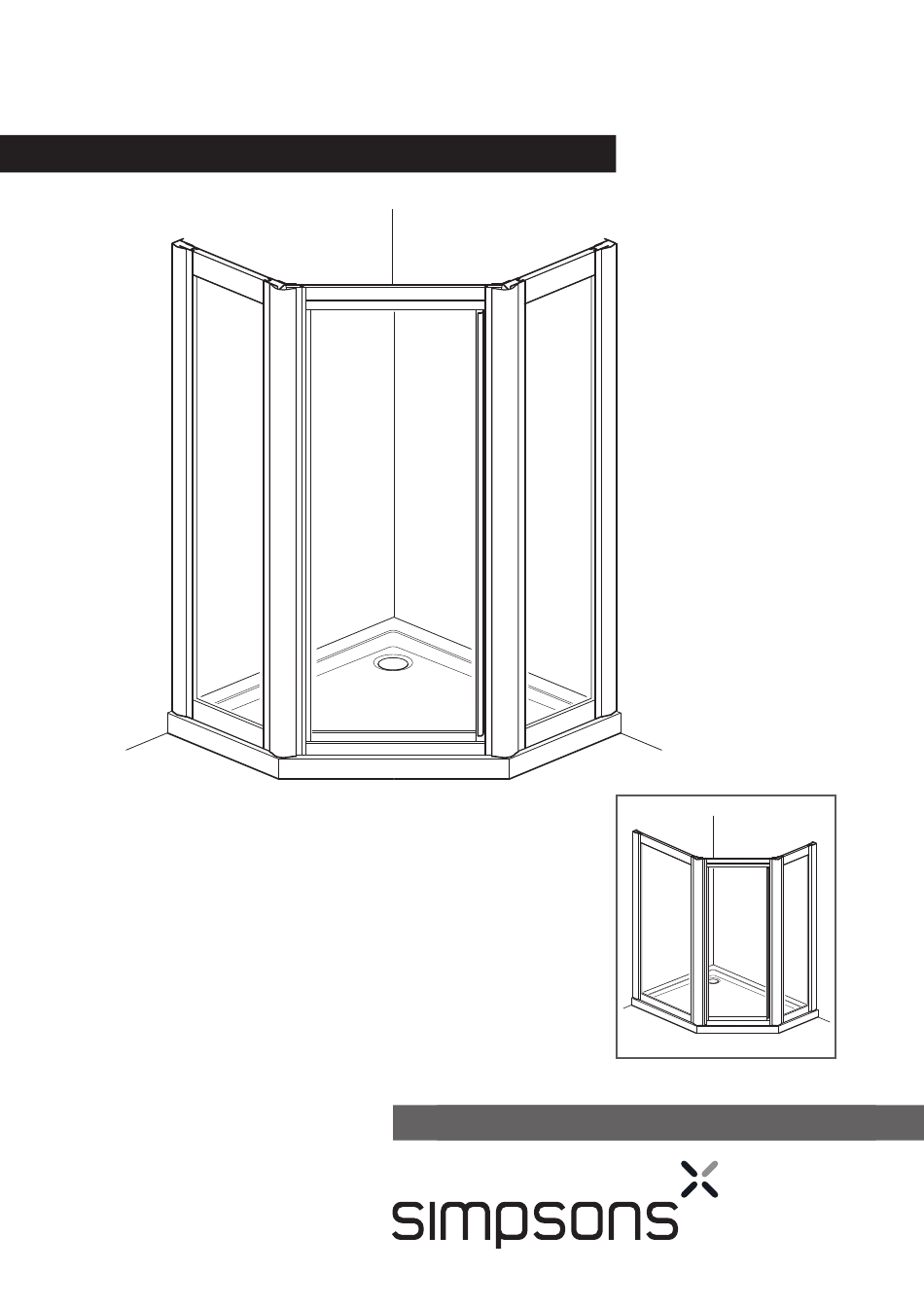

- Page 1 PIVOT DOOR PENTAGON & OFFSET PENTAGON SUPREME PIVOT DOOR OFFSET PENTAGON INSTALLATION INSTRUCTIONS...
-
Page 2: Care And Cleaning
Check the contents of the pack carefully before installation. MUST be level and fully sealed to the tiles before installation. If Simpsons will not be held responsible for any de-fit / re-fit costs you do not fit the enclosure onto a tiled surface, or seal the tiles where faulty product has been fitted. -
Page 3: Tools And Equipment Needed
CONTENTS PIVOT DOOR PENT PANELS OFFSET PENT PANELS Option Option Supreme Pivot Door shown Supplied in 2 boxes 10mm Screw x 6 10mm Screw x 6 10mm Screw x 6 38mm Screw x 8 Screw cover x 6 Screw cover x 6... - Page 4 PIVOT DOOR PENTAGON Step 1 Remove both wall channels from the door frame. Place each wall channel in position on the tray (10 - 15mm in from the outer edges of the tray), use a spirit level to ensure they are vertical and mark all 8 fixing holes onto the walls (holes inside).
- Page 5 Step 5 Once you have checked that the door opens and closes correctly Check again that the pent posts are vertical, and drill 6 more and the pent posts are vertical, fix the pent panels to the wall holes through each pent post into the door and pent panels (in the channels and pent posts and fix the door to the pent posts.
- Page 6 Note: If the anti splash strip catches on the door, simply trim to fit. Inside Inside Tray For any further information please contact Simpsons on: 01483 303711 Or visit our web-site at: www.simpsons-enclosures.co.uk The manufacturer reserves the right to make technical modifications without prior notice.
