Summary of Contents for Chargery Power CY-B8+

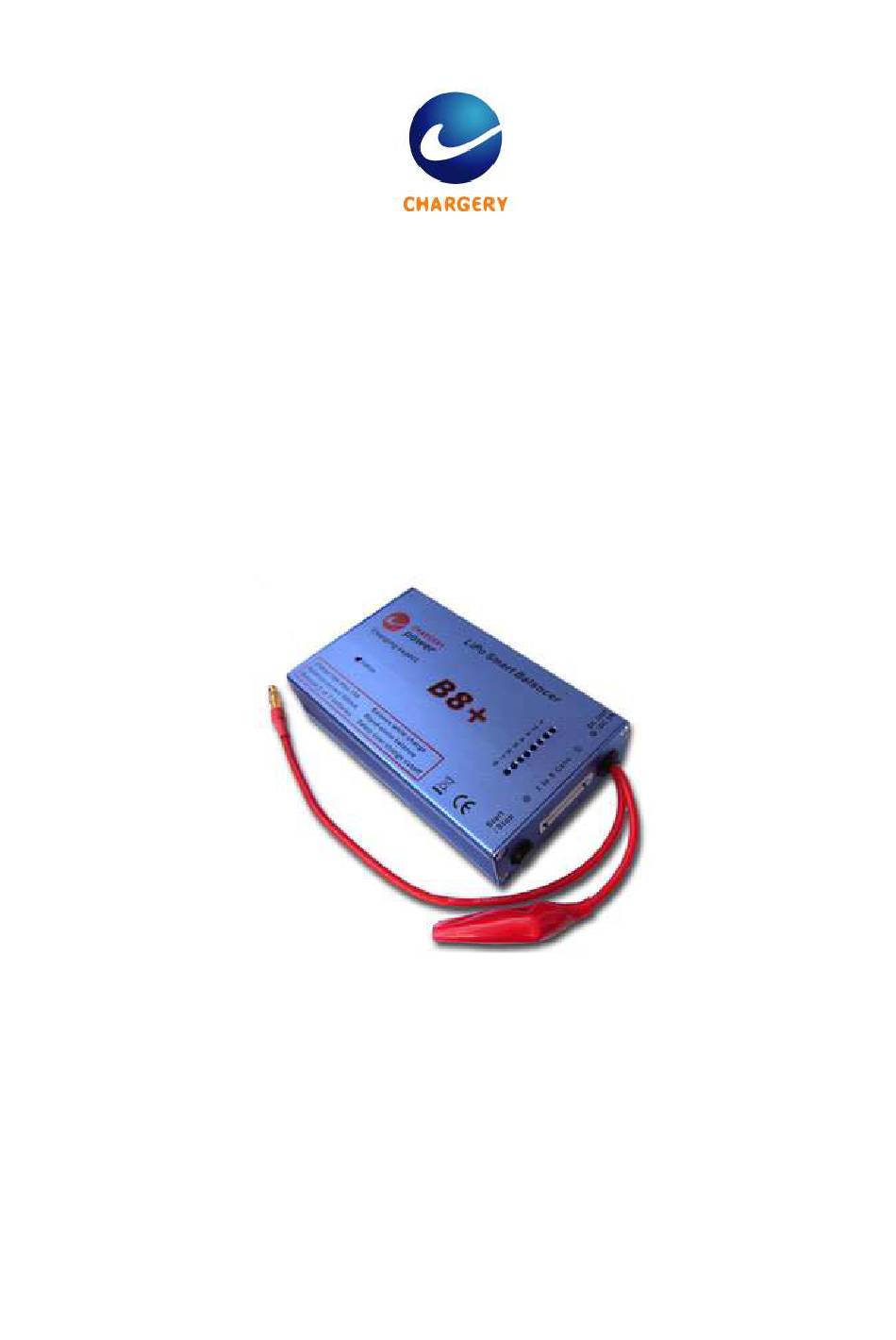

- Page 1 Operating Instructions Smart Balancer For 2 to 8 LiPo batteries Chargery Power Co., Ltd. Add: Room 20B, Haihui building, Nanhai Avenue, Nanshan, Shenzhen, China Zip code: 518054 Tel : +86 755 2643 6165 Fax: +86 755 2641 2865 Email: Jasonwang3a@163.com...
- Page 2 LiPo Smart Balancer CY-B8+. CY- B8+ is designed specially for 3 to 8 LiPo cells in series; it can detect and balance each cell in a pack while the battery pack is charged. It is important to read the instructions before using the balancer.
- Page 3 LiPo Smart Balancer CY-B8+. A: The voltage difference of the cells in series is under 0.020V: Blue status LED and red LED(s) is on for 1-2s, and then off. B: The voltage difference of the cells in series is 0.02 to 0.20V: Blue status LED is off, the red LED(s) flash (on for 5s and off for 3s).
- Page 4 LiPo Smart Balancer CY-B8+. of any cell voltage is more than 20mV. The warnings and actions are as below: Fully charged and balance finished alerts: all LED is OFF ------- keep the connection between CY-B6+ and battery pack The difference of any cell voltage is over 0.20V while charging: the buzzer will beep 3 times every 5s, blue status LED is off, and the red LED(s) flash ( “on”...
- Page 5 CY-B8+. Warranty and Service Chargery Power Co., Ltd. as manufacture of R/C model power warrants its CHARGERY charger and battery pack to be free of defects in material and workmanship. This warranty is effective for 18 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect the accessory will be replaced or repaired.
- Page 6 LiPo Smart Balancer CY-B8+. B8+ Connection Diagram Stand-Alone Mode (without input) 2cells JST XH 3cells JST XH ＋ 4cells － JST XH ＋ 5cells － JST XH ＋ 6cells － JST XH ＋ 7cells － JST XH ＋ 8cells － JST XH www.chargery.com page 6...
- Page 7 LiPo Smart Balancer CY-B8+. Connection Diagram Balance while Charge DC IN DC OUT C650 2cells DC IN DC OUT C650 3cells DC OUT DC IN C650 ＋ 4cells － DC IN DC OUT 5cells ＋ C650 － DC IN DC OUT 6cells ＋...
- Page 8 LiPo Smart Balancer CY-B8+. DC IN DC OUT 7cells C650 ＋ － DC IN DC OUT 8cells C650 ＋ － www.chargery.com page 8 total 8...
