Summary of Contents for HKBN SensePlus MX-AQ-01

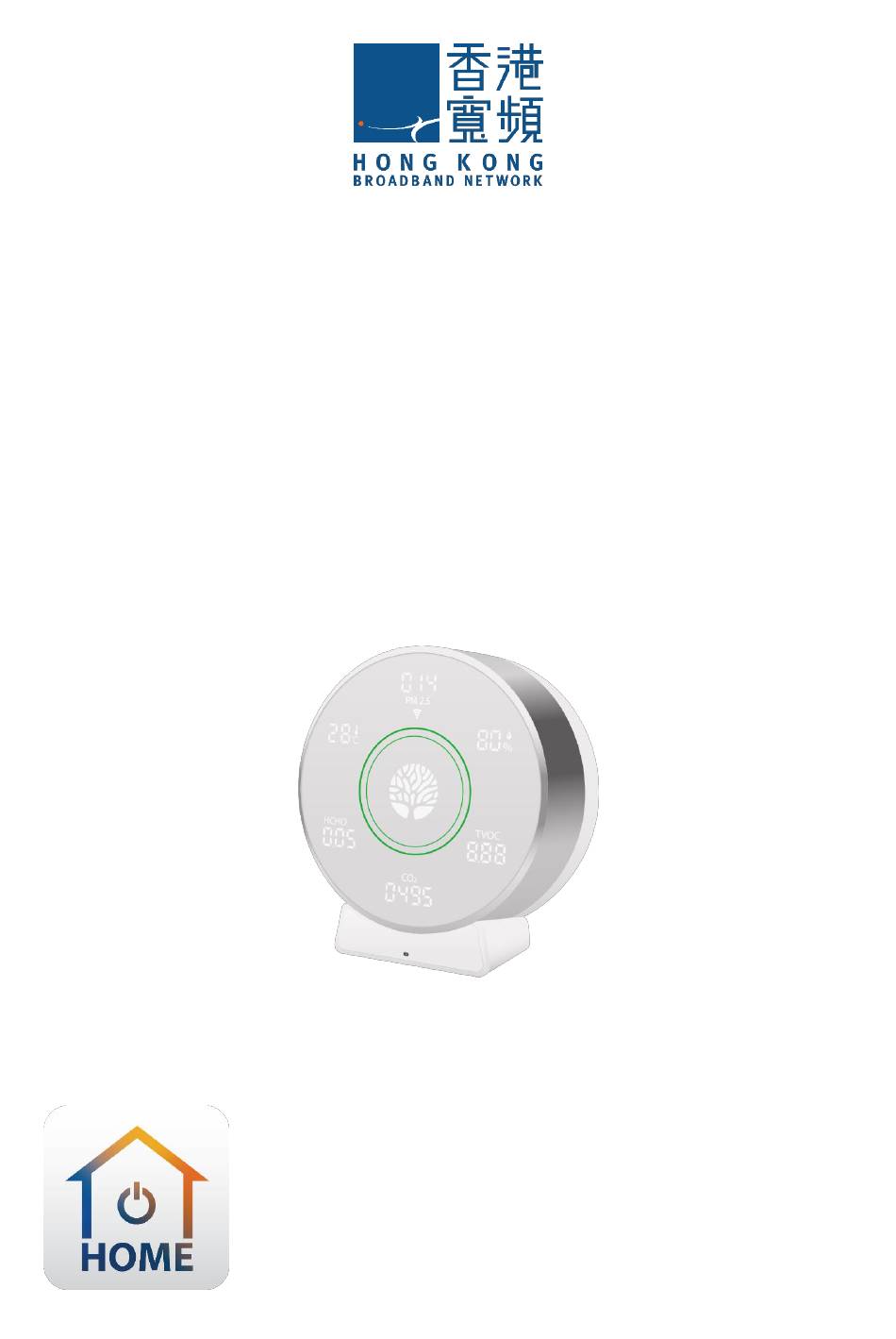

- Page 1 SensePlus Indoor Air Quality Monitor (Model：MX-AQ-01) HKBN Home User Guide v.20200930...
-
Page 2: Table Of Contents
Table of Contents Product Description ................... 3 Download HKBN Home App ................4 Add Device ......................5 Control Device Introduction of Control Panel ............. 9 Browsing index records ..............10 Automation (Smart Action) ................11 Device Information Setting Page Panel ................14 Check for Firmware Upgrade ............ -
Page 3: Product Description
Product Description Name SensePlus Indoor Air Quality Monitor Model : MX-AQ-01 Features: 1. Monitor indoor air quality, including PM2.5, TVOC, CO2, HCHO, humidity and temperature. 2. Collect data on air quality to trigger automated smart action... -
Page 4: Download Hkbn Home App
Download HKBN Home App Search and download “HKBN Home” APP in Apple App Store OR Google Play Store Scan the QR code below... -
Page 5: Add Device
Add Device You must first connect your phone to a 2.4GHz Wi-Fi network when adding device; Tap “Devices” on the bottom menu (image 1); Tap “Add Device” button OR “+” icon at top right corner if you already have paired device (image 2); (image 2) (image 1) - Page 6 Tap “SensePlus Indoor Air Quality Monitor” from left menu “Home Appliance” (image 3); Hold the Wi-Fi button until the Wi-Fi indicator blinks (image 5); (image 4) (image 3) (image 5)
- Page 7 Select Wi-Fi network and enter password*, and then tap “Next” (image Please wait a moment while your device is in pairing process. (image *Important tips: Wi-Fi requirement ⚫ Currently all smart devices are compatible to 2.4GHz network only. Please make sure that your device and mobile are connected with 2.4GHz but not 5GHz Wi-Fi network.
- Page 8 After device added successfully, you can change the device name and assign it to the located room. (You can also change the device name and room location later in device setting page and room management page.) And you can find the paired device in the “Device” page. Device Name Room...
-
Page 9: Control Device
Control Device • Introduction of Control Panel Device Information Statistical Detail Air Quality Level PM2.5 Air Quality: Bad HCHO TVOC Temperature Humidity Reference for the air quality standard and index range Air Quality Index Index Range Index Range Accuracy Colour Level Temp Fine Good... -
Page 10: Browsing Index Records
• Browsing index records You can tap “Statisitical detail” to check different indoor air quality index. (past one month records) Date... -
Page 11: Automation (Smart Action)
AUTOMATION can carry out device actions automatically by pre-conditions like environment factors or smart device status. You can handover this complex and important daily works to HKBN Home for a convenient and simple living. Automation included the setting of Temperature, Humidity, Weather and Schedule as condition to trigger different control in smart devices. - Page 12 4. Tap “Add Action” Select “SensePlus Indoor Air Set fan speed, then tap Quality Monitor”. “On”in power...
- Page 13 7. Select “All Day”to enable 24 8. Save to complete. In the hours or customize the page of automation, you can effective period. (If the time enable or disable is out of the effective period, automation the automation will not be triggered even if met the conditions...
-
Page 14: Device Information
Device Information • Setting Page Panel Device Name (tap to change) Device ID Wi-Fi Signal IP Address Mac Address Firmware Information Remove Device... -
Page 15: Check For Firmware Upgrade
• Check for Firmware Upgrade Tap “Check for Firmware Upgrade”, you can see current firmware version and available upgrade version if any. Tap “Upgrade” to start firmware upgrade... -
Page 16: Remove Device
• Remove Device 1. In device settings page, tap “Remove Device”. 2. Tap “OK” to confirm and remove device from your account. -
Page 17: Product Specifications
Product Specifications • Compliance with: CE • PM2.5: Range 0~999μg/m³, Accuracy 1μg/m³ • CO2: Range 350-5000PPM, Accuracy 1PPM • HCHO: Range 0~2.5mg/m³, Accuracy 0.01mg/m³ • TVOC: Range 0~9.99mg/m³, Accuracy 0.01mg/m³ • Humidity: Range 0~99%RH, Accuracy 1%RH • Temperature: Range: -9~50℃, Accuracy 1℃ •... -
Page 18: Product Maintenance And Warranty
Product Maintenance and Warranty For the enquiry of product maintenance and warranty, please contact the product distributor/ manufacturer below: Maxisense IoTech Limited • Service Center：Room 1010, Peninsula Tower, 538 Castle Peak Road, Cheung Sha Wan, Kowloon, Hong Kong • Tel.： (852) 3500 8222 •...
