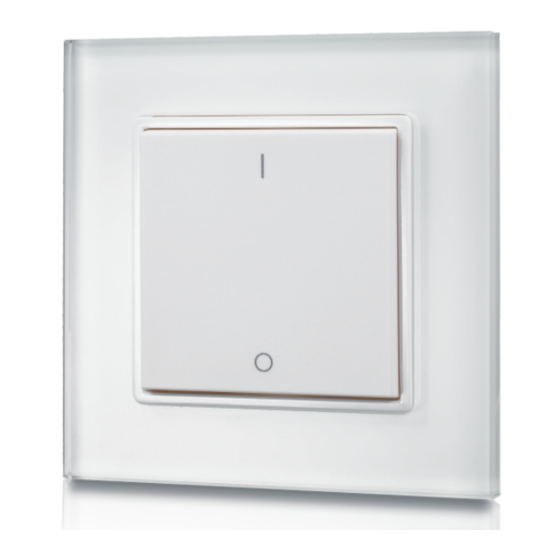

Single color Enocean RF dimmer user manual
Parameter
Remote
Operation Voltage
Part No.
SR-EN9001
No battery
Receiver
Iuput Voltage
Part No.
SR-EN9101
12-36VDC
SR-EN9101P3
12-36VDC
SR-EN9101P7
12-36VDC
Product Size
86.0
SR-EN9001
5
ISO9001：2008
Operation
Dimensions
Frequency
868.3MHz
86x86x13.8
Single Color
Current
Output
4x5A
Constant voltage
4x(60-180)W
4x350mA
Constant current
4x(4.2-12.6)W
4x700mA
Constant current
4x(8.4-25.2)W
Installation
Description of function
EnOcean enables the implementation of wireless remote controls without batteries. Power is provided
by a built-in electrodynamic power generator.
The switches are battery-less, thanks to engergy harvesting technology, and are maintenance-free, energy is
Remarks
generated by pressing the enocean button. Similarly a radio signal is sent when button is released, allowing for
dimmer and blinds control.
Key function:
* Choice of single or dual rocker
* self powered : batteryless and wireless
Remarks
* Enocean RF technology
* High tempered glass frame
*Transmission range 300m free field, typ. 30 m indoor
One EnOcean Switch control 1 zone
Control 1 zone
: Short press- on/off, hold finger
down- dimming up
: Short press- on/off, hold finger
down- dimming down.
EnOcean Switch
Advertisement
Table of Contents
Summary of Contents for topled Enocean RF

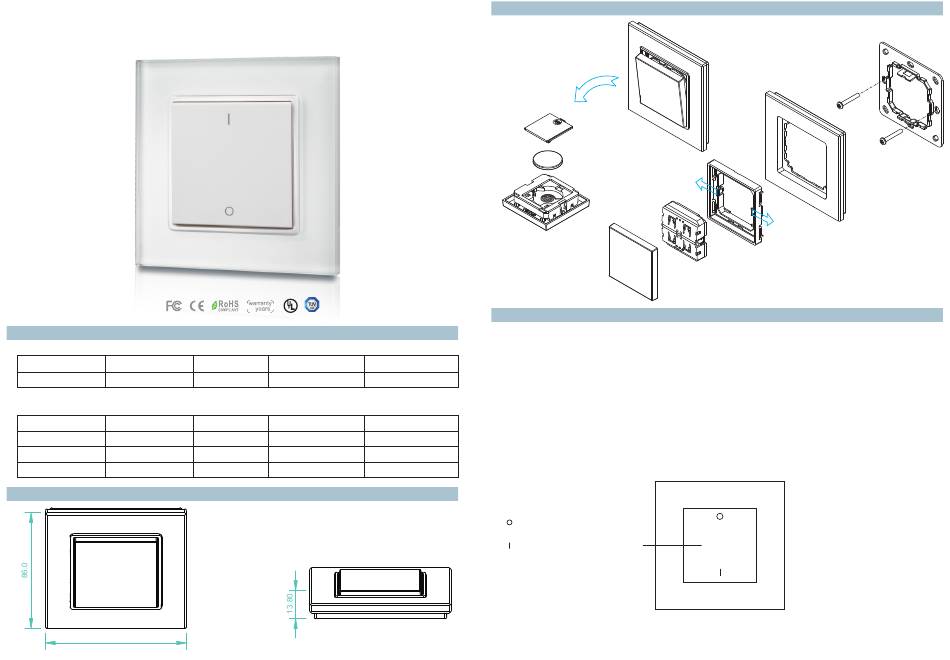

- Page 1 Single color Enocean RF dimmer user manual Installation SR-EN9001 Description of function ISO9001：2008 Parameter EnOcean enables the implementation of wireless remote controls without batteries. Power is provided by a built-in electrodynamic power generator. Remote The switches are battery-less, thanks to engergy harvesting technology, and are maintenance-free, energy is...
- Page 2 Wiring diagram Power Supply AC110-230V 12-24VDC Learning Key SR-EN9101 EnOcean LED Dimmer Single Color LED Strip Single Color LED Strip Single Color LED Strip Single Color LED Strip Learning operation of receiver (EnOcean Switch ID ) Short press on learning button of receiver , press any button of Enocean Switch, once receiver get the signal from Enocean switch, connected LED flashes for 1 time ( output of receiver), Then it learns successfully.
