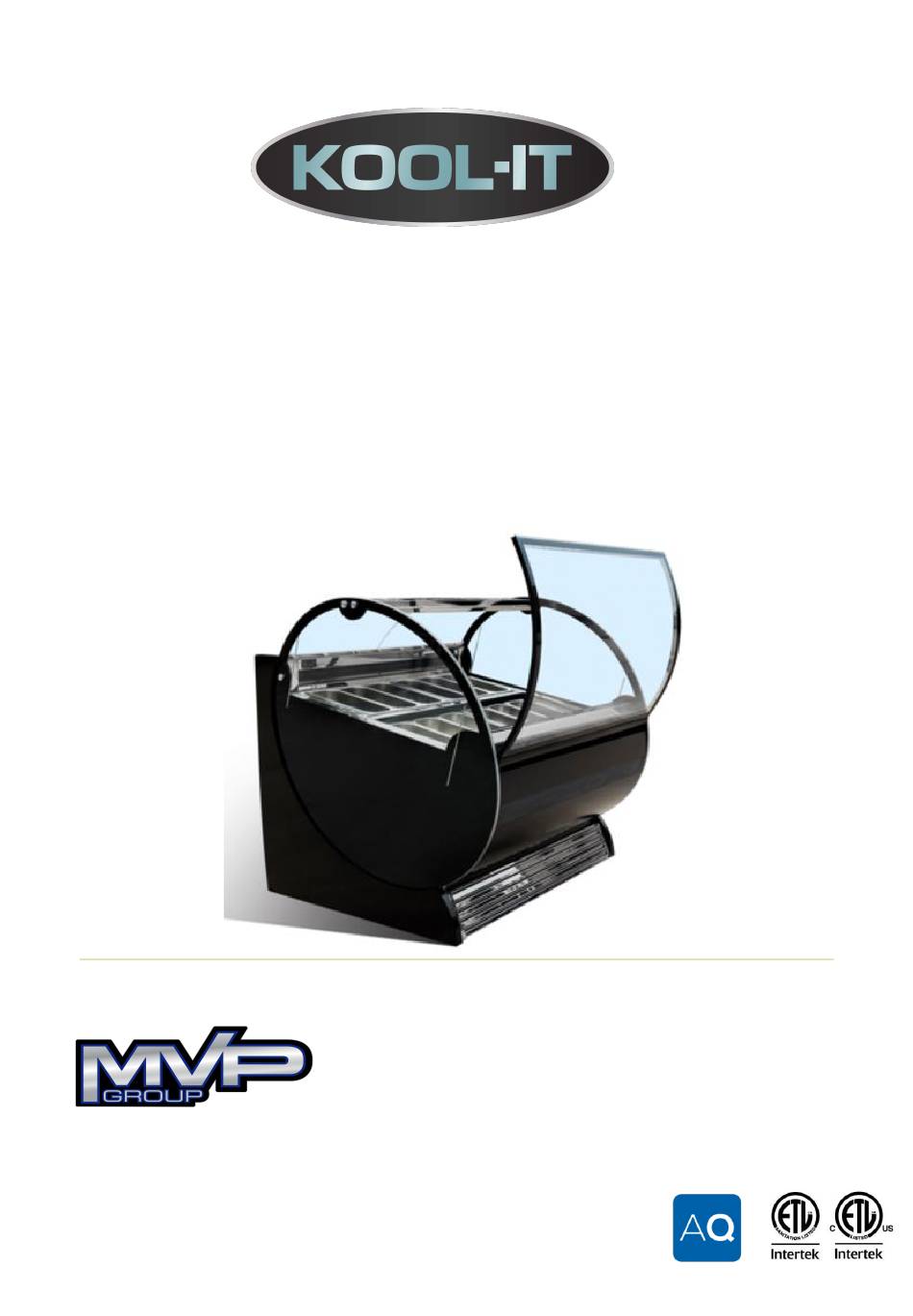

Gelato Display Freezer
5659 Royalmount Ave. Montreal, QC, Canada H4P 2P9
Telephone:514.737.9701/TollFree:888.275.4538
Fax: 514.342.3854 /Toll Free: 877.453.8832
sales@mvpgroupcorp.com / mvpgroupcorp.com
12000 Biscayne Blvd. Ste 108
Miami, FL 33181
Telelephone:786.600.4687/TollFree:844.218.8477
Fax:786.661,4100
KGC Series
User Manual
service@mvpgroupcorp.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MVP Kool-It KGC Series
Summary of Contents for MVP Kool-It KGC Series
- Page 1 Gelato Display Freezer KGC Series User Manual 5659 Royalmount Ave. Montreal, QC, Canada H4P 2P9 Telephone:514.737.9701/TollFree:888.275.4538 Fax: 514.342.3854 /Toll Free: 877.453.8832 sales@mvpgroupcorp.com / mvpgroupcorp.com 12000 Biscayne Blvd. Ste 108 Miami, FL 33181 Telelephone:786.600.4687/TollFree:844.218.8477 Fax:786.661,4100 service@mvpgroupcorp.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Page Technical Specifications Installation Operation Maintenance Parts Breakdown 8-12 Electrical Diagram... -
Page 3: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL KGC-50 KGC-62 KGC-74 Number of Pans (1/3 GN or Italy Pan) Numbers of rear sliding doors (Arclic) 1 1/4 1 1/2 Electrical 110V/60HZ/1P Amps 10.5 12.3 13.5 Temperature Range (℉) 0～-8 Refrigerant R404A/R448 Dimensions 49.2"*44.8"*48.3" 62.2"*44.8"*48.3" 75.2"*44.8"*48.3" Shipping Weight (lbs.) INSTALLATION TRANSPORTATION... -
Page 4: Operation
POSITION 1. Never clean the unit with pressurized water jets. 2. Place the unit on a flat and stable surface. 3. Install the unit in a location where it can be overseen by trained personnel. 4. For good ventilation, keep 20 cm (7 inches) between the unit and walls or other objects. Increase the distance if the objects surrounding are heating sources. - Page 5 CAUTION: You are suggested not to reset the temperature controller frequently. Temperature Controller Operation Front Panel Commands Main Functions 1. How to see the setpoint...
- Page 6 2. How to change the setpoint Table of Controller Parameters ALARM SIGNALS When an alarm is activated, the display shows the corresponding message that flashes alternating with the temperature. • If fitted and enabled, the buzzer and the alarm relay are also activated. All the alarms have automatic reset (that is, they stop when the causes are no longer present), except for alarm ‘CHt’...
-
Page 7: Maintenance
only go off when the causes of the alarm have been resolved. The alarm codes are shown in the table below: MAINTENANCE CLEANING For health standards and good quality of beverages or foods, clean interiors of the unit as often as possible. - Page 8 Render your old unit unusable: • Cut off and remove the main power plug from the unit, then discard separately. CAUTION: Substances and gases in the thermal insulation must be disposed of professionally. Ensure that refrigeration tubing is not damaged prior to disposal. Please discard the unit according to the regulations of local law.
-
Page 9: Parts Breakdown
Poor contact of the Repair or replace socket The fan of the The fan motor is Replace evaporator damaged does not work WARNING: If the machine has any problems or has been damaged, do not try to repair or replace it by yourself. - Page 10 PARTS LIST Part Description MFG Code Material Supporting structure for side glass THCD-2-100-003-19 1.5mm galvanized plate Left panel THCD-2-200-003-05 30mm high-density wood or metal Left food pan support THCD-2-100-002-24 1.0mm #304 mirror stainless steel Food pan support #3 THCD-2-100-002-26 1.0mm #304 mirror stainless steel Foamed panel #1 THCD-3-200-002-01 PVC panel...
- Page 11 assembly A.C Contactor CJX2-1201 110V 60Hz 16A A.C Contactor relay JZC4-22 110 Voltage transformer VTR-01 Gas-liquid separator KL206 Compressor TECUMSEH-12 Four-way reversing valve DHF-6 Pressure switch PC-439-377K290K One-way valve NRV12S DANFOSS Pipeline for compressor kit THCD-1-200-004-01 copper pipe Holder for Power distribution box THCD-2-100-004-09 0.6mm #304 mirror stainless steel Expansion valve...
- Page 12 Back board for inner cabinet THCD-3-100-001-08 0.6mm #304 mirror stainless steel Supporting metal bottom THCD-3-100-001-16 1.5mm galvanized plate board Metal cover for side supporting THCD-3-100-003-13 0.6mm #304 mirror stainless steel board Pressure regulating net #1 THCD-2-100-002-17 0.5mm #304 mirror stainless steel Evaporator fan holder THCD-2-100-002-21 1.0mm #304 mirror stainless steel...
- Page 13 Air outlet grille #1 THCD-3-100-002-01 1.0mm #304 mirror stainless steel Food pan supporting arm #4 THCD-2-100-002-27 1.0mm #304 mirror stainless steel left connection metal board for THCD-2-100-001-13 0.6mm #304 mirror stainless steel cabinet Right food pan supporting arm #2 THCD-2-100-002-25 1.0mm #304 mirror stainless steel Bolts for side panel THCD-2-200-003-03...
-
Page 14: Electrical Diagram
ELECTRICAL DIAGRAM...
