- Page 1 BOXER MOWER FA ● FA XL ● FAG USER MANUAL P. de Heus en Zonen Greup B.V. Stougjesdijk 153 3271 KB Mijnsheerenland The Netherlands Tel: +31 (0) 18 66 12 333 E-mail: info@boxeragri.nl...
- Page 2 ENG | ENGLISH TRANSLATION OF THE ORIGINAL MANUAL BOXER MOWER | User manual September 2019...
-
Page 3: Table Of Contents
Regular maintenance: every 50 hours of operation ................10 Regular maintenance: every 200 hours of operation or annually............10 DISPOSAL AND THE ENVIRONMENT ..................11 FIGURES ........................... 12 TECHNICAL FILE ........................13 CE DECLARATION OF CONFORMITY ..................14 BOXER MOWER | User manual September 2019... -
Page 4: Using The Mower (Fa1200, Fa1500, Fa1500Xl, Fa1800, Fa1800Xl Or Fa2100Xl)
• Only use and follow the manual of the BOXER mower. • Note the danger symbols and pictograms and the recommendations indicated by labels on the machine. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS The safety instructions below and the instructions given in the BOXER manual must be observed: • The capacity and the stability of the machine to which the mower is connected must be adjusted to the mower on the basis of 540 rpm (PTO). -
Page 6: Putting Into Operation / Operating Instructions
After the points above have been checked, the mower can be connected to the machine mechanically. When connecting mechanically, the machine must be maneuvered slowly to the attachment system. Use the manual for specific settings and consult it with regard to the working method and use. Page 6/14 BOXER MOWER | User manual September 2019... -
Page 7: Working Method And Use Of The Mower
After every working day, the mower must be cleaned carefully so that no grass and/or sand residue remains stuck anywhere on the system and hardens. Park the combination with the mower on flat surface. • Do not stand on the machine if the blades are still rotating!!! Page 7/14 BOXER MOWER | User manual September 2019... -
Page 8: Storage, Moving And Deployability
Do not stand on the machine when moving it. The power take-off must be fastened securely to the frame to prevent the possibility of a hand getting caught. Page 8/14 BOXER MOWER | User manual September 2019... -
Page 9: Maintenance And Repairs
Check the wear of the blades and, if required, grind them back into their original shape. Sharp edge Follow original 0,8 mm pattern Place orders by including the identifier and the quantity in accordance with the mower type. Page 9/14 BOXER MOWER | User manual September 2019... -
Page 10: Regular Maintenance: Every 50 Hours Of Operation
Move the gearbox so that the belts tighten or loosen. Pay attention to the position of the belts. The belt pushing-in is approximately 3/4” (± 20 mm). Regular maintenance: every 200 hours of operation or annually Replace the V-belts. Page 10/14 BOXER MOWER | User manual September 2019... -
Page 11: Disposal And The Environment
If the mower is no longer suitable for further use, the hydraulic hoses must be removed and the hydraulic oil must be drained. Each of the sorted materials must be offered separately to the relevant authorities/companies. Page 11/14 BOXER MOWER | User manual September 2019... -
Page 12: Figures

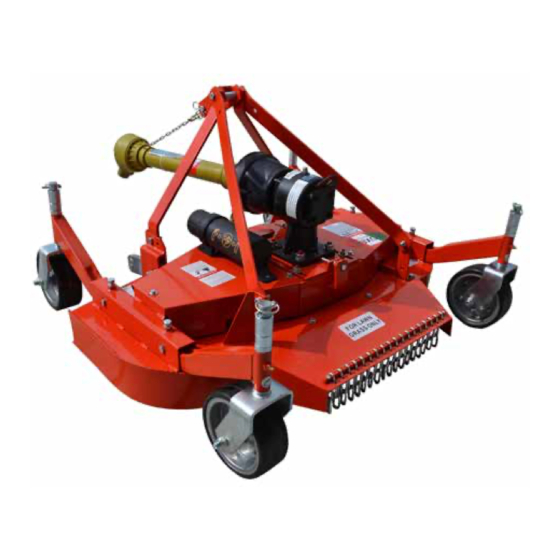

FIGURES FA model FA XL model FAG model Page 12/14 BOXER MOWER | User manual September 2019... -
Page 13: Technical File
TECHNICAL FILE The technical file, detailed drawings, structural calculations and original CE declaration of conformity are available for inspection at the office of the supplier/manufacturer. Page 13/14 BOXER MOWER | User manual September 2019... -
Page 14: 10. Ce Declaration Of Conformity
Machine : Circelmaaier / Kreiselmulcher/Rotary mower/ Tondeuse Type/model : FA / FA-XL / FAG Serienummer / Chassis number : Bouwjaar / Baujahr / Year / Année : De machine in de verklaring voldoet aan de fundamentele veiligheids- en gezondheidseisen die zijn vastgelegd in de richtlijn van 2006/42 / EG en ter verificatie zijn geraadpleegd UNI: EN 13524: 2004, EN 754.
