MANUAL Model No.: KIRPOLAPHOT001

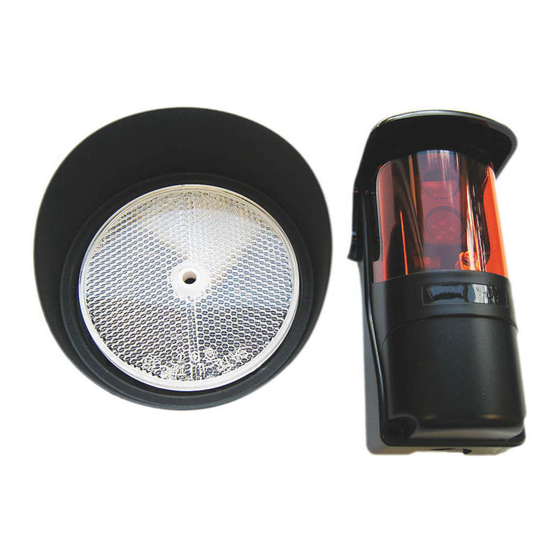

UL325-2016 MONITORED Photoelectric Beam Sensor
(Retro-Reflective & "POLARIZED" also Twin Finish Housing Type)
Features:
Polarized Sensor
"
Retro-reflective type
Red infrared led element
IP-55 water proof/cable gland
PC casing, anti fog/dew/rains
Round shape reflector-Dia.: 82.1mm
Input Volt.: 12-30V DC/AC 60 Hz
Twin colors led indicator for beam alignment
Tamper switches included
Specifications:
Input Volt.
Current consumption
Tx LED Element
Beam Spreading angle
Contact Capacity
Response Time
Delay Time of Relay
Sensing Range
LED Indicators
Additional Function
IP
Environment/Storage Temp.
Dimension
Cable wires
Approvals
Dimensions:
53
61
Application:
"- totally safety sensor
(Non Polarity)
12-30V DC/AC 60 Hz (Non Polarity)
100 mA
Infrared LED/Wave length 740 nm
1.5 (half angle)
30VDC/AC, 0.5A
10 msec
100 msec
10 meters
Red LED Off: Beam aligned / Red LED On: Beam broken
Red LED flash: Beam alignment signal weak (Re-align)
Green LED on: Beam aligned proper
Tamper switches
Terminal block / Cable gland (IP-55)
IP-55
-25
60
/ -35
122 (L) 61 (W) 62 (D) mm
2517 / 24AWG / 5~7 cores
UL325-2016 & CE
49
UNIT: mm
62
Gateopener
Overhead door
Swing gate
Sliding door
Window
Terrace
Warehouse
Parking lot
Automation control
80
Cable gland:
Nut
Cable Range
Thread
(mm)
M12x1.5
1
5002680
Note:
MONITOR functions of UL325
(01) End of Line Resistor (10K )
(02) N.C. contact (Optional)
Depending on the monitoring
system used by the gate motor, it
may be necessary to use either the
N.C. output or connect the included
10K
resistor to the N.O. or N.C.
output.
Please refer to the gate operator
manual or the gate operator
manufacturer for the preferred
monitoring method.
Body
Tight Ring
Knob
Thread O.D.
Thread Length
C1(mm)
C2(mm)
3-6.5
12
RoHS
Spanner Size
A&F(mm)
9
18/15
