PEM 975
Cardioid-Plane-Microphone
with non-rotational symmetrical directivity
Recording at a lectern or table - sitting or standing
User Manual

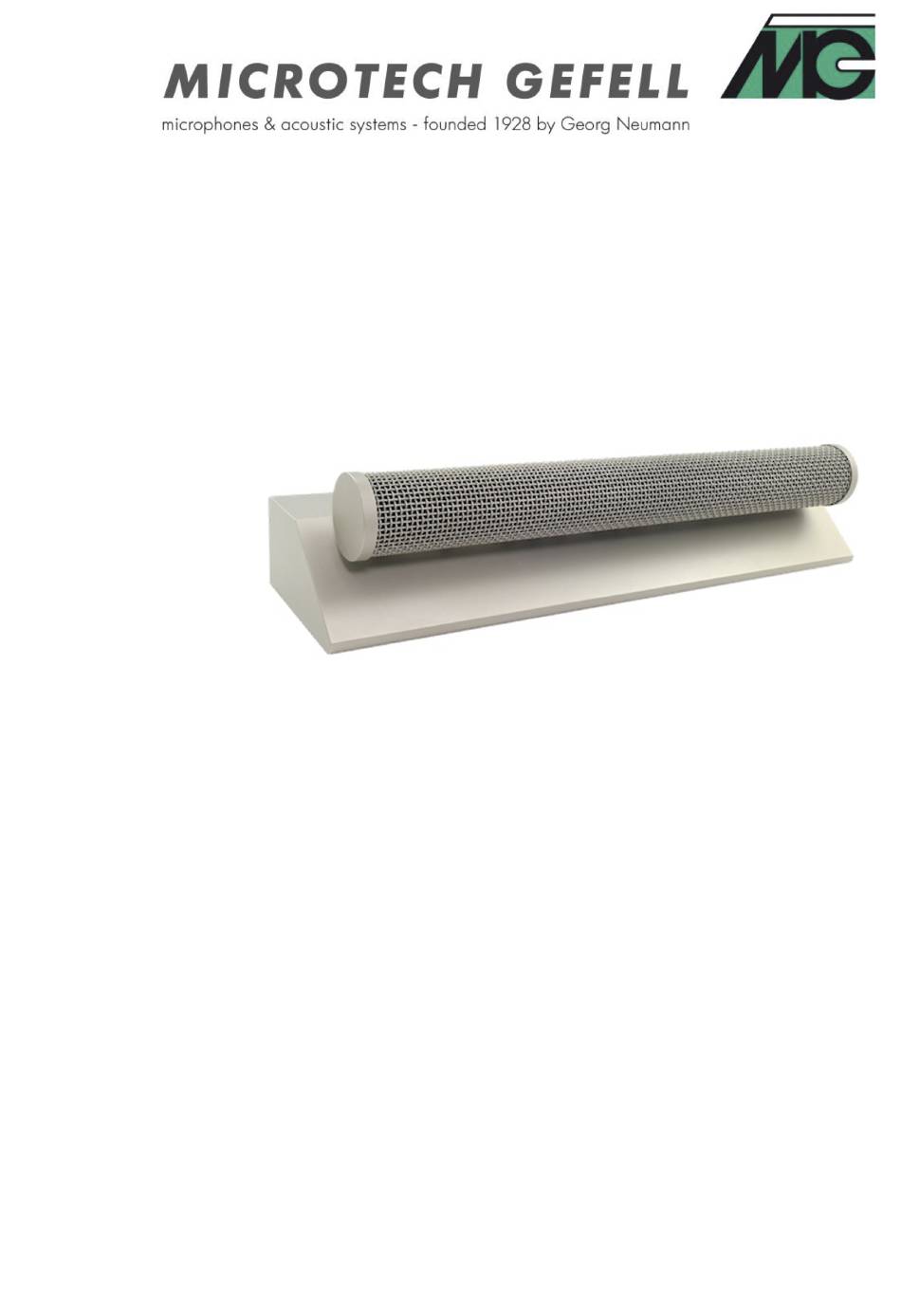

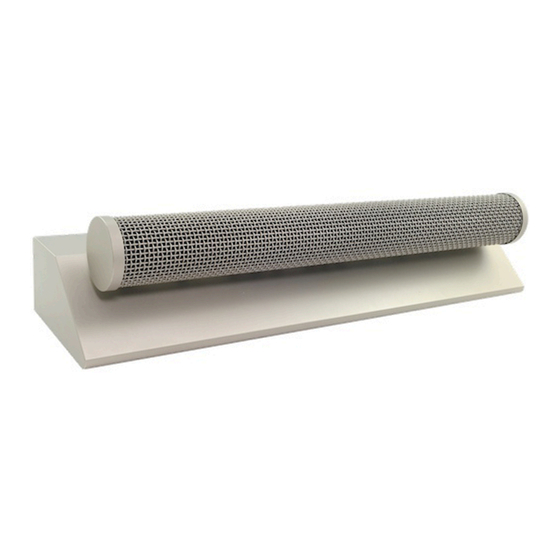

The PEM 975 is a special version of the KEM 975 - turned 90º to be used horizontally on a lectern or table.
This Data Sheet is the technical specifications of the PEM 975 - for more information please also see the
full Data Sheet on the KEM 975
