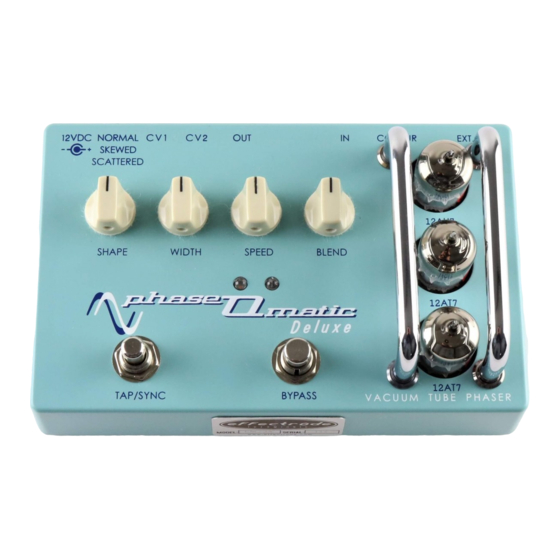

Effectrode phaseOmatic Deluxe PM-3A Owner's Manual

Vacuum tube phaser

Download this manual

S p e c i f i c a t i o n s

• Input impedance: greater than 1MΩ

• Output impedance: less than 1KΩ

• Controls: Shape, Width, Speed and Blend

• Features: Vacuum tube phase-shifter circuitry

• Expression pedal: Roland EV-5 or EV-7.

• Peach LEDs: pulsate with modulation

speed for visual song tempo matching.

• Continuously variable twin LFOs: Three banks

containing dozens of different waveforms.

• Power requirements: 12VDC @ 1Amp

• Dimensions: width 7.5" depth 4.8" height 1.3"

• Weight: 2lb ( on Earth); 0.3lb (Titan)

• Construction: solid die-cast aluminum box

• Finish: Pastel-blue powder coat

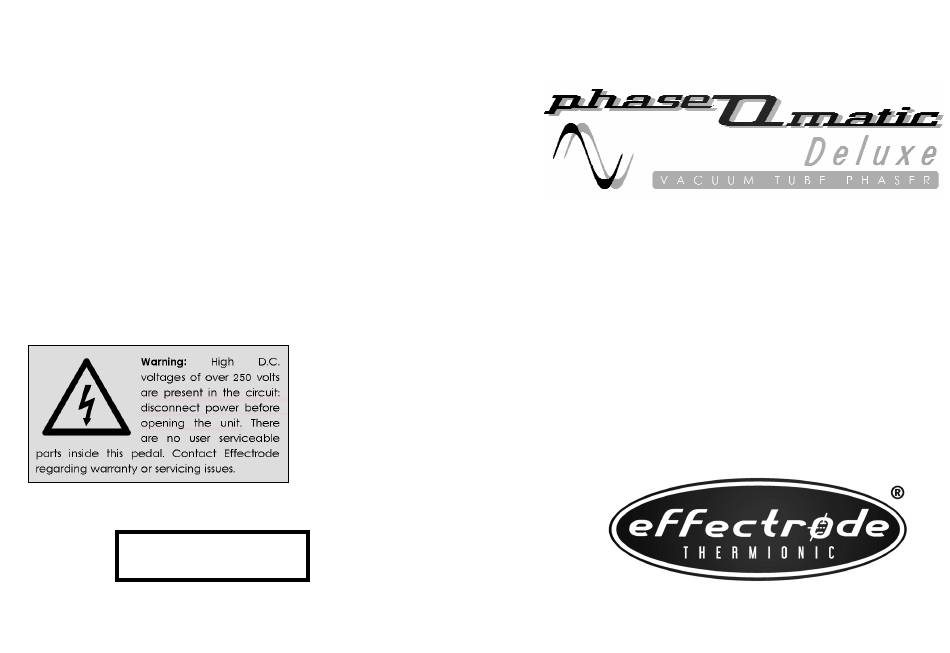

Serial #

PM-3A

Thermionic

Owner's Manual

12 Br o ugh t on C re sc ent , B arla s t on,

St af fs , En glan d. S T12 9DB

ww w. ef fe ct r od e. co m

Need help?

Do you have a question about the phaseOmatic Deluxe PM-3A and is the answer not in the manual?

Page 2 I n t r o d u c t i o n The 12AU7 tube in the Phaseomatic can be Back in the mid-1990s Effectrode began a focused swapped with other 9-pin double triode tubes such ten-year research & development project to perfect as the 12AX7, 12A Y7, etc.
Page 3 space pace With the internal jumper Link in place the twin LFOs C o n t r o l s are phase-locked, i.e. their ‘Shape’, ‘Width’ and Shape knob adjusts the profile of the phase sweep ‘Speed’ are the same, yielding maximum notch by altering the LFO wave shape.
Page 4 pace Normal/Skewed/Scattered toggle switch selects Blend knob adjusts the mix of 'dry' and phase- between three banks of different LFO waveforms. shifted signals–fully counter-clockwise is 100% 'dry' The ‘Normal’ bank contains symmetrical linear signal and fully clockwise is 100% phase-shifted sweep waveforms;...
