Summary of Contents for Essentials C700VC18

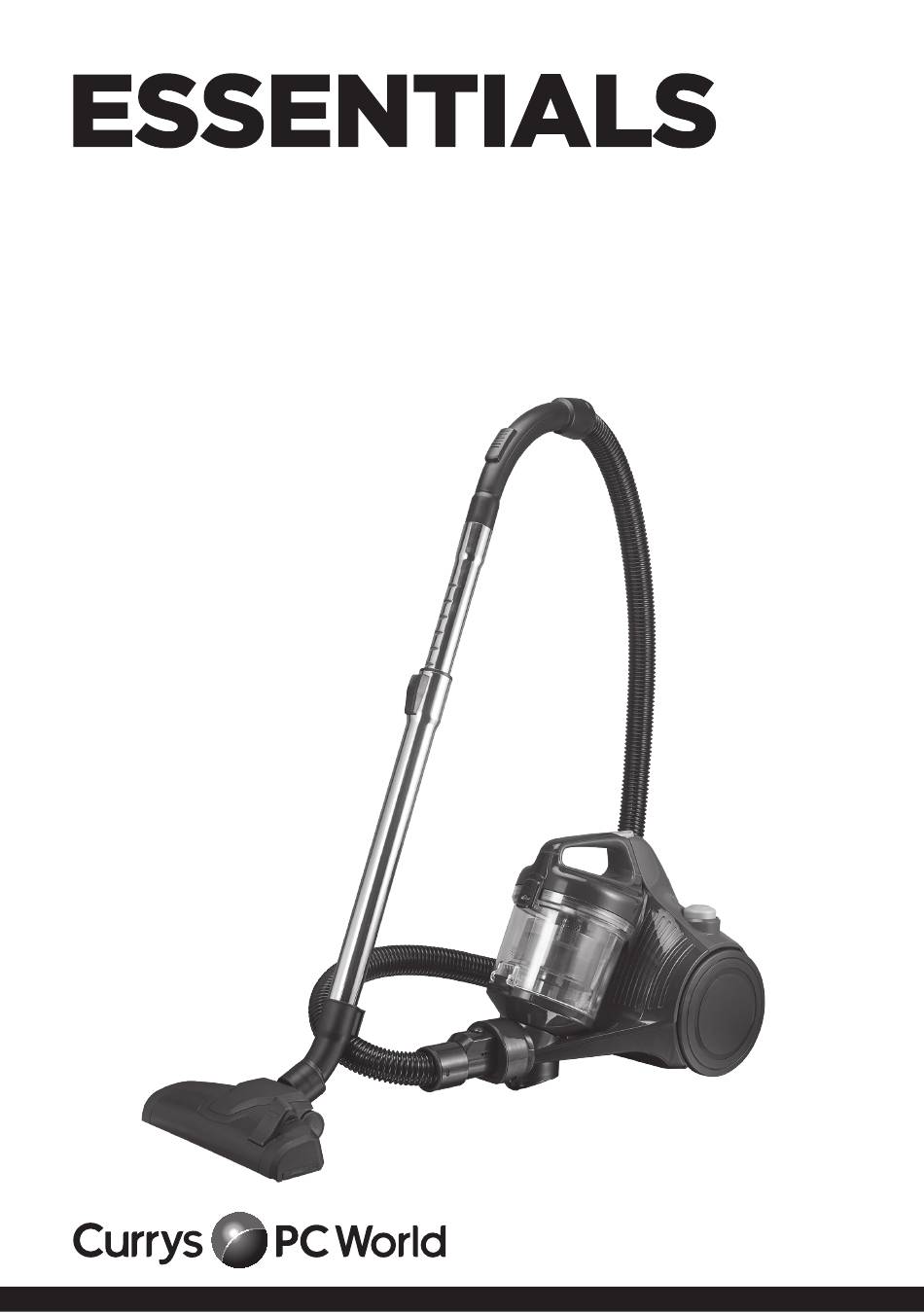

- Page 1 Bagless Cylinder Vacuum Cleaner Instruction Manual C700VC18...
-
Page 3: Table Of Contents
Contents Safety Warnings ............................. 4 Unpacking .............................. 6 Product Overview ..........................7 Preparation Before Use ......................... 8 Operation ............................... 9 Powering Off and Storage ........................10 Emptying the Dust Bin ........................11 Cleaning the Filters in the Dust Container ..................12 Cleaning the Exhaust Filter .........................12 Specifications ............................13... -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all the instructions carefully before using the appliance and keep them for future reference. •... - Page 5 • Do not use the appliance for other uses than its intended use. • The use of accessories not recommended by the appliance manufacturer may cause injury. • Do not use the appliance outdoors. • Do not operate an appliance with a damaged mains cable or mains plug, or in an abnormal state.
-
Page 6: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 7: Product Overview
Product Overview 1. Hose Suction Control 9. Dust Container 2. Extension Tube Switch 10. Dust Filter 3. Floor Brush Pedal 11. ON/OFF Button 4. Combination Nozzle 12. Cord Rewind Button 5. Hose Connector 13. Brush Clip 6. Dust Container Clasp 14. -
Page 8: Preparation Before Use
Preparation Before Use 1. To connect the hose, insert the hose connector into the hose connection opening until you hear a “click” sound. 2. Connect the telescopic tube to the handgrip of the hose. 3. Extend the telescopic tube to a length you find most comfortable by pushing the button forward. -
Page 9: Operation
Operation 1. Hold the mains plug and pull the retractable mains cable out of the vacuum cleaner. Connect it to the mains socket. The YELLOW mark indicates the ideal length to extend the cable. Do not extend the mains cable beyond the RED mark which indicates the maximum length. 2. -
Page 10: Powering Off And Storage
Powering Off and Storage 1. Press the ON/OFF button on the top of the vacuum cleaner to turn it off. 2. Unplug the mains cable from the mains socket. 3. Press the cord rewind button to rewind the retractable mains cable. 4. -
Page 11: Emptying The Dust Bin
Emptying the Dust Bin Ensure the vacuum cleaner is fully unplugged from the mains socket. 1. Press the release button at the top of the lid handle. 2. Lift the container up and remove it from the unit base. 3. Press the release button at the back of the container to open the base cover. -
Page 12: Cleaning The Filters In The Dust Container
Cleaning the Filters in the Dust Container Ensure the vacuum cleaner is fully unplugged from the mains socket. 1. After lifting up the container lid, remove the cyclonic filter (a) and the dust filter (b) from the dust container. 2. Clean the filters, and then dry them thoroughly before replacing back into the dust container. -
Page 13: Specifications
Specifications Model C700VC18 Rating 220-240 V~, 50 Hz, 700 W, Class II Dust bin capacity 1.2L Features and specifications are subject to change without prior notice. - Page 16 DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK EU Representative DSG Retail Ireland Ltd (259460) 3rd Floor Office Suite, Omni Park SC, Santry, Dublin 9, Republic of Ireland IB-C700VC18-190826V2...
