TEXTILE CLEANING SPRAY GUNS

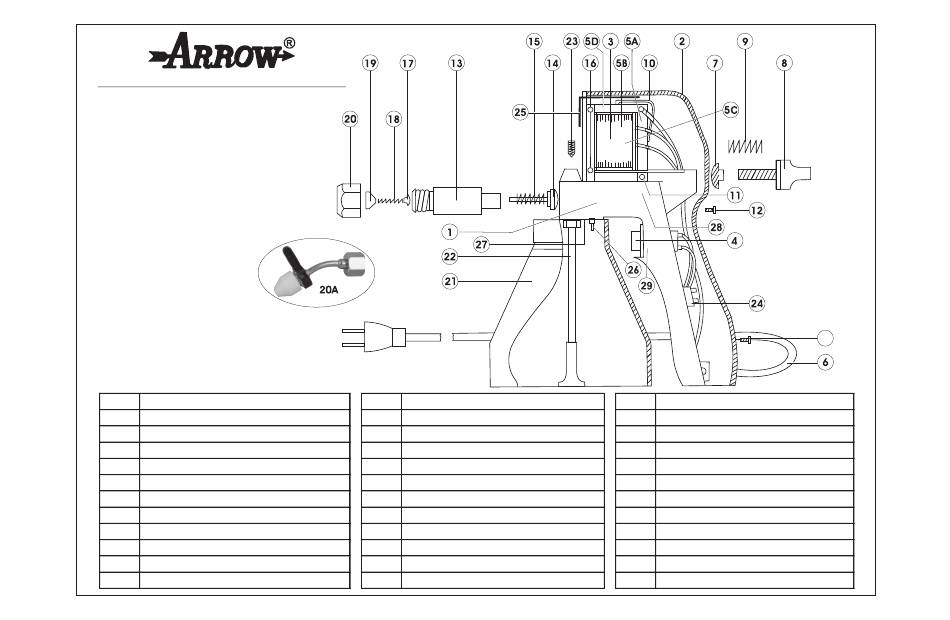

PARTS LIST FOR YH-120
Part #
Item
1
Gun Housing
2
Gun Housing Cap
3
Inductor Coil (220V/50Hz, Coil Only)
4
Trigger Switch Assembly
5A
I Core
5B
E Core with Coil
5C
Coil Full Set (E Core + Coil + I Core)
5D
E Core Only
6
Electric Wire
7
Buffer Nut
8
Pressure Control Knob
Part #
Item
9
Pressure Control Knob Spring
10
Coil Spring
11
Coil Pin
12
Gun Housing Screws (2 pcs)
13
Pump Cylinder
14
Piston
15
Piston Spring
16
Coil Locking Pin
17
Delivery Valve Cone
18
Delivery Valve Spring
19
Swirl Head (17, 18, 19 Form a Set)
Part #
Item
20
Nozzle - Straight
20A Nozzle - Adjustable
21
Solvent Jar
22
Suction Pipe With Filter
23
Conical Screw
24
Connector Block
25
Hook
26
Overflow Insert
27
Jar Washer
28
Coil Bush
29
Switch Locking Ring
12

Advertisement

loading
Need help?

Need help?

Do you have a question about the YH-120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Arrow YH-120

  • Page 1 TEXTILE CLEANING SPRAY GUNS PARTS LIST FOR YH-120 Part # Item Part # Item Part # Item Gun Housing Pressure Control Knob Spring Nozzle - Straight Gun Housing Cap Coil Spring 20A Nozzle - Adjustable Inductor Coil (220V/50Hz, Coil Only)
  • Page 2 TEKSTİL LEKE TEMİZLEME TABANCALARI YH-120 İÇİN PARÇA LİSTESİ Parça # Ürün Parça # Ürün Parça # Ürün Ba s ınç Kontrol Düğmes i Ya yı Düz Uç Tabanca Gövdesi Bobi n Ya yı Aya rl ı Uç Tabanca Gövdesi Kapağı...
  • Page 3 SERIAL NO. STICKER : DEALER DETAILS : Refer Page No. 10 for List of FREE SPARES...
  • Page 4 TEXTILE CLEANING SPRAY GUNS Product Introduction Our Textile Cleaning Spray Guns are hand held equipment capable of spraying cleaning solvents at high pressure through specially designed nozzles. These assemblies run on electricity and consume very low wattage. The solvent is sprayed by pressure developed by vacuum and eliminates the requirement of a separate air compressor attachment.
  • Page 5 Product Models Our Textile Cleaning Spray Guns are available in four models as detailed below: 1. CM 11 – This Spray Gun is designed in highly buffed aluminium alloy housing for rugged usage. This comes with a straight spray nozzle, which delivers a straight-line spray, which makes it more ideal for thick and medium woven fabrics where the spray velocity required is on the higher side.
  • Page 6: Product Specification

    Usage of Solvents Our Textile Cleaning Spray Guns are meant to be used with any PRODUCT SPECIFICATION solvent suitable to the application, and also, the solvent being permitted to be used by the law governing the country. Model: CM 11 CM 11A CM 16 CM 16A...
  • Page 7 TEXTILE CLEANING SPRAY GUNS OWNER’S USAGE MANUAL Arrow Spray Guns have been designed using the best of materials to give the user a long trouble free and safe usage. Please read the following instructions fully and carefully before use. Please keep this manual close to the unit in case of requirement of specific information relating to use or safety.
  • Page 8 Usage Directions: Plug in the unit into a suitable power socket. The unit is usually supplied with a electric wire (Part no.6) of around 3 meters length giving the user enough maneuverability. Unscrew the solvent jar (part no.21) from the unit and fill it with the required solvent.
  • Page 9 Keeping the unit upright, point the nozzle towards the fabric/item to be cleaned and switch on the gun by pressing the trigger switch(part no.4). The trigger switch is of the press to on/release to off type. The unit can be switched off by removing the finger from the switch.
  • Page 10 Product Troubleshooting Usage Precautions Use the unit in a well ventilated area free from open flames/sparks. Remove the plug from the socket before carrying out any High pressure is developed in the unit. Point the unit away from the adjustment, servicing or maintenance on the unit. user or any other person/animal.
  • Page 11 Product Maintenance Remove the plug from the socket before carrying out any adjustment, servicing or maintenance on the unit. Keep the electric wire properly secured to avoid damage due to abrasion. Transportation and Storage After usage of the unit for the day, open the solvent jar Each unit is packed in an individual carton box and held tight in and empty the solvent.
  • Page 12 User Safety Instructions Remove the Pump cylinder (Part No.13) at regular Use the unit in well ventilated area. The solvents used intervals for cleaning. Lightly oil the piston (part no. 14) could cause breathing hazards and irritation to the eyes in the event of improper ventilation.
