DESCRIPTION
The Model ASG is a handheld, battery- or plug-in power
supply powered, pocket-size analog signal generator. It
generates a 0-10 VDC signal in increments of 1V or a 0-
20 mA signal in increments of 2 mA. The LED bar graph
visually indicates analog signal level. The Model ASG can
also continuously ramp to user-defined minimum or maxi-
mum values with user- defined ramp-time settings.
FEATURES
• Powered by 9V battery or plug-in power supply
• Pocket size
• Bar graph LED for signal display
• 0-20 mA (2 mA increments)
• 0-10 VDC (1 VDC increments)
• Ramp function to minimum and maximum values
• Variable ramp function timing
• Low battery indication
• User-defined auto shutoff times for battery
conservation
• Separate milliamp and voltage output jacks
• 6' (1.83m) leads with alligator clips
• Up to 30 hours continuous use on a single battery
• Perfect for loop-powered circuits and externally
powered circuits
SPECIFICATIONS
Power
9V battery or 120 VAC plug-in
power supply
Impedance
Voltage
1000Ω min
Current
300Ω max
Resolution
Current
2 mA
Voltage
1 VDC
Accuracy (72°F)
Current
±0.5% FS or ±0.1 mA
Voltage
±0.5% FS or ±0.05 VDC
Operating temp
32° to 122°F (0° to 50°C)
Weight
14 oz (0.4 kg) with accessories
Dimensions
4.7"H x 2.40"W x 0.85"D
(11.9 x 6.1 x 2.2 cm)
Output
0-20 mA (2 mA increments)
0-10 VDC (1 VDC increments)
Ramping time intervals 2-20 sec (2-sec increments)
Auto shutoff times
2-20 min. (2-min. increments)
Accessories included 9V battery, 120 VAC plug-in
power supply, 6' (1.83m) wire
leads, carrying case
KELE • www.kele.com • FAX 800-284-5353

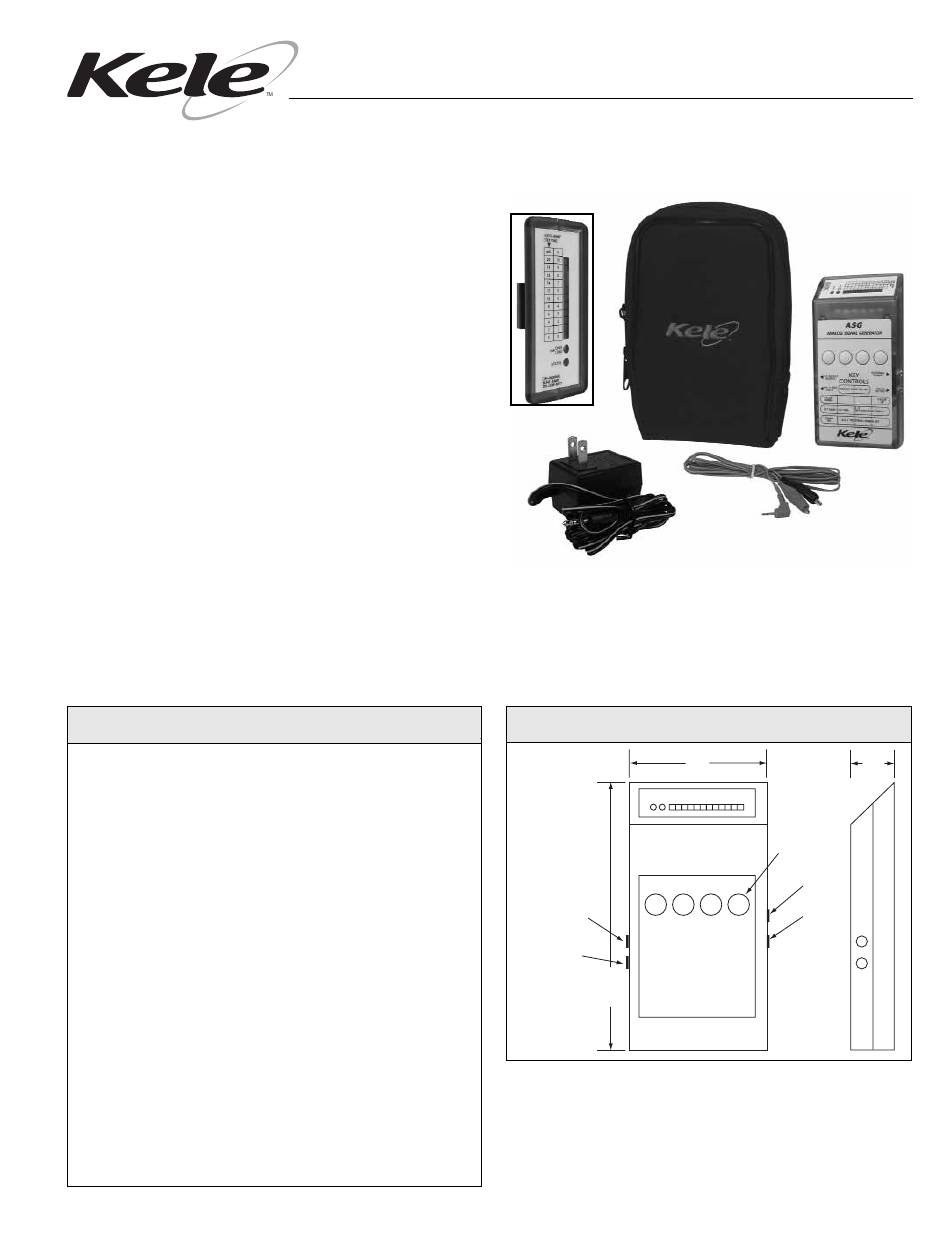

HANDHELD-PORTABLE ANALOG
SIGNAL GENERATOR
Top view
APPLICATIONS
•
Troubleshooting transmitters, transducers, and
actuators
•
Calibrating transducers, LPIs, and other analog
signal devices
DIMENSIONS / WIRING
in
(cm)
mA Source
Output
mA Two-Wire
Transmitter
Output
4.7
(11.9)
1
USA 888-397-5353 • International 901-382-6084
MODEL ASG
ASG with Carrying Case
2.4
(6.1)
Programming
Buttons
External
Power
Voltage
Output
November 2004
0.85
(2.2)
Advertisement
Table of Contents
Summary of Contents for Kele ASG
- Page 1 SIGNAL GENERATOR MODEL ASG DESCRIPTION The Model ASG is a handheld, battery- or plug-in power supply powered, pocket-size analog signal generator. It generates a 0-10 VDC signal in increments of 1V or a 0- 20 mA signal in increments of 2 mA. The LED bar graph visually indicates analog signal level.
- Page 2 Display The LEDs on the top of the ASG verify the progress of all adjustments and indicate status of various functions of the ASG. The "Status LED" indicates normal operation, low battery, and ramp mode. When this LED is in the off state, it indi- cates that the ASG is working normally.
- Page 3 The ASG will continuously ramp between two user-defined endpoints for a user-specified interval time between each incremental step. The ASG is preprogrammed to ramp between 4 mA (2 VDC) and 20 mA (10 VDC) in 10- second increments; however, custom incremental times and end points can be temporarily programmed into the ASG.
- Page 4 * Auto Off times are based on the mA scale. Each position is interpreted in minutes. For example, 10 mA represents 10 minutes. ORDERING INFORMATION MODEL DESCRIPTION MODEL ASG mA/VDC Pocket-Size Signal Generator with Accessories KELE • www.kele.com • FAX 901-372-2531 USA 901-937-4900 • International 901-382-6084...
