ViaSat VS1300 Assembly

75 cm odu
Hide thumbs Also See for VS1300:
Table of Contents

Advertisement

Quick Links

Download this manual
Summary
This Job Aid covers:

Verify AZ/EL Assembly Alignment


This Job Aid supports all Technician audiences. This job aid covers the VS1200 ODU antennas.
See 75cm ODU (VS1100) and (VS1200) Assembly Job Aid for assembly instructions for the VS1100 and
VS1200 ODUs. These documents is available in the eGuide.

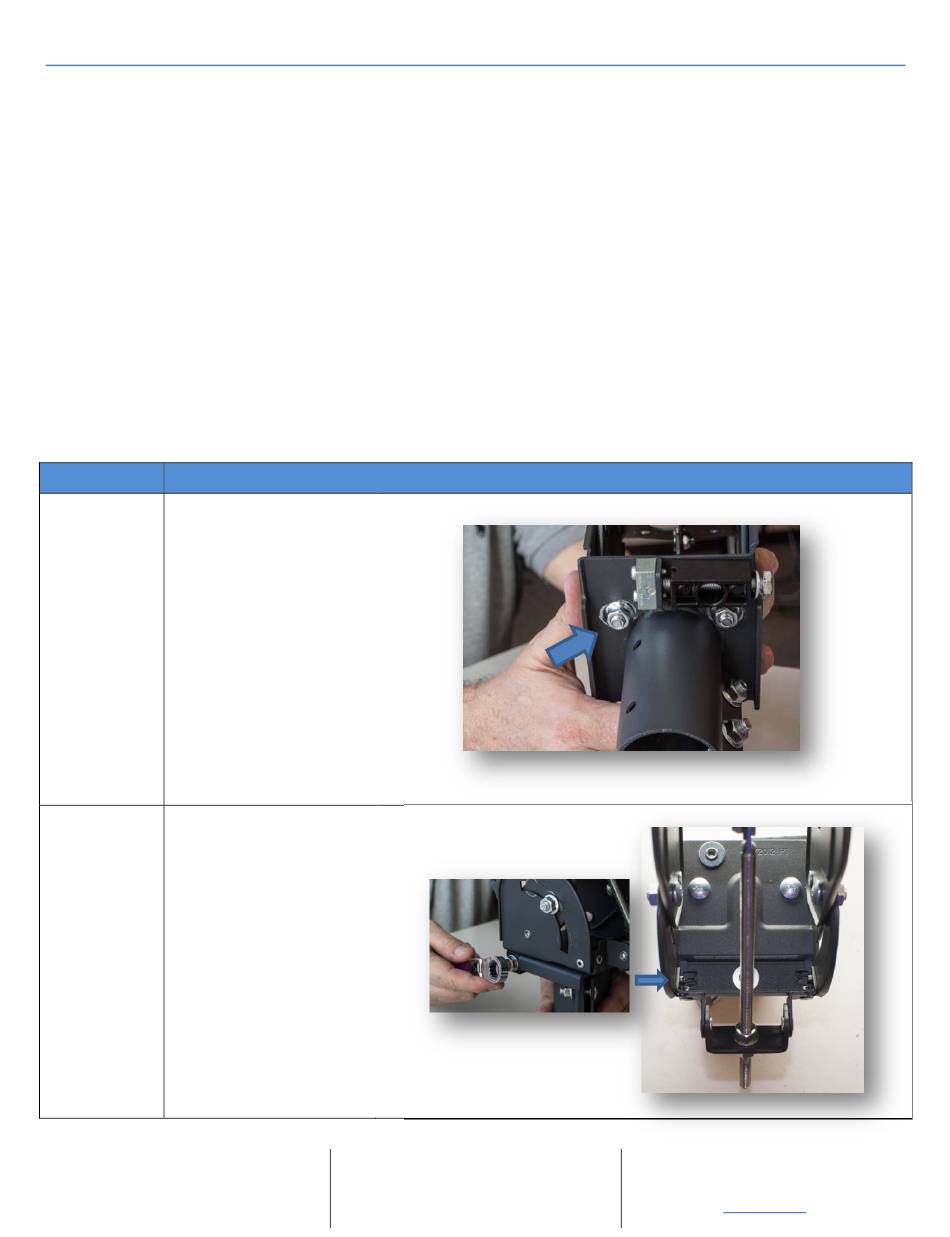

Verify AZ/EL Assembly Alignment

Aligning the Azimuth

The AZ/EL assembly consists of the Tube Canister, Azimuth Plate, Azimuth Base, and Elevation Bracket.
Step
1.
Loosen the bolts on the
bottom of the AZ/EL
assembly.
2.
Turn the Fine Azimuth
adjustment nut until the
indicators on the base of
the AZ/EL are at Zero
(0).
© 2006 - 2014 ViaSat, Inc.
75 cm ODU (VS1300) Assembly Job Aid
Release Date: October 2013



Action
Page
1
of
7
Proprietary – For use only pursuant to
company approval and instructions
Terms of
use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViaSat VS1300

Summary of Contents for ViaSat VS1300

  • Page 1 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 Summary This Job Aid covers:   Verify AZ/EL Assembly Alignment   Antenna Back Bracket Assembly   Transport   On Site Assembly This Job Aid supports all Technician audiences. This job aid covers the VS1200 ODU antennas.
  • Page 2 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 Step Action (continued) Once the azimuth is centered, retighten the bolts on the bottom of the AZ/EL assembly to secure the setting while the antenna is being built. IMPORTANT: The alignment of the Fine Azimuth Adjustment assembly is critical.
  • Page 3 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 Step Action (continued) When the coarse elevation adjustment is complete, wind the top nut down the elevation rod until it bottoms out on the cast pivot bracket. Tighten the elevation lock down bolts on the AZ/EL assembly.
  • Page 4 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 Step Action (continued) At assembly set the skew to 90 degrees. The skew will be changed during pointing and peaking of the antenna. Secure the Skew Plate using a flanged nut on each Carriage Bolt.
  • Page 5 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 On Site Assembly Step Action Attach the Boom Arm Assembly: Slide the Boom Arm into the slots on the Back Bracket. Secure the Boom Arms to the back bracket with four hex head bolts.
  • Page 6 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 Step Action (continued) Attach the Reflector: First, pass a carriage bolt through the top position on the reflector and attach a flange nut. Do not tighten the nut all the way. Slide...
  • Page 7 75 cm ODU (VS1300) Assembly Job Aid Release Date: October 2013 Step Action (continued) Attach the eTRIA: The COAX cable run must be completed before attaching the eTRIA to the Boom Arm. Feed the cable through the Boom Arm and secure the cable to the eTRIA.
