Matco Tools Straight Line RL301 Manual

Operating Instructions •

S P E C I F I C A T I O N S

Rec. Air Pressure . . . . . . . . .90 PSI

Air Consumption . . . . . . . . 4 CFM

RPM . . . . . . . . . . . . . . . . 25,000

Air Inlet Thread . . . . . . 1/4" NPTF

Rec. Hose ID . . . . . . . . . . . .3/8"

RL301

RL301_Manual.indd 1

Warning Information • Parts Breakdown

Sound Power Level . . . . . 87.1Dba

Sound Pressure Level . . . . 74.1Dba

Overall Length . . . . . . . . . 6-1/2"

Weight . . . . . . . . . . . . . . . . 1 Lb.

RL301

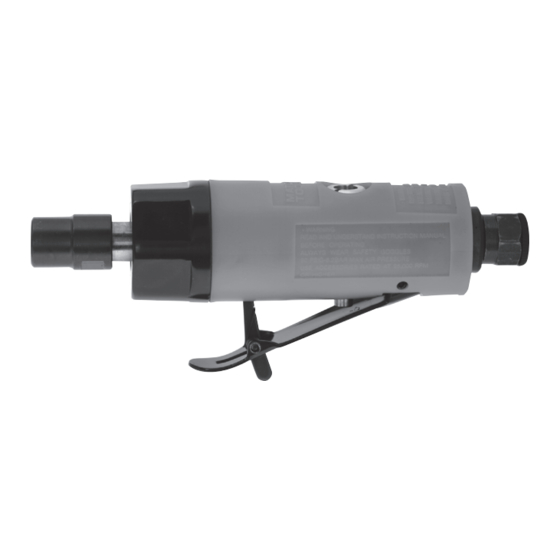

Straight Line

Die Grinder

rev. 05/13/04

™

5/14/04 3:09:56 PM

Table of Contents

Need help?

Do you have a question about the Straight Line RL301 and is the answer not in the manual?

Page 1 Operating Instructions • Warning Information • Parts Breakdown ™ S P E C I F I C A T I O N S RL301 Rec. Air Pressure ..90 PSI Sound Power Level ..87.1Dba Air Consumption .
Page 2 FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY. THIS INSTRUCTION MANUAL CONTAINS • Place the tool on the work before IMPORTANT SAFETY INFORMATION. starting the tool. READ THIS INSTRUCTION MANUAL • Slipping, tripping and/or falling while CAREFULLY AND UNDERSTAND ALL operating air tools can be a major cause of INFORMATION BEFORE OPERATING...
Page 3 RL301 Straight Line Die Grinder Index # Part # Description Qty. Index # Part # Description Qty. RS96101-RL301 Motor Housing RS96120 O-Ring RS96102 Silencer RS96121 Valve Screw RS96103 Washer RS96122 Ball Bearing RS96104 O-Ring RS96123 Rear End Plate RS96105 Deflector RS96124 Cylinder Pin RS96106...
Page 4 Operating Instructions • Warning Information • Parts Breakdown Nipple Air Supply... MATCO TOOLS™ 1 YEAR LIMITED WARRANTY FOR AIR TOOLS Tools of this class operate on a wide range of air pressures. It is recommended that air pressure of Matco warrants its air tools for a period of 1 year to these tools measures 90 PSI at the tool while running the consumer.
