Summary of Contents for Sola HD STV100K Series
- Page 1 Surge Protective Devices STV100K Series Instruction Manual...
-
Page 3: Table Of Contents
Contents 1.0 Installation ....................4 1.1 Environment ......................4 1.2 Mounting ........................ 4 1.3 Proper Connection of SPDs ................... 4 1.4 Mechanical Dimensions ..................5 1.5 Voltage Protection Ratings (VPRs) ................ 5 1.6 Circuit Ampacity Limitations ................... 5 1.7 Wire Sizing/Routing ....................5 1.8 Wiring Connections .................... -
Page 4: Installation

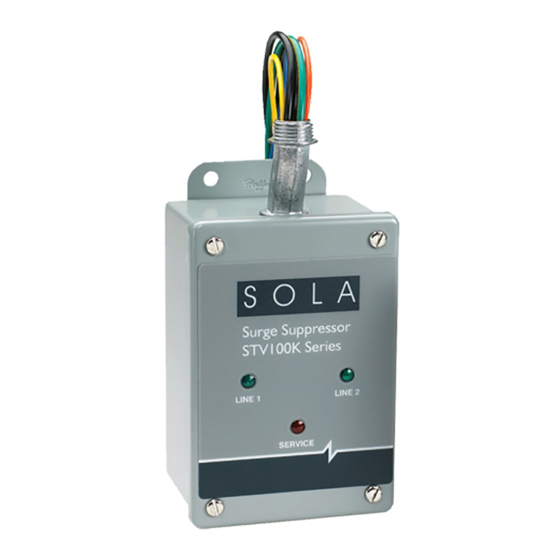

1.0 Installation The SolaHD STV100K Series Surge Protective Device is a high-quality, high- energy surge current diversion system designed to protect sensitive equipment from damaging transient voltage surges resulting from load switching, lightning strikes, and other sources. The installer should perform the following steps to ensure a quality installation. -
Page 5: Mechanical Dimensions
Standard for Safety, Surge Protective Devices (SPDs), #12 AWG wire must be utilized to connect the STV100K Series to your facility’s power grid. Connec- tions made with conductors other that #12 AWG may result in different VPRs. 1.6 Circuit Ampacity Limitations This device has been investigated by Underwriters Laboratories, Inc. -
Page 6: Wiring Connections
Apply power to the SPD and ensure status indications are normal. Under normal conditions, the green LEDs are illuminated and the red “Service” LED is extin- guished. If normal status indication does not exist, see “2.0 Troubleshooting”. STV100K Series Instruction Manual • 6... - Page 7 Nominal Voltage: 120/208 V Model: STV100K-23Y Nominal Voltage: 230/400 V Model: STV100K-27Y Nominal Voltage: 277/480 V Model: STV100K-10X* Three-phase wye, 3W + G Nominal Voltage: 120/208 V Model: STV100K-23X* Nominal Voltage: 230/400 V Model: STV100K-27X* Nominal Voltage: 277/480 V *Not UL Listed. Contact SolaHD Technical Support for details. STV100K Series Instruction Manual • 7...
-
Page 8: Troubleshooting
3.0 Registration & Warranty 3.1 Product Registration To register your product for updates and information on service and support, visit our Web site at: http://www.solahd.com/support/registration.htm. 3.2 Warranty Information Please see the “Terms & Conditions of Sale”. STV100K Series Instruction Manual • 8... -
Page 9: Specifications
50 kA 50 kA 50 kA Line to Line 50 kA 50 kA 50 kA 50 kA Line to Ground 50 kA 50 kA 50 kA 50 kA 50 kA Neutral to Ground 50 kA 50 kA 50 kA 50 kA STV100K Series Instruction Manual • 9... - Page 10 50 kA 50 kA 50 kA Line to Line 50 kA 50 kA 50 kA 50 kA 50 kA Line to Ground 50 kA 50 kA 50 kA 50 kA 50 kA Neutral to Ground 50 kA 50 kA 50 kA STV100K Series Instruction Manual • 10...
