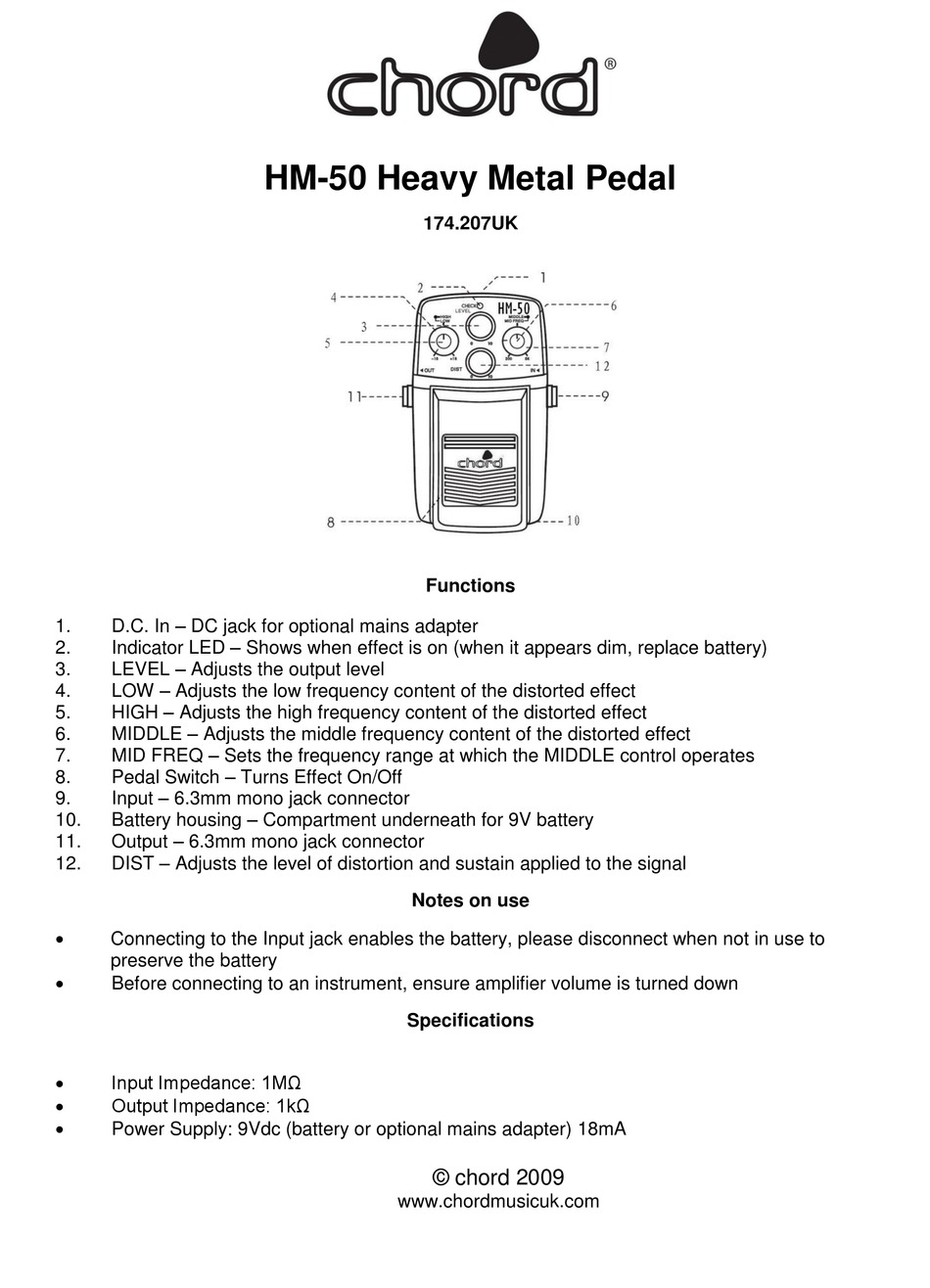

Chord HM-50 Quick Start Manual

D.C. In – DC jack for optional mains adapter
1.
Indicator LED – Shows when effect is on (when it appears dim, replace battery)
2.
LEVEL – Adjusts the output level
3.
LOW – Adjusts the low frequency content of the distorted effect
4.
HIGH – Adjusts the high frequency content of the distorted effect
5.
MIDDLE – Adjusts the middle frequency content of the distorted effect
6.
MID FREQ – Sets the frequency range at which the MIDDLE control operates
7.
Pedal Switch – Turns Effect On/Off
8.
Input – 6.3mm mono jack connector
9.
Battery housing – Compartment underneath for 9V battery
10.
Output – 6.3mm mono jack connector
11.
DIST – Adjusts the level of distortion and sustain applied to the signal
12.

Connecting to the Input jack enables the battery, please disconnect when not in use to
preserve the battery

Before connecting to an instrument, ensure amplifier volume is turned down

Input Impedance: 1MΩ

Output Impedance: 1kΩ

Power Supply: 9Vdc (battery or optional mains adapter) 18mA
HM-50 Heavy Metal Pedal
174.207UK

Functions

Notes on use

Specifications
