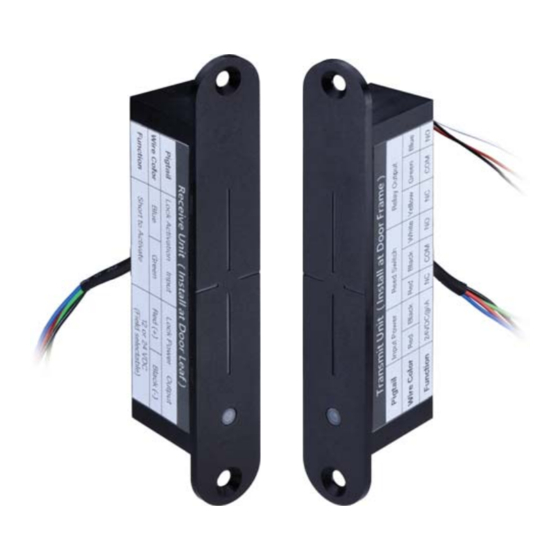

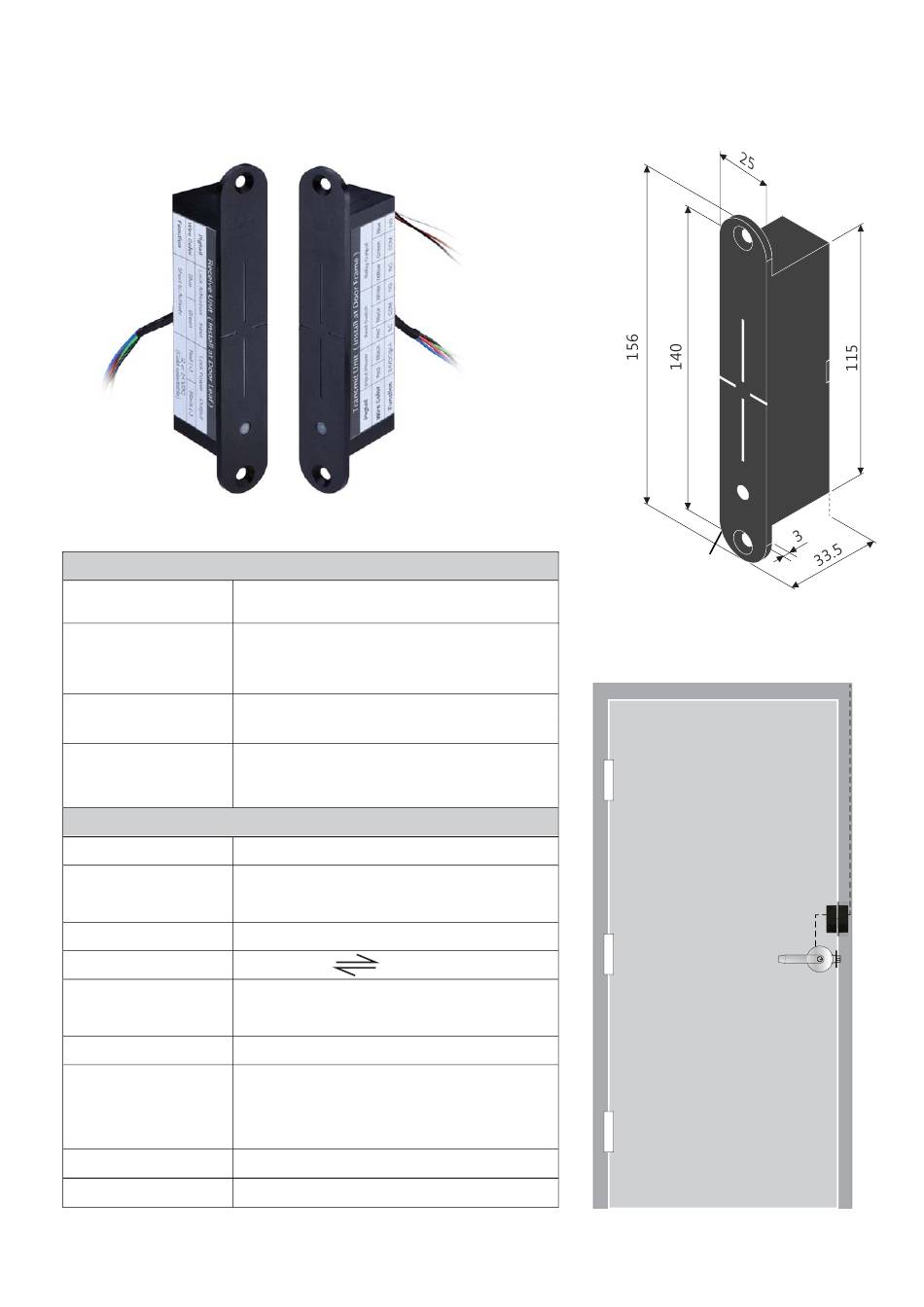

WLP-100 Wireless Power Transfer

Speciﬁcations

Transmitter on Frame Side

Input Power

Current Draw

Lock Status Output

Door Status Output

Receiver on Door Side

Output Power

Current Draw

Lock Status Input

Infrared Sensing

Door Opening Time

Maximum Door Gap

Maximum Tolerance

with 3/16" (4~5mm)

Door Gap

Operating Temperature

Humidity

Installation Instruction

27.6 VDC or (24VAC)

1A/27.6VDC

1.3A/24VAC

*Requires 1.5 A power when energized

Relay (Dry contacts: N.O./N.C./Com.)

Rating: 3A/ 30VDC

Reed Switch

(Dry contacts: N.O./N.C./Com.)

Rating: 0.1A/ 20VDC

12/24 VDC

800mA/12VDC

400mA/24VDC

Dry contacts: N.O./Com.

Transmitter

Receiver

15 / 30 seconds

*For fail-secure locks only

3/16" (4~5mm)

Horizontal alignment : 1/16" (1mm)

Vertical alignment : 1/16" (1mm)

IR Sensing: 1/16" (1mm)

32° to +120.2°F ( 0° to +49°C )

0 to 85% Non-condensing

IR Transmitter

Unit: mm

Inductive Coupling

Power Transfer

Receiver

Transmitter

Unit

Table of Contents

Need help?

Do you have a question about the WLP-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gianni WLP-100

Page 1 Horizontal alignment : 1/16" (1mm) Maximum Tolerance Vertical alignment : 1/16" (1mm) with 3/16" (4~5mm) IR Sensing: 1/16” (1mm) Door Gap 32° to +120.2°F ( 0° to +49°C ) Operating Temperature 0 to 85% Non-condensing Humidity Copyright © All Rights Reserved. P-MU-WLP-100 Published: 2021.03.05...
Page 2 1. Door & Frame Inspection After checking the door and frame conditions, apply the templates at the appropriate location. The WLP-100 can be installed on the latch side, hinge side, or top of the door. 1a. Apply the door side template.
Page 3 2c. Check if the WLP-100 fits well in the cutout and 2d. Install mounting tabs using M5 screws. use the file if necessary. 3. Wood Door Installation 3a. Drill two 1" (25mm) diameter holes, 3b. Drill and cut the WLP-100 main body to a 1/8"...
Page 4 (Lock Status) Blue N.O. Blue N.O. Lock Status Receive Input Unit Green COM. 12VDC 24VDC Door Leaf (Receiver) Red (+) OUTPUT 12 or 24VDC Lock Power (select through jumper Output setting) Black (-) Copyright © All Rights Reserved. P-MU-WLP-100 Published: 2021.03.05...
Page 5 Power Output Lock Status Output RED(+) 12V (+) Electric Lock YEL (N/C) BLK (-) 12V (-) GRN (COM) max 12VDC GRN (COM) BLU (N/O) @800mA BLU (N/O) Lock Status Input OUTPUT INPUT Copyright © All Rights Reserved. P-MU-WLP-100 Published: 2021.03.05...
Page 6 No door status Check installation position/alignment is correct output No sensor output Check installation position/alignment is correct (Both) No lock status Make sure lock status wires are connected to wireless power source output Copyright © All Rights Reserved. P-MU-WLP-100 Published: 2021.03.05...
