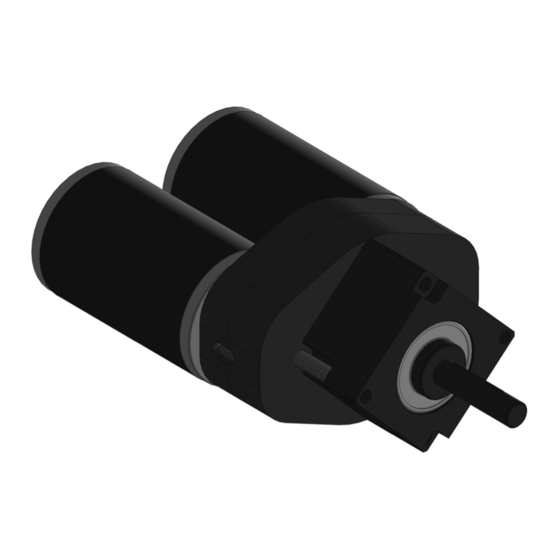

VEXpro VersaPlanetary
Dual Input
Assembly Instructions

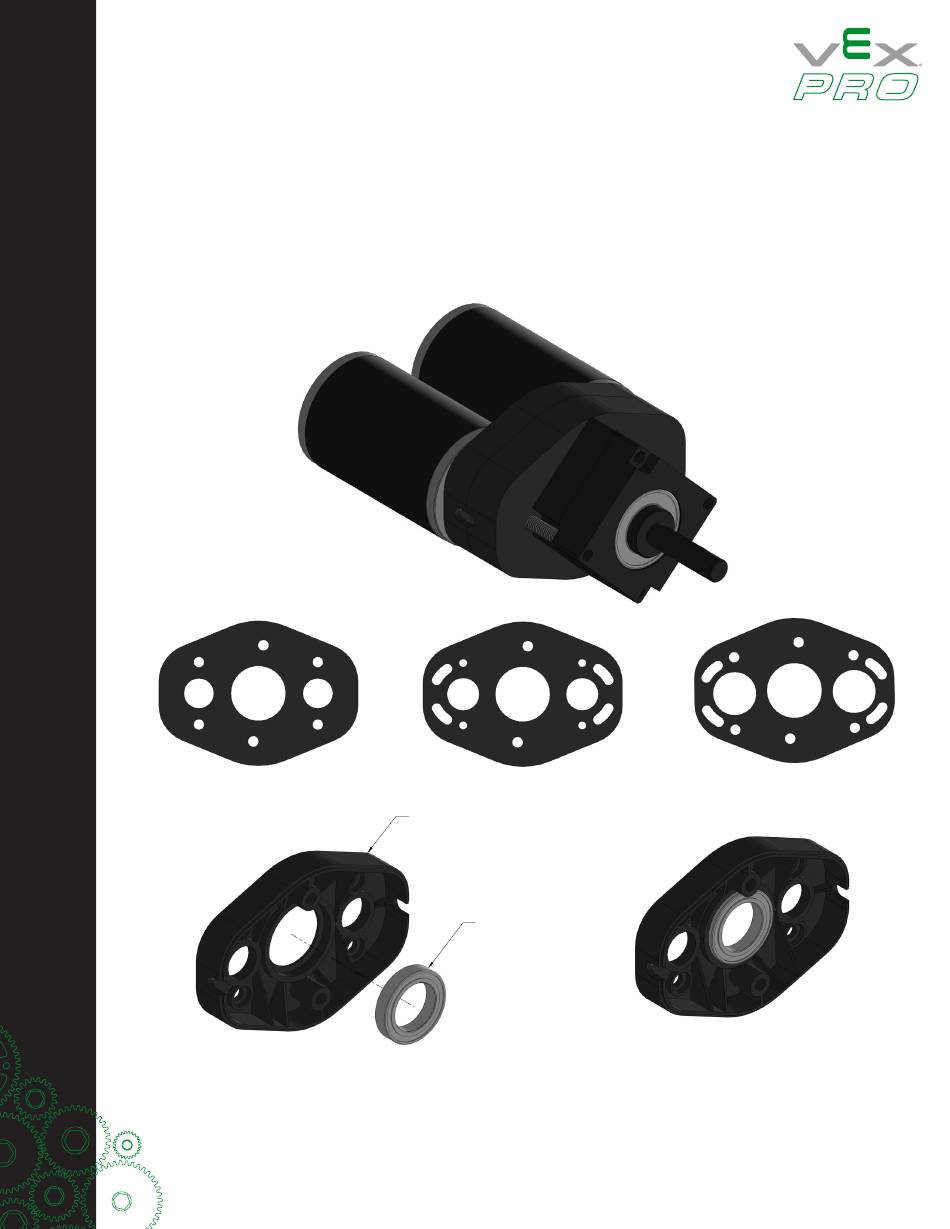

BAG Motor Input Housing
Step 1:
Select the appropriate input housing for your motors. Then insert a 17mm unflanged bearing into the
housing as shown.
0114
RS-550 Motor Input Housing
Input Housing
17mm Unflanged
Bearing
RS-775 Series
Motor Input Housing
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vex Robotics PRO VersaPlanetary Dual Input
Summary of Contents for Vex Robotics PRO VersaPlanetary Dual Input
- Page 1 VEXpro VersaPlanetary Dual Input Assembly Instructions BAG Motor Input Housing RS-550 Motor Input Housing RS-775 Series Motor Input Housing Input Housing 17mm Unflanged Bearing Step 1: Select the appropriate input housing for your motors. Then insert a 17mm unflanged bearing into the housing as shown.
- Page 2 BAG Motor, RS-775 Series or RS-550 (2x) Input Housing Mounting Screw (4x) Step 2: Mount each motor with the appropriate mounting screws. Motor Screws BAG Motor M4 x 10mm RS-550 M3 x 8mm RS-775 M4 x 10mm BAG Motor Collar (1x) RS-550 Motor Collar (1x) RS-775 Series Motor Collar (1x) Step 3:...
- Page 3 Set Screw Clearance Hole Step 4: Slide the input coupler over the motor output shaft until gear cannot slide further. Take care to align the set screw (highlighted green) with the clearance hole before tightening. Repeat for both motors. 8-32 Nylock Nut (2x) Output Housing 17mm Unflanged...
- Page 4 10-32 Screws (2x) User Selected VersaPlanetary (not included) Step 6: Assemble and attach the user selected VersaPlanetary (not included) using (2x) 10-32 screws of a length appropriate for your VersaPlanetary. Number of Stages Screw Output Only 10-32 x 3/8” 10-32 x 7/8” 10-32 x 1-3/8”...
