Interface TRM-4008 User Manual

Packing List

The TRM-4008 terminal block is shipped with the following items. When you open this kit, please verify that the
material you received matches the contents listed in the table below. If any items are missing or damaged, contact
the supplier from whom you bought this product.
Item
Terminal Block
User's Manual

Summary

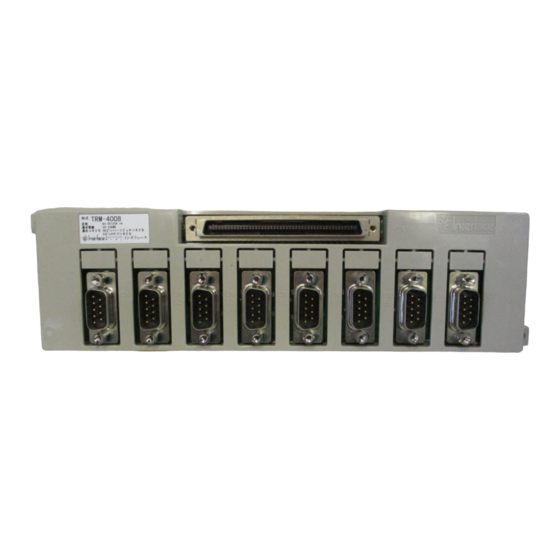

The TRM-4008 terminal block converts a 96-pin half-pitch male connector to eight 9-pin D-sub male connectors
for RS-232C communications. It also includes hardware for mounting on a standard DIN rail.

Specification

Parameter
Insulation voltage
Current rating
Connector
Acceptable cable connector CNA: PCR-E96FA (Honda Tsushin Kogyo Co., Ltd) or equivalent
Environmental conditions

Form Factor

2-φ4.5
）
Interface Corporation
Part Number
TRM-4008
TRM-4008
125 Vac, 125 Vdc
1 A
CN A: PCR-E96MD (Honda Tsushin Kogyo Co., Ltd) or equivalent
CN B1 through CN B8: GMM-C9MD1
CN B1 through CN B8: GM-9LFU
(Honda Tsushin Kogyo Co., Ltd) or equivalent
Operating temperature: 0 °C to 50 °C
Relative humidity: 20% to 90% (non-condensing)
226
217
207
Model label
CN CN CN CN
B1 B2 B3 B4
TRM-4008 Ver. 1.0
Qty.
1
1
Specification
(Honda Tsushin Kogyo Co., Ltd) or equivalent
CN A
CN
CN CN CN
B8
B5 B6 B7
（
#4-40UNC
-1-
21.8
(mounting on a standard DIN rail)
Unit: [mm]
www.interface.co.jp
