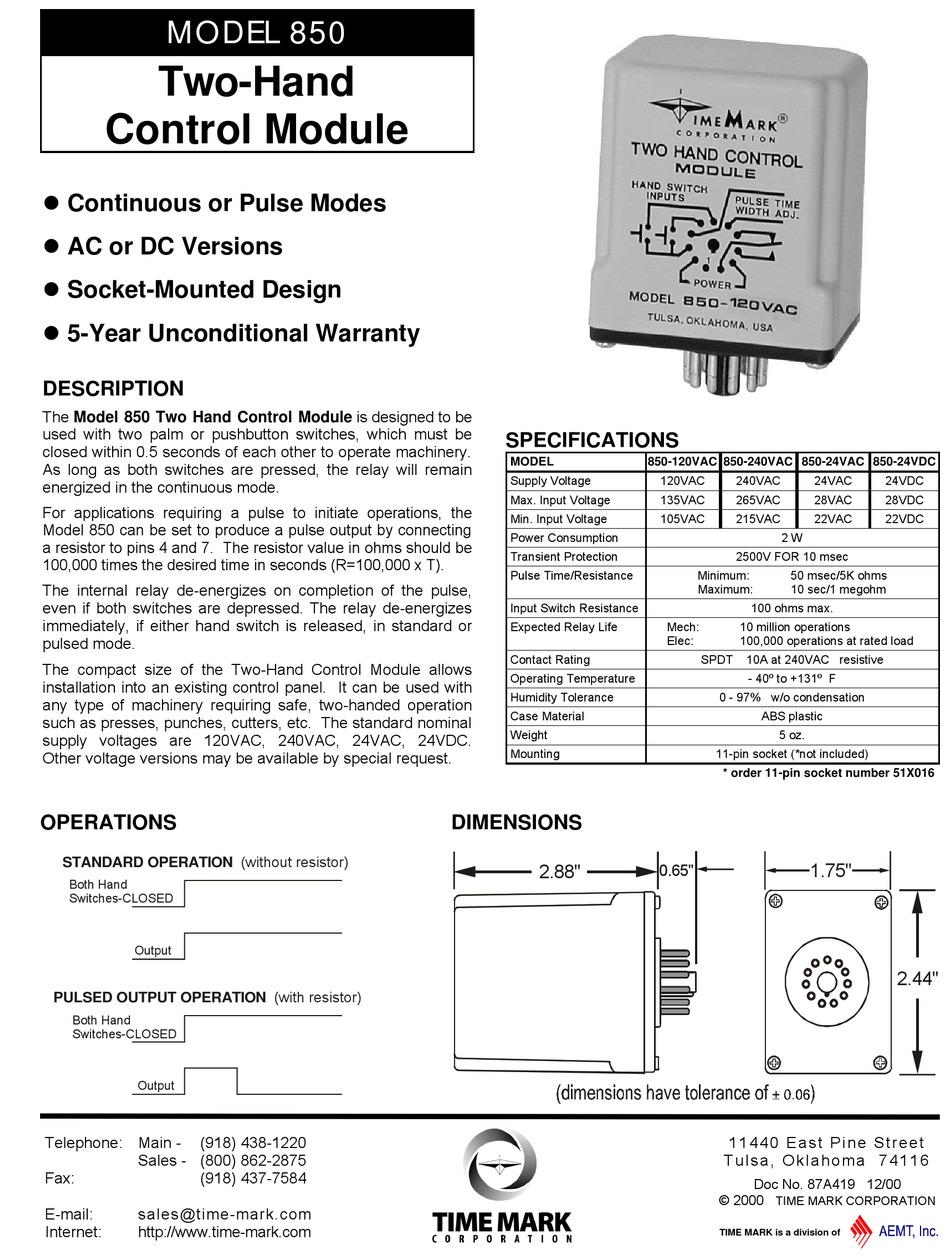

TIME MARK 850 Installation Instructions Manual

MODEL 850
Two-Hand
Control Module
l l Continuous or Pulse Modes
l l AC or DC Versions
l l Socket-Mounted Design
l l 5-Year Unconditional Warranty
DESCRIPTION

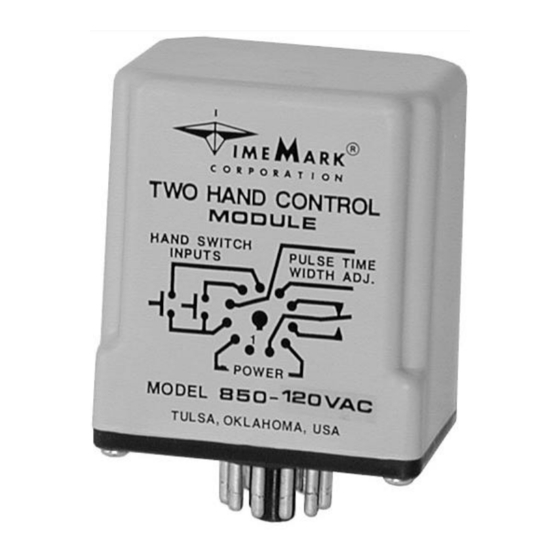

The Model 850 Two Hand Control Module is designed to be
used with two palm or pushbutton switches, which must be
closed within 0.5 seconds of each other to operate machinery.
As long as both switches are pressed, the relay will remain
energized in the continuous mode.
For applications requiring a pulse to initiate operations, the
Model 850 can be set to produce a pulse output by connecting
a resistor to pins 4 and 7. The resistor value in ohms should be
100,000 times the desired time in seconds (R=100,000 x T).
The internal relay de-energizes on completion of the pulse,
even if both switches are depressed. The relay de-energizes
immediately, if either hand switch is released, in standard or
pulsed mode.
The compact size of the Two-Hand Control Module allows
installation into an existing control panel. It can be used with
any type of machinery requiring safe, two-handed operation
such as presses, punches, cutters, etc. The standard nominal
supply voltages are 120VAC, 240VAC, 24VAC, 24VDC.
Other voltage versions may be available by special request.
OPERATIONS
STANDARD OPERATION (without resistor)
Both Hand
Switches-CLOSED
Output
PULSED OUTPUT OPERATION (with resistor)
Both Hand
Switches-CLOSED
Output
Telephone: Main - (918) 438-1220
Sales - (800) 862-2875
Fax: (918) 437-7584
E-mail: sales@time-mark.com
Internet: http://www.time-mark.com
SPECIFICATIONS
MODEL
Supply Voltage
Max. Input Voltage
Min. Input Voltage
Power Consumption
Transient Protection
Pulse Time/Resistance
Input Switch Resistance
Expected Relay Life
Contact Rating
Operating Temperature
Humidity Tolerance
Case Material
Weight
Mounting
DIMENSIONS
2.88"
850-120VAC 850-240VAC 850-24VAC 850-24VDC
120VAC 240VAC 24VAC
135VAC 265VAC 28VAC
105VAC 215VAC 22VAC
2 W
2500V FOR 10 msec
Minimum: 50 msec/5K ohms
Maximum: 10 sec/1 megohm
100 ohms max.
Mech: 10 million operations
Elec: 100,000 operations at rated load
SPDT 10A at 240VAC resistive
- 40º to +131º F
0 - 97% w/o condensation
ABS plastic
5 oz.
11-pin socket (*not included)
* order 11-pin socket number 51X016
1.75"
0.65"
1 1 4 4 0 E a s t P i n e S t r e e t
T u l s a , O k l a h o m a 7 4 1 1 6
Doc No. 87A419 12/00
© 2000
TIME MARK CORPORATION
TIME MARK is a division of
24VDC
28VDC
22VDC
2.44"
