- Page 1 Linux based Set-Top Box MAG420 MAG420w1 Instruction Manual...
-
Page 2: Regulatory Information
The full text of the EU declaration of conformity is FCC Caution: available at the following internet address: This device complies with Part 15 of the FCC Rules. www.infomir.eu/eng/support/declarations Operation is subject to the following two conditions: FCC Compliance Statement 1) this device may not cause harmful interference, and... - Page 3 Note: Specifications are subject to change without notice. Infomir reserves the right to revise this publication and to make changes in its content from time to time by posting new specifications and other content at...
-
Page 4: Warranty
Warranty Warranty term: Europe, MEASA and Oceania: Warranty Service Coupon 2 years from date of sale (but not more than 2,5 years from manufacture date). (to be filled in by a shop-assistant) The USA, Americas, Russia, Ukraine and other regions: Date of Sale: 1 year from date of sale (but not more than 1,5 years from manufacture date). - Page 5 Warranty Processing Centers List: Europe: Russia, Belarus: ZLS Services GmbH Tel.: +38 048 759 09 00 Hamburger Allee 56 e-mail: warranty@infomir.com 60486, Frankfurt am Main, Germany Ukraine: Tel: +49 6196 204 83 18 Telecommunication Technologies LLC e-mail: warranty@infomir.com 4/D, Nebesnoi Sotni Avenue...
-
Page 6: Warranty Conditions
Warranty conditions The present warranty is only valid if the defective (2) mounting and maintenance of the product in conditions not corresponding to safety standards and regulations valid in product is provided with property filled in Warranty the country of use; Service Coupon. -
Page 7: Copyrights And Trademarks
Copyrights and Trademarks Notice of Copyright non-transferrable license, without the right to sublicense, for use of all software and documents with Telecommunication Technologies LLC. All rights the product only. You recognize and acknowledge reserved. The Information contained herein is the that Telecommunication Technologies LLC and your property of Telecommunication Technologies LLC services’... - Page 8 In the event your product requires maintenance service, you should contact the services’ supplier directly. Trademarks Инфомир, Infomir, MAG are the trademarks of Infomir Group. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.
-
Page 9: Product Care
Terms of using Product Care Safe and Efficient Using Maintenance of Product Device does not contain harmful or hazardous substances. The product should not be disassembled. The tries of the disassembling of the product may be dangerous Accessories for your life and for serviceability of the product. Use the accessories supplied with your arrangement or The self-supporting disassembling invalidates you recommended by the manufacturer only. -
Page 10: Specifications
Specifications Physical Parameters H.264 AVC High@L5.1 2160p@30 fps, XviD, 3D video support Model: MAG420, MAG420w1 Video containers: TS, AVI, MPEG, MP4, MOV, MKV, M2TS, VOB Weight: 128 g Audio Codecs: MPEG L1/L2/L3, AAC-LC, HE AAC V1/V2, Dimensions (approximately): 132 mm width,... - Page 11 Specifications External Power Supply Unit Type: Pulse with universal inlet Input: 110-240 V AC, 50-60Hz, 0.5A max Output: 12 V DC, 1A, 12 W Average active efficiency: 83% (min) Efficiency at low load (10%): 79.54% (min) No-load power consumption: < 0.1W Package Type: cardboard box.
- Page 12 The Product Unpacking and Installation After the product extraction out of the package it is Do not touch or move the product during its necessary to handle it with care, do not drop, shake operation. Switch off the product if you need it and afford other influence.
- Page 13 Operation them on TV. Any other use is prohibited. It means Telecommunication Technologies LLC insists on the The outer power supply unit of the product is getting product usage in entirely accordant to the law of warm in operation. In case of outer power supply unit copyright.
- Page 14 About your MAG420, MAG420w1 Front Panel IR-receiver Indicator of stand-by mode/ Indicator of the Remote Unit Buttons pushed Back Panel Power Supply 2. S/PDIF* 4-pin 3,5 mm jack, Composite video output, Stereo line output HDMI Ethernet LAN port Fn – Reset to factory settings/...
- Page 15 Connecting to MAG420, MAG420w1 Connecting with HDMI – best quality Connecting with AUDIO/VIDEO Input – good quality White Yellow Warning! Switch off all the devices (TV, amplifier, etc.) and take the power supply unit out of the socket before connecting or disconnecting any cable. If the amplifier is not connected leave digital audio outputs disconnected.
- Page 16 Using Remote Control to control the Device This section explains how to unpack Remote Control Code page alteration (RC) and prepare it for work. Your service provider The SRC-4015 remote control is designed with the ability can supply the product with an alternative RC. to switch over three different Infra-Red systems or Code In that case please refer to the manual supplied Pages (CP).
- Page 17 Remote control SRC-4015 Favorites STB Power To select a TV channel Search Keyboard Info Menu Home Back Mute Right Left Down Confirm Switch channels Volume Additional functions Rewind Play/Pause Resize Forward Stop...
- Page 18 Remote Control Unit (optional) Press «SETUP» and «OK» buttons at same time and hold If MAG420, MAG420w1 package includes a remote for 2 seconds red LED will flash 5 times. Reset is done. control with a block of five programmable buttons...
- Page 19 Programmable Remote Control SRC-4513 (optional) Programmable section Turn the Media Player On / Off Additionan functions Change audio mode Sound On/Off Setup menu TV Guide Virtual keybord Context menu Quick TV access Back Info Exit Menu Right Left Switch channels Volume Down Confirm...
-
Page 20: Product Information
Product information Product: Serial Number: MAC: The set includes the following: Optionally the set may include the following: Set-Top Box - 1 pcs. 3,5 mm Jack to 3 RCA cable - 1 pcs. External Power Supply 12V - 1 pcs. LAN network cable - 1 pcs.
Need help?
Do you have a question about the MAG420 and is the answer not in the manual?
Questions and answers
Channel locked how can I unlock
If your IPTV portal has been blocked after a firmware upgrade on the MAG 420, you can unblock it by downgrading the firmware. The latest firmware blocks certain portal URLs due to copyright infringement complaints. However, downgrading the firmware is possible despite the "Unsupported Architecture" error. Follow a similar process used for the MAG 322 to complete the downgrade.
This answer is automatically generated

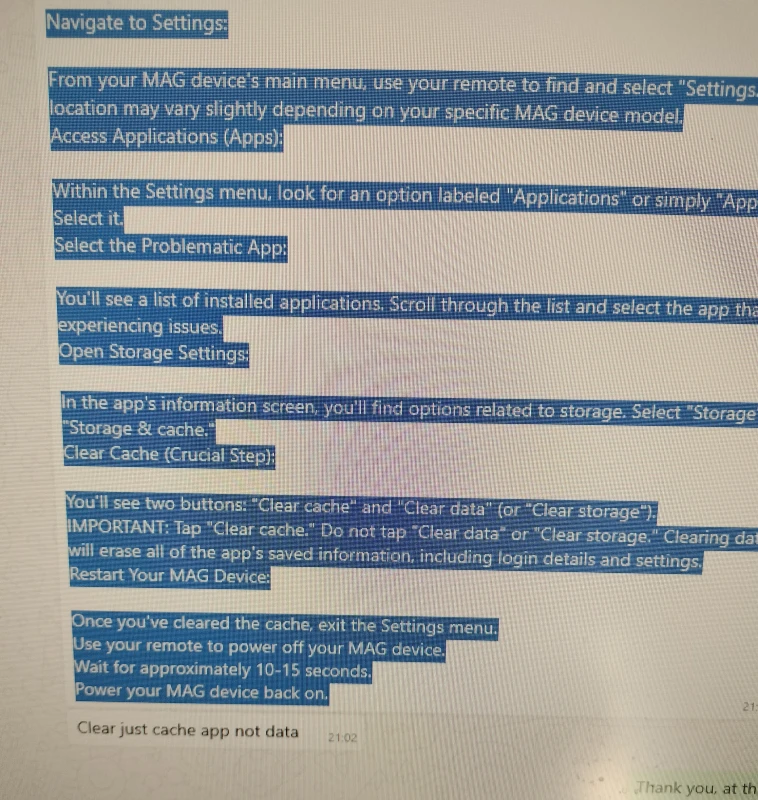

My IPTV supplier needs me to "CLEAR CACHE" as per the picture below. I **** English living in Spain and have used your Mag Box 420w1 since 2020 and we ned to change IPTV supplier but cannot connect at this time due to what they think needs to be done. Please advise. Kind Regards Richard
