Summary of Contents for Roger XM-8DR
- Page 1 Roger Access Control System XM-8DR I/O expander Operating Manual Firmware version: 1.0 Hardware version: 1.0 Document version: Rev. C...

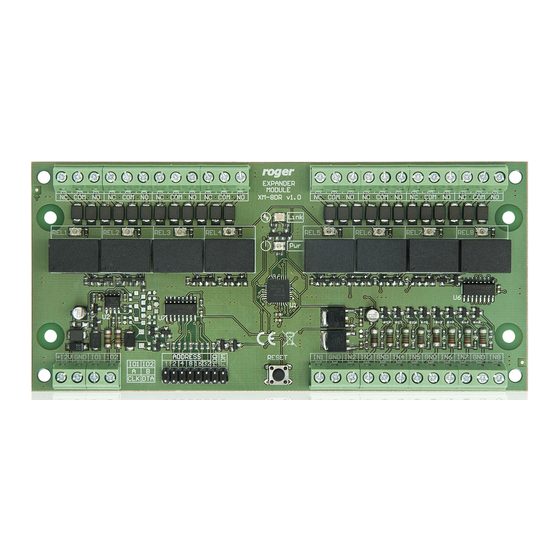

- Page 2 1. D ESCRIPTION AND SPECIFICATION The XM-8DR is I/O expander with 8 NO/NC input lines and 8 relay outputs with single NO/NC contact each. The module is addressable and it is dedicated to devices with RACS Clock&Data interface, namely RACS 4 controllers.
- Page 3 Relay common terminal Relay output (NC) In the fig. 2 there is shown connection diagram for XM-8DR and PR402DR access controller. The communication is performed by means of RACS Clock&Data bus. Fig. 2 Connection of XM-8DR-BRD expander with PR402DR controller 2.2.
- Page 4 2.3 Power supply The XM-8DR requires 12VDC nominal power supply. If the voltage is below ~10V then the module stops its operation, deactivates all relays and signals the error by means of LED Power indicator (blinks 10 times per second).
- Page 5 JP6 if XM-8DR is to operate with PRxx2 series controller (RACS 4). JP7 pins can be used for selection of operation mode. If the jumper is on JP7 then XM-8DR operates in standalone mode and then its relay outputs can be activated by electric signal at corresponding inputs i.e.
- Page 6 Fig. 4 XM-8DR module in elevator access control Page 6 of 8...
- Page 7 3.3. Firmware update Roger devices are always delivered with the latest version of firmware but it can be updated by customer. The latest version of firmware, which might offer new functionalities and/or eliminate errors is available at www.roger.pl. New firmware can be uploaded to XM-8DR by means of computer z with RogerISP software (ver.
- Page 8 Weight of the equipment is specified in the document. Contact: ROGER sp. z o.o. sp. k. 82-400 Sztum Gościszewo 59 Tel.: +48 55 272 0132 Fax: +48 55 272 0133 Tech.
