- Page 1 ESPRESSO COFFEE MACHINE INSTRUCTION MANUAL Item CRONOS Power 220 V, 50 Hz Please read the manual before use and save it for future reference 1 / 21...
- Page 2 *IMPORTANT SAFEGUARDS Before using machine always carefully read and follow below instruction to operate your machines 1. Check the voltage to make sure it is comply with the voltage on the name plate. 2. This machine must be connected to a grounded outlet. the person lack of experience or knowledge to 3.

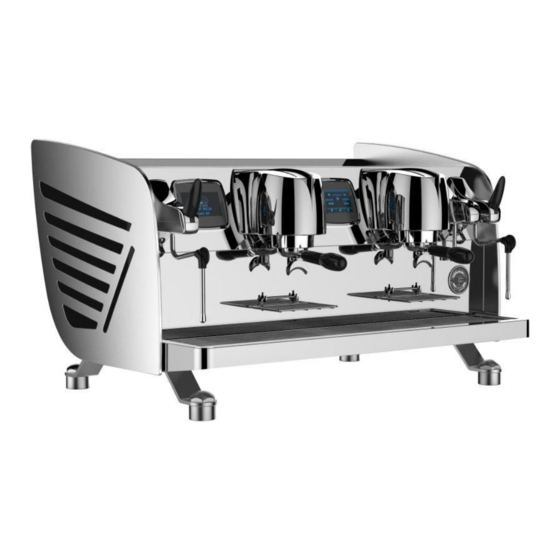

- Page 3 * KNOW YOUR MACHINE 2.1 Product outside view CRONOS outside view (The shape of the product is based on the real machine) 2.2 Introduction of function interface 2.2.1 Turn on the machine interface (pic 1) : touch the power button then will enter the interface (pic 2)
- Page 4 2.2.2 Standby interface (pic 2) (Pic. 2) Button and indicate instruction : 1. Auto coffee button (1 small cup) 8. Abnormal intruction 2. Auto coffee button (2 small cups) 9. Power button 3. Auto coffee button (1 big cup) 10. Date 4.
- Page 5 (pic 5) (pic 6) (Pic 7) (Pic 8) 2.2.3 Setting interface : Touch “7” in (pic 2), to enter the setting interface, touch“①”,”②” the interface can be exchanged (Pic 9) (Pic 10) 5 / 21...
- Page 6 2.2.4 About the machine interface (Pic 11); touch (Pic 9, 10) in “about the machine”, will enter about the machine interface (Pic 12) 2.3 List of basic parameters of this product series Model No CRONOS Rated volltage 220V 50Hz single phase Rated Power 4200W Product size W980×H590×D680...
- Page 7 Coffee boiler 2 0.8L 9Bar Steam pipe Stainless steel 1 head Hot water pipe Stainless steel 1 head Pump 9Bar adjusted vane pump Pressure gauge Double scale Decoration light for brewing head Operation panel Touch, double screen 2.4 Accessories Small cup rack Tamping tool Spoon Cleaning mat...
- Page 8 三、First use instruction 1. Open the package and get the machine out check all the accessories are together with the machine . remove the protect film in the metal surface; (pic 12) 2. Take out the water tray; (pic13) 3. You can see the power cord inlet water pipe ,outlet water pipe in the bottom of the coffee machine;...
- Page 9 Remark: the machine can be used even the heating is not finished, but the coffee or hot water temperature will be lower. Steam, brewing head 1, brewing head 2 (CRONOS) can be turn on or of independently 4.2 making coffee...
- Page 10 To avoid scald ,not to touch the high temperature parts of the machine during it's working 4.2.1 Making coffee by automatically Put the coffee powder in funnel, use the tamper to press the powder; (pic 16) Swirl the porta filter into coffee machine and rotate and tighten it;...
- Page 11 Touch the by manual button (pic2), then you can get the coffee, When the coffee achieve certain amount , touch this button again (pic7) or touch return icon (pic 19), the machine will stop making Coffee, and return back to standby mode. ...
- Page 12 After making steam, push or pull the steam handle, the steam function will close. Remark: The temperature for the steam tube surface is very high, not to touch it so as not to scald, if you want to move the steam tube, please hold the black plastic part (pic 21) (pic 20) (pic 21)
- Page 13 4.6 Setting Touch the setting button "7" in the standby interface (pic 2) to enter the setting (pic9), in this interface, you can open / close the "screen saver function", "reservation function", "pre-infuse function", and you can set the date and time, after finish , touch "save the settings", and return to standby (pic 2);...
- Page 14 Remark: Coffee flow setting: The minimum value is 10. The maximum value is 300. Hot water making time setting: The minimum value is 3. The maximum value is 50 Coffee temperature setting: The minimum value is 80 The maximum value is 98. The basic flow setting : The minimum value is 10 The maximum value is 9990 4.7 Auto coffee flow setting Touch auto coffee button "1,2,3,4"...
- Page 15 the water will stop, then the hot water making is setting ok, return to standby interface. 4.9 About the machine Touch "7" in standby interface, and enter setting interface (pic 9), in current interface, touch "about the machine" icon, it will enter the machine interface (pic 11), in this interface, you can see the information "coffee temperature low", "coffee temperature high".
- Page 16 (Pic 23) 4.13 Antifreeze treatment Remark: The coffee machine can not be used in the environment where the temperature is lower than the freezing point. If used, the coffee machine will be damaged. If you need to ols use it, you need to use the heating equipment (such as air conditioning, heating and so on) to increase the room temperature to the freezing point and use it after 2 hours.
- Page 17 When finishing using the coffee machine, shut down the water inlet valve before turn off it After shut down the water inlet valve, touch the manual coffee button let the water flow out from boiler for 15s and turn off the manual coffee button, and press the power button "9"...
- Page 18 * PROBLEM SHOOTING Problem Cause / Result Solution Turn off machine and turn on it until there is No water water or use barrel Machine water don’t come into water Water inlet pipe is bent Dredge water inlet pipe after turn on or blocked Please contact with the Machine malfunction...
- Page 19 Internal component is Please contact with the broken authorized service Machine is preheating, No hot the internal temperature Waiting for internal water come and pressure is not preheating finish enough Machine is preheating, the internal temperature Waiting for internal and pressure is not preheating finish No steam enough...
- Page 20 *CLEAN AND MAINTENANCE 1. The machine has to be switched off and cooled down before clean; 2. Use a cloth dip some water or a neutral detergent clean the outside of machine; 3. Rotate left to remove filter holder and filter, knock out coffee grounds and clean it;...
- Page 21 After cool down the machine, open the drain out valve in the bottom of the machine to drain out the waste water. Then connect the outlet water source, and turn on the machine follow 4.1 to operate the machine after pre-heating, follow 4.2 to make coffee, and 4.3 to make hot water for more than 20 times, then the clean is finishing.
