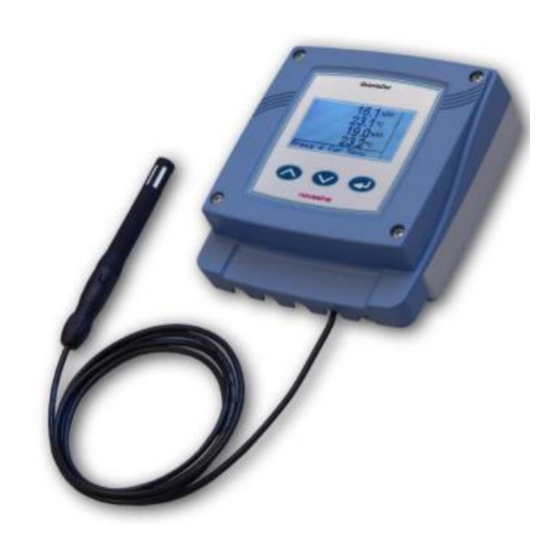

Summary of Contents for Novatron Novasina Quantadat TRIPLEX
- Page 1 Novasina Quantadat TRIPLEX humidity system with nSens probes. Set – up & commissioning manual...
-
Page 2: Accessories Supplied
Accessories supplied :- 3 x Nsens probe for humidity temperature. 3 x Probe mountings ( either surface or duct). 3 x Probe extension cables (supplied as 5M unless otherwise requested). Humidity salt calibration capsules ( SC) for checking performance of humidity sensor tolerance ( +/- 1% rH). 3 x humidity calibration salt capsules supplied : SC 33, 58 &... - Page 3 Fitting & Connection diagram Power Nsense probe: 24 V Green Brown White Power supply 24 V ac / dc Output CH1 4-20mA Humidity 0 to 100% Analogue outputs 4-20mA CH2 : -20 to + 80 C CH1 : 0 to 100% rh Output CH2 4-20mA Temp -20 to +80 C...
- Page 4 Quantadat differently from the original specified settings shown in the previous section 2 ( direct replacement for old TR200 Triplex system) or if the configuration, carried out by Novatron prior to delivery, has been altered in error . Otherwise, please ignore the following steps, you are now ready to skip...
- Page 5 Step 1: Connect nSens to Quantadat and start detection At first startup this message might appear: Choose YES to reach Sensor Setup directly Otherwise follow these instructions to detect sensors manually: Main Display: Press for Menu IF sensors have been recognized already this message appear.
- Page 6 Automatic: (recommended) In case of probe replacement the systems assigns automatically the new sensor in place of the old sensor. Press Enter and arrow keys to select one of Manual: In case of probe replacement the these options: new probe/sensor must be searched and assigned manually to the measuring point as Automatic described in Step 1...
- Page 7 Step 4: Configure analog signals according your specification Press for Menu Scroll down Output signal setting • 4…20mA • 0…20mA • 2…10V • 0…10V Scroll down Note: this setting is adopted for all 4 analogue outputs. Range L Setting of lower analogue output range Range H Setting of higher analogue output range On Fail...
- Page 8 3.Calibration The three Quantadats ,with matched Nsens probes ,are supplied calibrated with a traceable certificate and no calibration checks should be necessary under normal circumstances, only if readings are supect for some reason. A calibration kit ( SC humidity pots) is suplied only if this is the case.
- Page 9 4.Completion of installation Installation and comissioning is now complete and you are ready to put the Triplex Quantadats into operation. For any further assistance please contact Novatron Scientific Ltd: t. (00 44) 1403 754416 - hours 8:30 – 17:00 GMT Sales@novatron.co.uk Simon.Long@novatron.co.uk...
