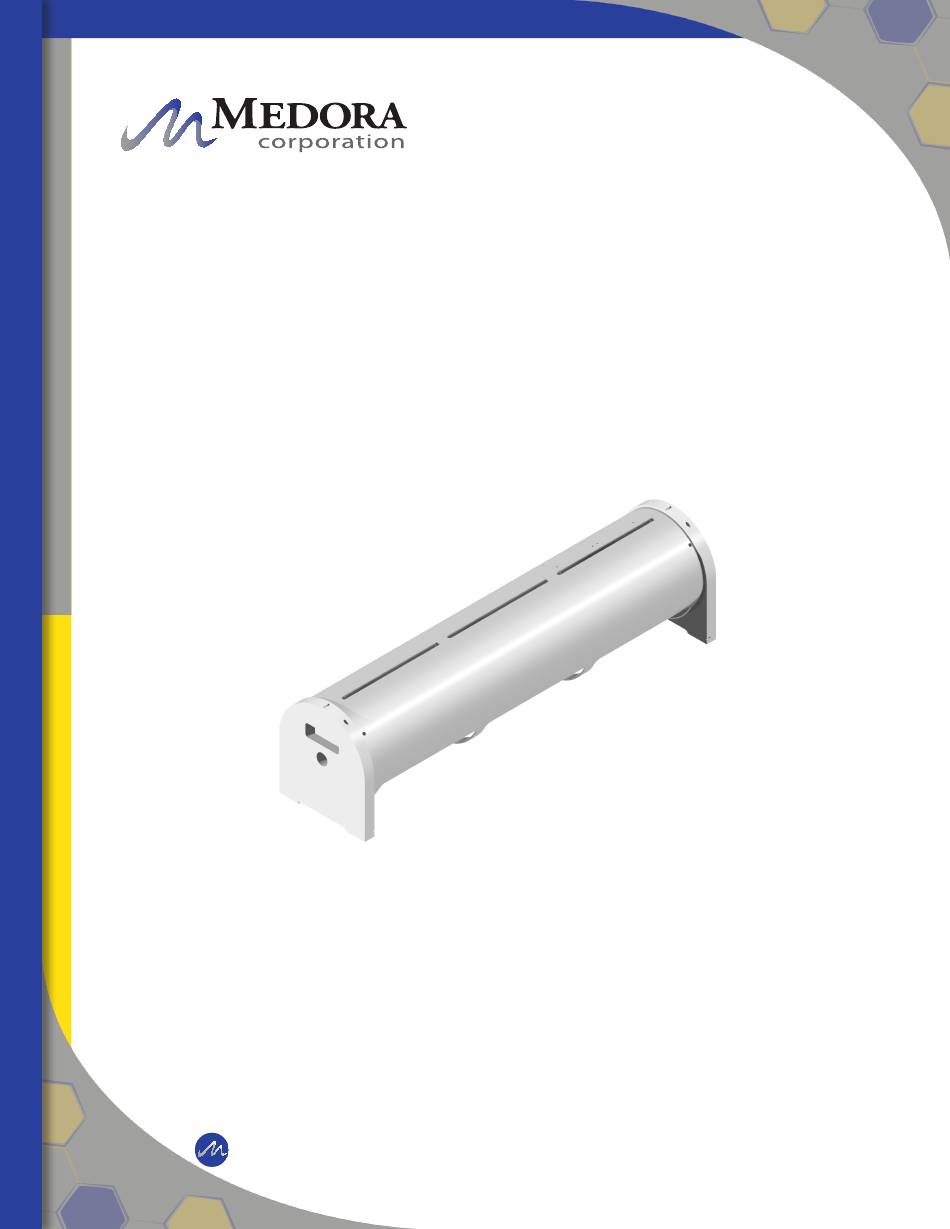

- Page 1 GS-12-Air 120V Owner's Manual © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com O&M_GS_12_Air_120V_10389_20191017...
- Page 2 Customer Service About Medora Corporation Medora Corporation combines knowledge and experience from across the water quality spectrum to help solve real-world problems. Whether in Lakes, Stormwater Retention Ponds, Raw Drinking-Source Reservoirs, Water Treatment Plants, Potable Storage Tanks, or Wastewater Treatment Processes, Medora Corporation equipment continues to be at the forefront as the #1 world leader for in-situ water body treatment.
- Page 3 Most accidents can be avoided by using common sense and concentration on the job being done. Carefully read safety information when you see any safety symbols. © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1949_10036_20191001 O&M_GS_12_Air_120V_10389_20191017 - 1...
- Page 4 CAUTION: EDGES MAY BE SHARP AND WARNING: ICE SURROUNDING MACHINE CAUSE LACERATION IF PROPER CARE IS MAY NOT SUPPORT WEIGHT, KEEP CLEAR OF NOT USED. THIN ICE. © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1949_10036_20191001 O&M_GS_12_Air_120V_10389_20191017 - 2...
- Page 5 "OFF" position. The On/Off switch is to be by OSHA. used as the emergency stop. © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1949_10036_20191001 O&M_GS_12_Air_120V_10389_20191017 - 3...
- Page 6 Tank-roof junction box (Optional Ac- cessory Item included with Heated Interior Hose Exterior Hose hose, mounts onto through-tank (Optional Accessory Item) (Optional Accessory Item) fitting, ) © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10401_20191001 O&M_GS_12_Air_120V_10389_20191017 - 4...
- Page 7 GFCI Circuit Breaker lowest point of the hose. Figure 1: Typical GS Placement FULL RATING LOCKED LOAD ROTOR AMPS VOLTS S.F. WATTS AMPS 0.655 © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10403_20191001 O&M_GS_12_Air_120V_10389_20191017 - 5...
- Page 8 GS-12-Air INSTALL THROUGH TANK FITTING: STEP 1: Locate the hatch where the GS-12-Air mixer will be installed through and mark a penetration point on the roof for the penetration fitting. When selecting a penetration location be sure to confirm the following: A.
- Page 9 GS-12-Air INSTALL GS-12-Air MIXER: STEP 1: Plan out a safe procedure and hoist the GS-12-Air mixer to the top of the tank near the hatch opening. Use the chain attached to the GS-12-Air mixer for lifting and supporting the weight.
- Page 10 4’. Best attaching method depends on specific tanks. © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10390_20191001 O&M_GS_12_Air_120V_10389_20191017 - 8...
- Page 11 Installation and Operation GS-12-Air The GS-12-Air is designed to circulate water by bringing water from along the tank floor and sending it upward and out across the water surface in layers causing direct and induced mixing effects. The air diffuser creates thousands of tiny bubbles which produces a "Low Pressure Zone" that creates an uplift suction flow through the intake draft tube, and a slight mound at the water surface, producing gentle flow radially outward from the AP Unit.
- Page 12 Operation Check (While Mixer is Running) Reading / Observation Source Voltage Reading Amperage Reading Flow Check Auditory Flow Check Visual © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1931_10003_20191001 O&M_GS_12_Air_120V_10389_20191017 - 10...
- Page 13 Loose or Loss of Connection Circuit Breaker not tripped Amperage Reading Compressor Making Loud Noise Motor Bearing Failure Ohm Reading Compressor Gasket Failure © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 10409_20191017 O&M_GS_12_Air_120V_10389_20191017 - 11...
- Page 14 Some gases can explode when combined with air. Please verify that you have proper ventilation to prevent a buildup of methane gas or other gases in the headspace above the explosion limit. Certifications - Medora Corporation's potable water products are certified to ANSI/NSF Standard 61, and 372 for lead-free content. Learn more at: www.medoraco.com/std61 Life / Maintenance / Warranty - 25-year design life, limited maintenance.
- Page 15 Corporation may choose to send the replacement parts to the owner postage-paid and may pay the owner a reasonable labor allowance, as determined solely by Medora, to install the parts. There is no liability for conse- quential damages of any type. The warranty that is submitted and provided with the purchased equipment is the valid warranty.
- Page 16 If you feel the need to service your SolarBee or GridBee circulation equipment, please contact Medora's Customer Service Department at: +1 866 437 8076 © 2019 Medora Corporation | www.medoraco.com | 866 - 437 - 8076 | info@medoraco.com 1928_10001_20191017 O&M_GS_12_Air_120V_10389_20191017 - 14...
