Summary of Contents for CountyLine MS10

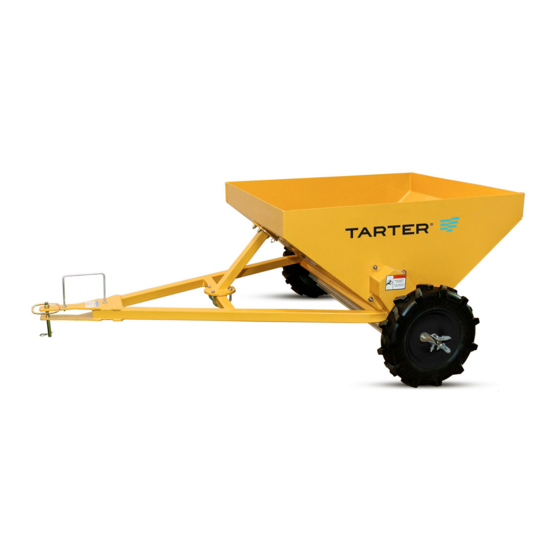

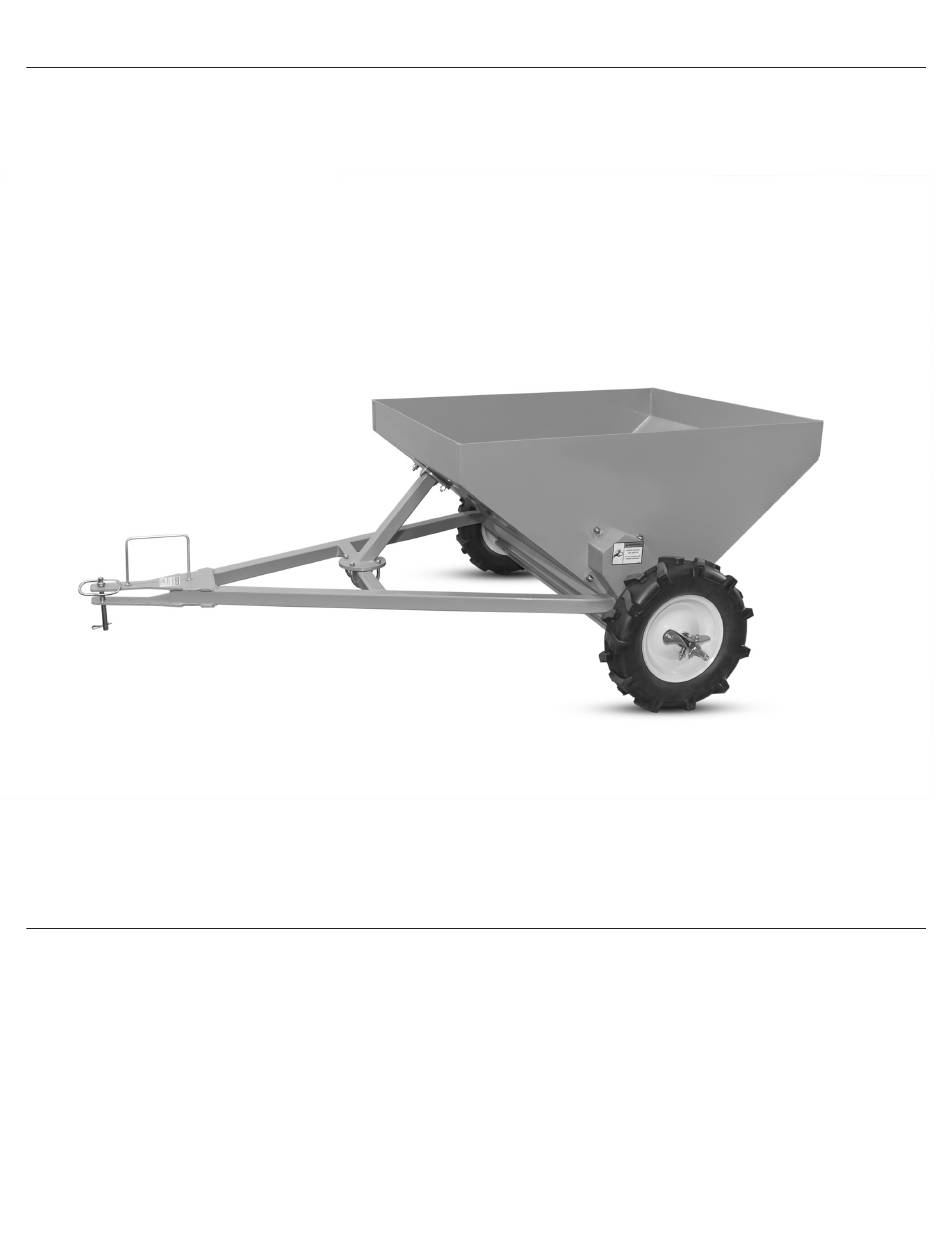

- Page 1 MANURE SPREADER OPERATION AND ASSEMBLY MANUAL...
-
Page 2: Introduction
INTRODUCTION TO THE OWNER: Read this manual before operating your equipment. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become acquainted with all adjustments and operating procedures before attempting to operate the equipment. Replacement manuals can be obtained from your selling dealer. The equipment you have purchased has been carefully engineered and manufactured to provide dependable and satisfactory use. -
Page 3: Table Of Contents
INTRODUCTION TABLE OF CONTENTS Introduction ...........................2-3 Safety .............................4-7 Description ..........................8 Attaching ..........................9 Detaching ..........................9 Operation & Maintenance ......................10 Storage ...........................10 Troubleshooting ........................10 Parts ............................11 Warranty ..........................12 General Information The purpose of this manual is to assist you in operating and maintaining your manure spreader for years of service. Read it carefully. -
Page 4: Safety
SAFETY TRAINING Personal protection equipment including hard hat, safety glasses, safety shoes, and gloves are recommended during Safety is a primary concern in the design and manufacturing assembly, installation, operation, adjustment, maintenance, of our product. Unfortunately, our efforts to provide safe repairing, removal, or moving the implement. - Page 5 SAFETY (continued from previous page) and tools are properly grounded. Use adequate light for the job at hand. Make sure there is plenty of ventilation. Do not allow riders on or in the Manure Spreader at Never operate the engine of the towing vehicle in a closed anytime.
- Page 6 SAFETY STORAGE taking prescription medications. Following operation, or when unhooking the Manure Under no circumstances should children under the age Spreader, stop the atv or utv, set the brakes, shut off the of 18 be allowed to work with this equipment. Do not engine and remove the ignition keys.
- Page 7 SAFETY AND INSTRUCTION DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Decals Immediately if Damaged! (decal located inside hopper) 3 PINCH POINT 2 MANUAL NOTICE 1 CRUSH POINT (decal located inside hopper) GREASE WARNING 6 ENGAGE WHEEL 5 GREASE CAUTION...
-
Page 8: Description
DESCRIPTION Your Manure Spreader has been carefully designed for spreading manure. This manual is provided to give you the necessary operation and maintenance instructions for keeping your manure spreader in excellent operating condition. Please read this manual thoroughly. Understand the purpose of the controls and how to use them. Observe all safety precautions on the machine and as noted throughout this manual. -
Page 9: Attaching
OPERATION & MAINTENANCE ATTACHING 2. The flip lever to engage spreading drum. Lever not engaged 1. First make sure you’re on a level surface. Back atv/utv up to the tongue of the spreader. Align holes on the hitch and tongue of spreader. Lever engaged 2. -
Page 10: Storage
(continued from previous page) 3. Spreader can also be stored by leaning it back on hopper. Two fittings located underneath the spreader, and two on each side of the agitator outside of the hopper. 2. After every use spray out hopper and spreading drum. -
Page 11: Parts
PARTS Parts Overall View Item Number Part Number Description 2000116 Agitator Bar 2000117 Tire/Wheel Combo 9000021 Axle Locking Mechanism w/ Hardware 2000118 Rubber Seal Strip 9000022 Handle w/ Hardware 2000119 Large Agitator Sprocket 2000120 Small Axle Sprocket 2000121 Chain Guard 2000122 Agitator Block Bearing 2000123... -
Page 12: Warranty
WARRANTY WARRANTY The manufacturer warrants to the original purchaser that the implement is free from defects in both material and workmanship under normal use and service for a period of one (1) year for noncommercial use. Any use by commercial, state, and municipalities will void warranty. - Page 13 NOTES...
- Page 14 Part Number – 4000007 T020817...
