Summary of Contents for Taylor Made Convertable Binimi Top

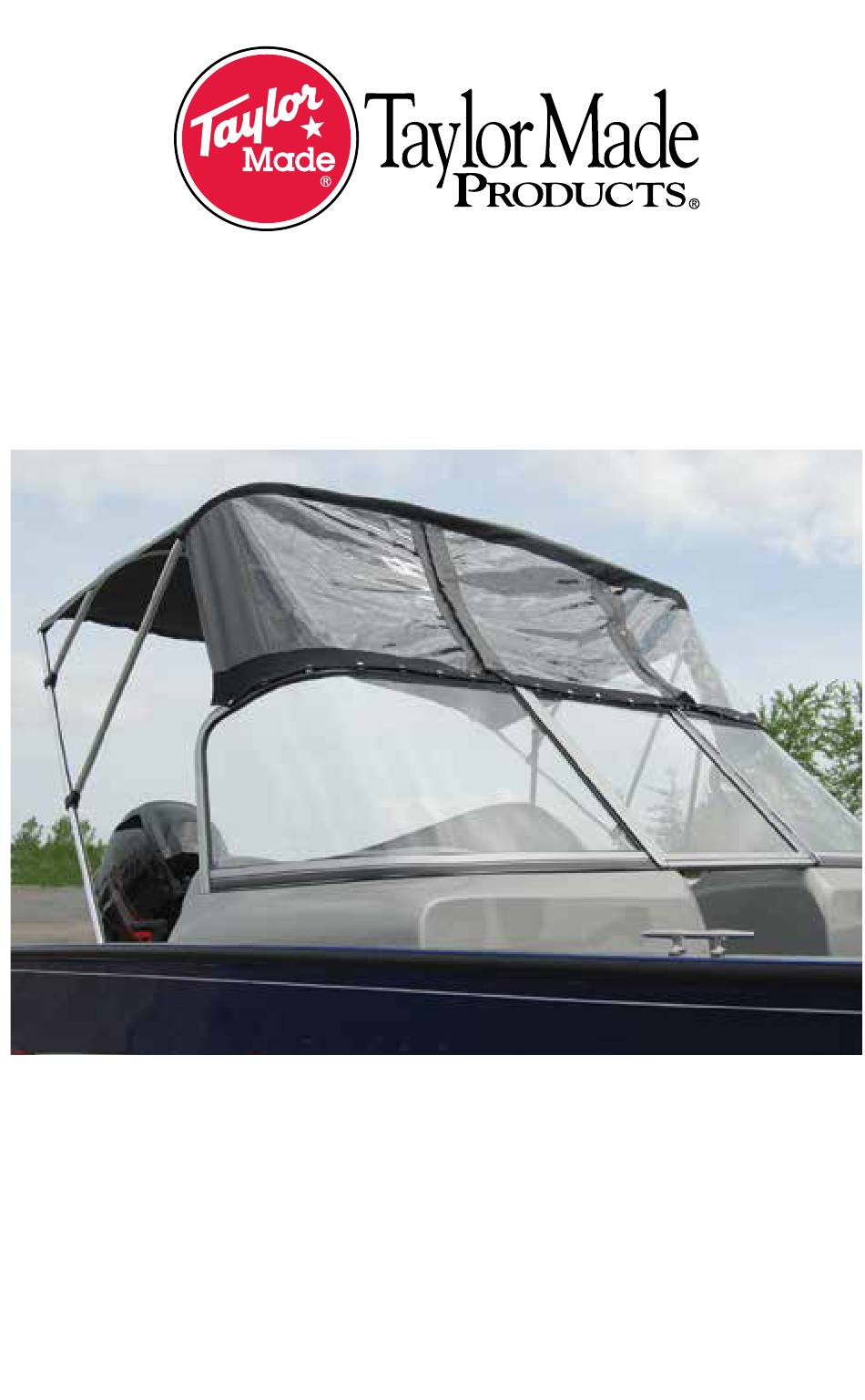

- Page 1 Convertable Binimi Top Assembly and Instruction Guide...
- Page 2 Taylor Made Convertible Bimini Top Assembly and Instruction Guide: This Kit contains the following components: If you are missing any of the listed parts please contact Customer Service at (800)-628-5188 before proceeding with the installation. (1) Sewn Tops and storage boot (2) Hardware bag that includes: a.
- Page 3 Step 1: Attach B & C Bows (Three Bow Tops only) to A Bow Assembly Locate Left Side A Bow and place to workplace with Jawslides facing upward. Remove screws from jawslide temporarily while you place the eye-end of one C Bow into jawslide closest to the large bend in the A Bow – replace screw and tighten.
- Page 4 Step 3: Feeding the Fabric Top onto the Frame Unpack the top itself and lay it out upside down on a clean flat surface. Locate the sewn-in identification label – it should be facing up and to the rear edge of the top.
- Page 5 Step 4: Securing Top to the Boat – Installing windshield Clips - Best to have a helper during this step. Stand up the top on the boat deck. One person should hold the frame and the other should hold the windshield section of the top. Make sure that the fabric skin is centered on the frame and aligned to the boat windshield.
- Page 6 Step 5 Continued With deck hinges in place, remove holding screw and insert eye-end from A-Bow into deck hinge – aligning holes. Replace screw and secure – repeat for other side. Step 6: Install Eye Straps for Tie-Down Straps Pull the Tie-down straps (from rear Bows) toward the stern of the boat, angling away from the back of the top to determine mounting location for the eye straps.
- Page 7 • If top ever develops seam leakage, apply some paraffin wax (like a white candle) to the troublesome area. • Taylor made Products is not responsible for any injuries to persons or damages to boats during the assembly and installation of this product.
- Page 8 Under the terms of this warranty, any Taylor★Made® Bimini BoaTop® found defective 12 months from the date of purchase, will be repaired or replaced, at Taylor Made Products’ option, at no charge. Any Bimini Top proven defective from 13 months to 24 months from the date of purchase will be pro-rated.
