Summary of Contents for Arena Luci AR3333-RGBWA

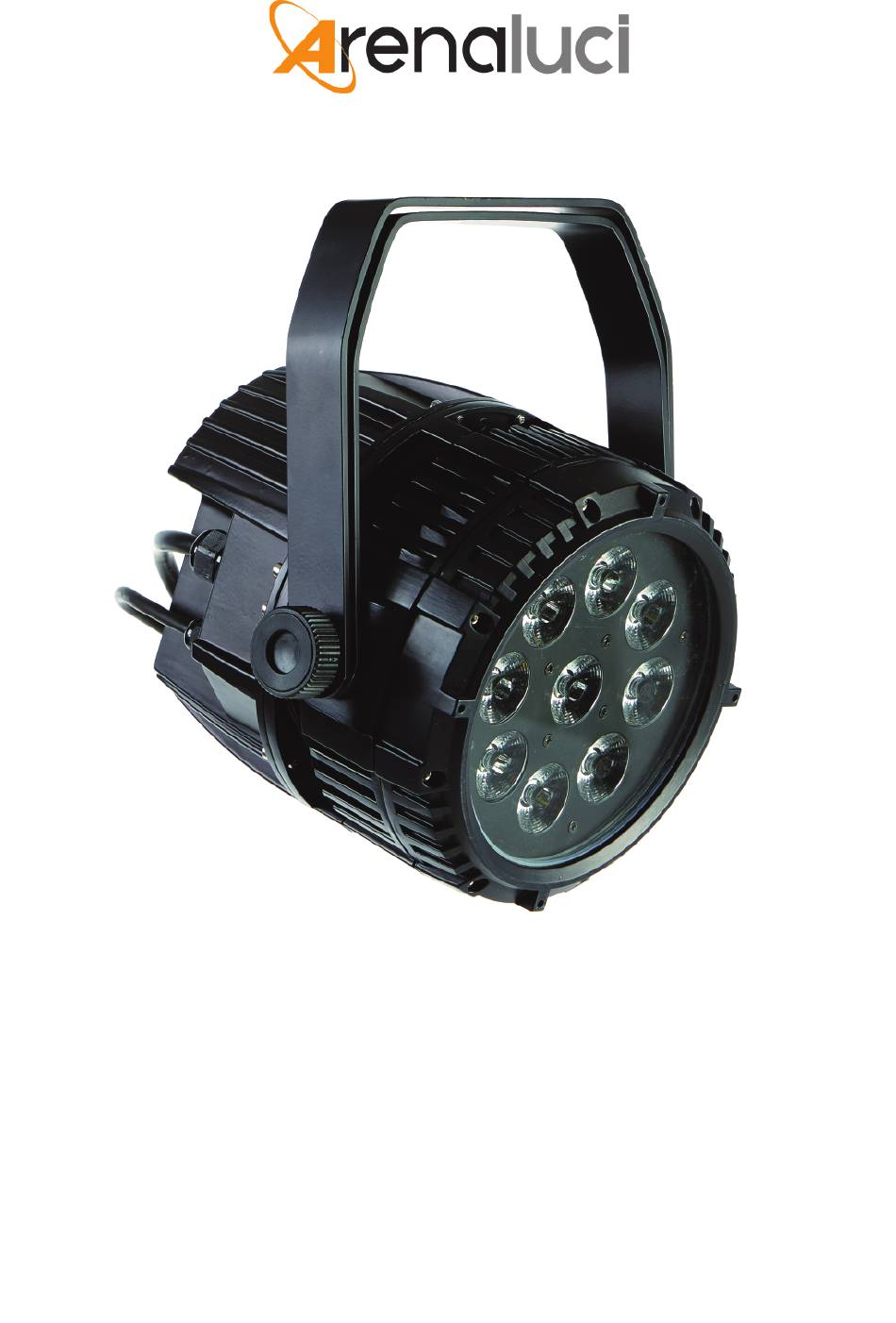

- Page 1 PAR LED RGBWA User's Manual Spot LED RGBWA IP65 with DMX control AR3333RGBWA...
- Page 2 AR3333RGBWA WARNINGS This unit should only be used for purpose for Luci dealer for any operation. which it has been intended and should be Always ensure that the structure to which you are installed using the instructions which are attaching the unit is secure and is able to support provided. Arena Luci cannot be held liable for the weight of each unit. damages to person, animals or objects as a Always ...
-
Page 3: Before Starting
USER'S MANUAL BEFORE STARTING Remove the product from the shipping carton, checking that all the components supplied are present in the box. Refer to the following packing list to check which components must be present in the packaging. If any component is missing or damaged, ... -
Page 4: Power Supply Mains
AR3333RGBWA extension cable must be properly insulated to The projector can also be placed on one flat prevent accidental contact. surface. Loosen the side knob and open the two forks to guarantee a stable support. Adjust the If your installation foresees the power supply of inclination ... -
Page 5: Connecting Control Signals
USER'S MANUAL are not used. A cap must be installed on the output cable of the last projector to prevent contact or infiltration of moisture. Caution It is important that the ground connection of each projector is run according to the rules in force. The power absorption of the projector is 140W. CONNECTING CONTROL SIGNALS Although the projector can be operated via the buttons ... - Page 6 AR3333RGBWA Connection diagram for control with DMX signal recommended to use a DMX terminator. The DMX currently set they are identified by a point on their terminator is simply an XLR connector with a right. For fast forwarding keep the button pressed. resistance of 120Ω (Ohm) between pins 2 and 3. Confirm the setting by pressing the button The connector is then plugged into the DMX OUT ENTER. socket on the last projector in the chain. PROJECTOR ADDRESSES The projector, to be remotely controlled, requires 7 ...
- Page 7 USER'S MANUAL FUNCTIONING 255). Press the UP or DOWN buttons as many After powering up the fixture, the display shows ; times as required to reach the desired intensity then, at the end of the electronic board reset level. For fast forward, press and hold the button. routine, the DMX address is displayed. During the Press ENTER to store the value, or press MENU reset the LED source is kept off.
- Page 8 AR3333RGBWA Option 5 Colored pulses move inside the new submenu with the UP or When the display shows FAd2, press ENTER, the DOWN keys: colored pulse effect is activated (ramp from 0 to CH1, press ENTER to activate the 1 channel 100%) on a series of preset tones and the value mode. ...
-
Page 9: Dmx Channel Functions
USER'S MANUAL dISP, this option allows you to establish whether Channel Strobe to turn off the display during normal operation. The projector is able to generate an electronic Press ENTER, move inside the new submenu strobe effect, obtained by quickly switching the with the UP or DOWN keys: LED source on and off, whatever color is reproduced. ... - Page 10 AR3333RGBWA Channel Green Channel White The intensity of the green source is linearly The intensity of the white source is linearly variable from off to maximum; in particular, for the variable from off to maximum; in particular, for the DMX value equal to 0 the source is turned off, for DMX value equal to 0 the source is turned off, for intermediate increasing values the brightness intermediate increasing values the brightness gradually increases, for the value 255 the green gradually ...
- Page 11 USER'S MANUAL 11/12...
-
Page 12: Technical Specification
AR3333RGBWA TECHNICAL SPECIFICATION Power supply 100÷240 V AC 50 Hz Power consumption 140W max Source 9 LED single chip 5 in 1 Colour Full colour RGBWA. CRI > 80 Luminous flux 7250 lm (output) Beam aperture 35° Control DMX 512, 7 control channels with display Connection Power cable with waterproof connector Material Aluminium and steel plate Colour Epoxy powder paint finish, black Insulation class Weight 5 kg Dimensions 197 x 206 x 197 mm (body) Protection IP65 Ambient Temperature From 20°C to +45°C Suitable to be fitted on normally inflammable surfaces Applied standards AR3333RGBWA ENR1 | 09/2020 WARRANTY CONDITIONS 1194/2012, Energy label 2010/30/UE reg. (UE) The ...
